The TMP6100E automates essential marking functions including serial numbers, time, date, and shift codes. Its fully electric platform enables precise control and consistent results, while seamless PLC and host computer integration simplifies operation. Free software upgrades keep your system current and production-ready.
Unique Dot Peen Technology
PINSTAMP® TMP6100E Electric Dot Peen

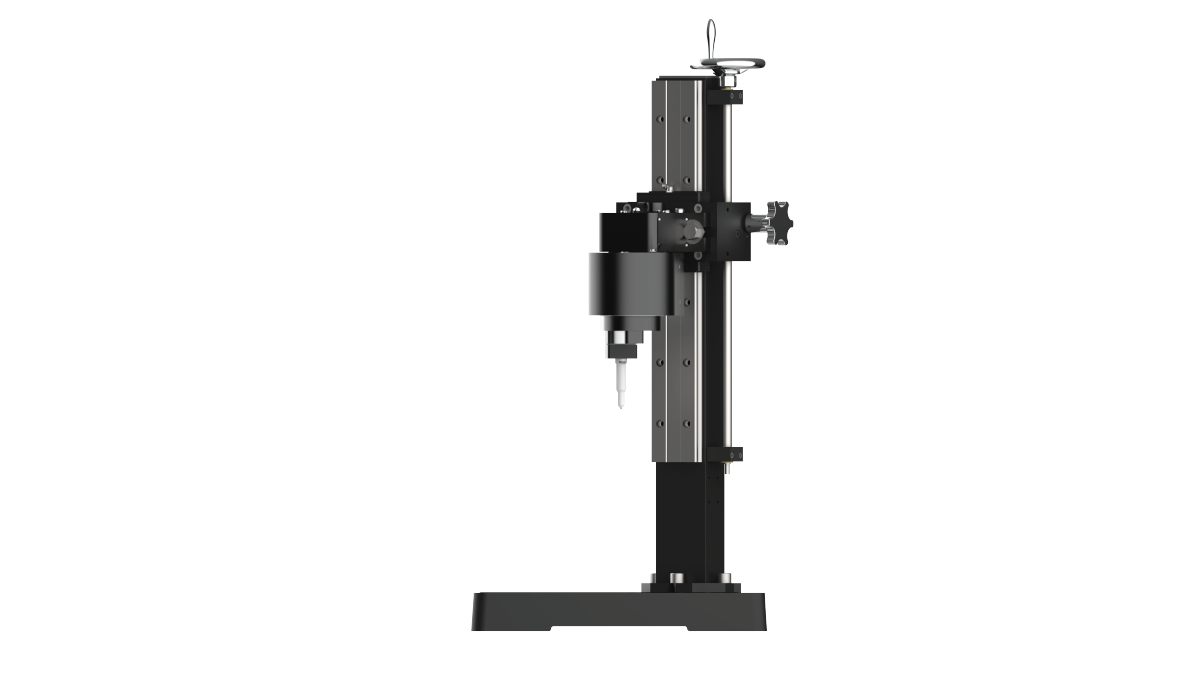

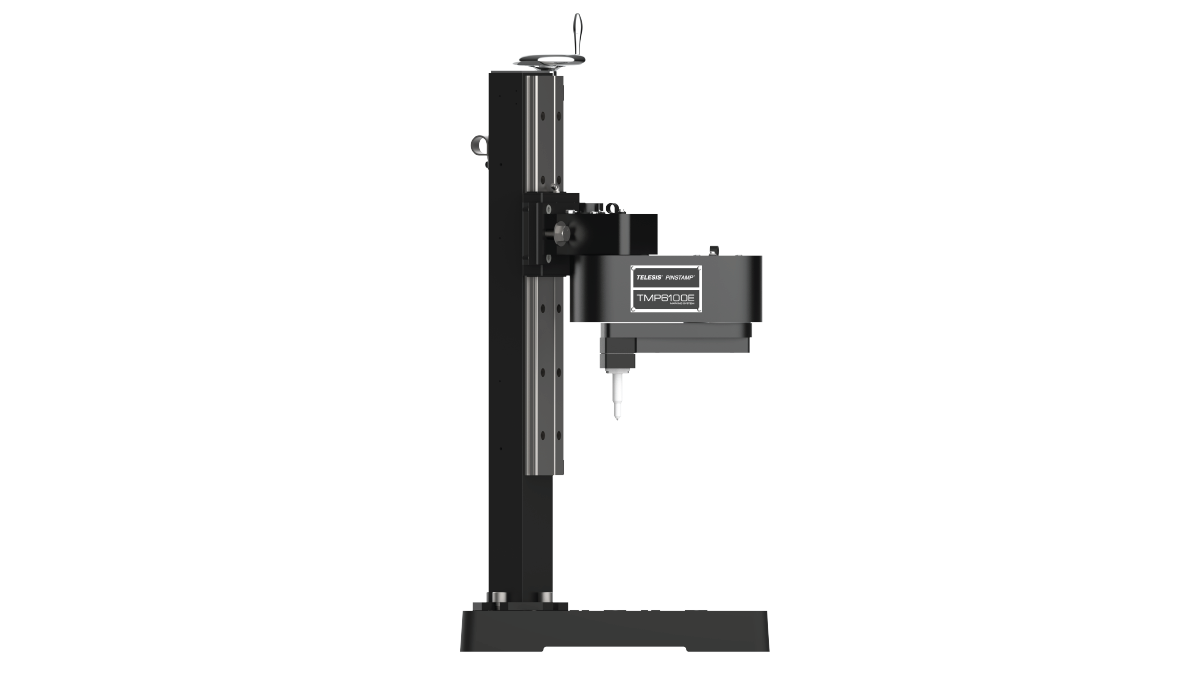

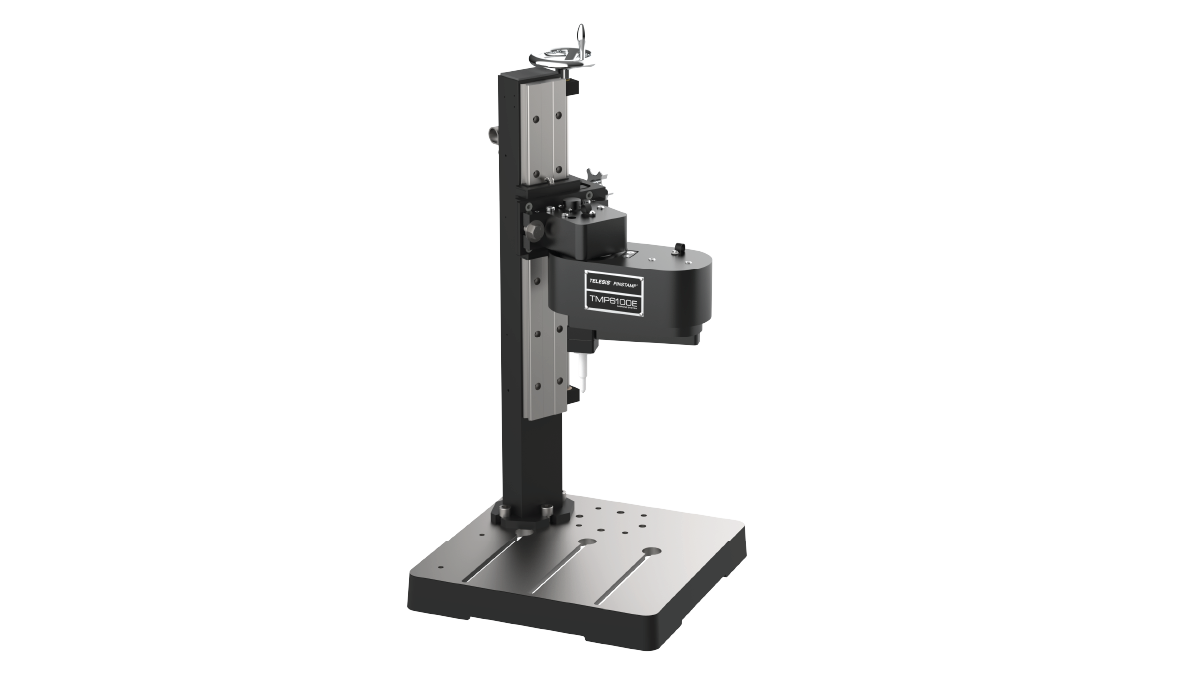

The Telesis PINSTAMP® TMP6100E is a fully electric dot peen marking system redesigned with more rugged construction for reliable performance in demanding industrial environments. By eliminating compressed air, it delivers quieter operation, lower maintenance, and more consistent, high-quality marks. Its robotic design ensures precise marking, especially on cylindrical parts when paired with a rotary device, while the AutoSense motorized Z-axis maintains accurate pin stroke and standoff across varying surfaces.
The TMP6100EAS version adds an electric tool post for programmable pin positioning and increased application flexibility. Built for automation, the TMP6100E integrates easily into manufacturing systems and supports a range of accessories for versatile, high-speed marking.
Request a Quote Download Product Catalog- Rugged, Low-Maintenance Electric Platform: Built with a redesigned, more durable construction and no compressed air requirements for reduced upkeep.

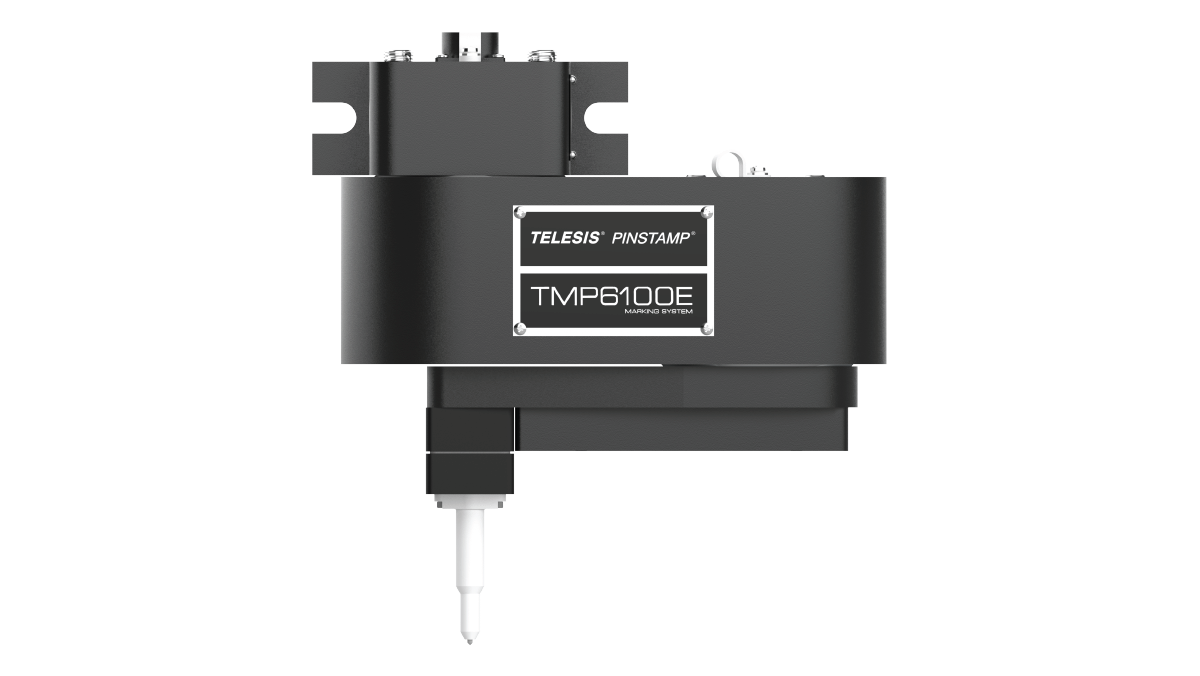

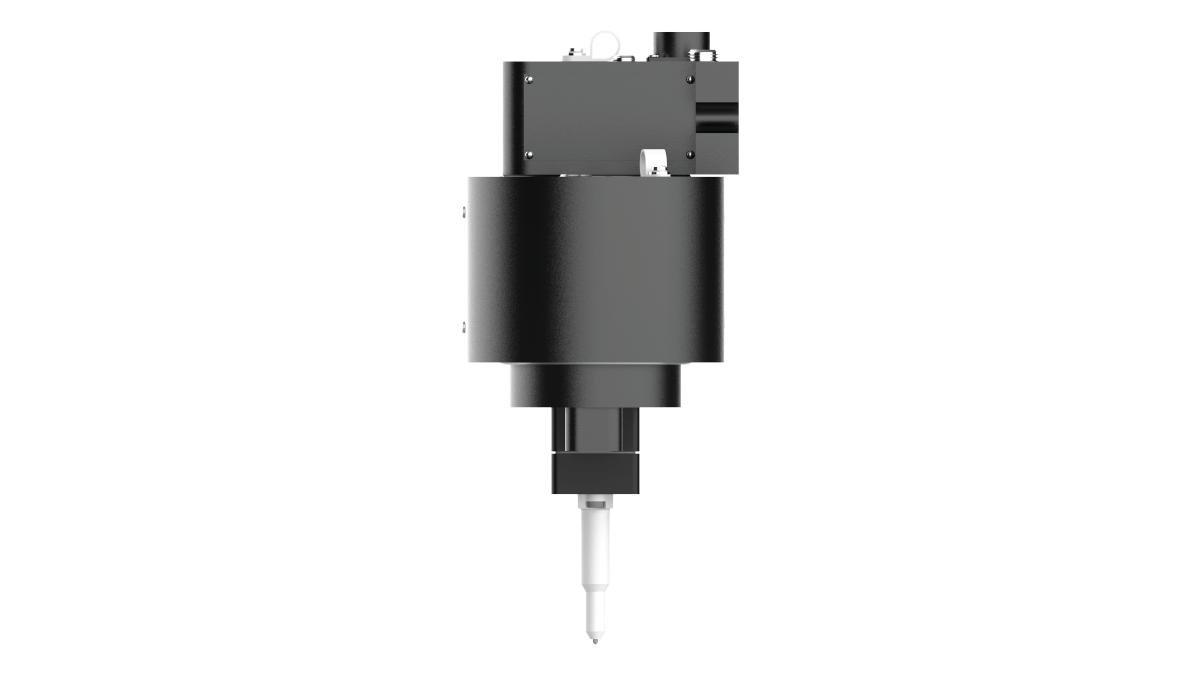

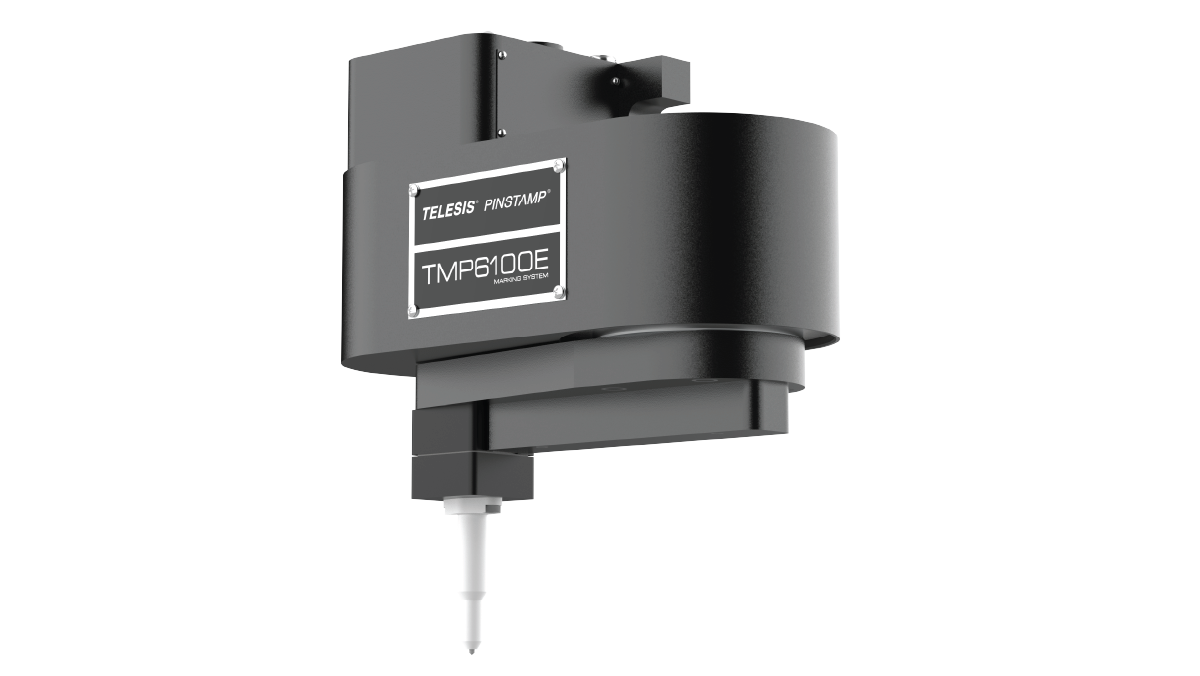

- Compact, Contaminant-Resistant Head: Designed for reliable performance in demanding production environments.
- Material Versatility: Marks a wide range of materials, including plastics and hardened steel up to RC60.
- Easy Integration: Seamlessly interfaces with PLCs and host computers for efficient automation.
- Interchangeable Marking Pins: Adjustable marking depth from 0.001″ to 0.018″ (0.03 mm to 0.34 mm) for application flexibility.
- Precision Electric Pin Control: Delivers consistent, repeatable marks with improved accuracy and reduced noise compared to pneumatic systems.
- AutoSense Motorized Z-Axis: Maintains consistent pin stroke and standoff across uneven surfaces.
- Automated Marking Functions: Automatically generates serial numbers, time, date, and shift codes.
- Bar Code Scanner
- Foot Switch
- Marking Head Extension Cables
- Mounting Post
- Push Button Station
- Rotary Fixture
- System Computer
- Touch Screen Controller
- Various Marking Pins
Applications
Specs
Marking Area
12 in x 6 in
304 mm x 152 mm
Material Compatibility
Soft plastics to hardened steel (up to RC60)
Marking Depth
0.001 – 0.018 in
0.03 – 0.34 mm
Connectivity
PLC, host computer interface
Controller(s)
TMC470 (Fixed Button)
Merlin III w/ PC
Available Models
TMP6100E
TMP6100EAS (auto tool post)
Deliver Sharp, Reliable Marks with the Telesis TMP6100E
The Telesis PINSTAMP® TMP6100E is a premium, fully electric dot peen marking system engineered for precision and durability in demanding manufacturing environments. Redesigned with more rugged construction, it delivers sharp, consistent marks while eliminating the need for compressed air, reducing maintenance and improving overall efficiency.

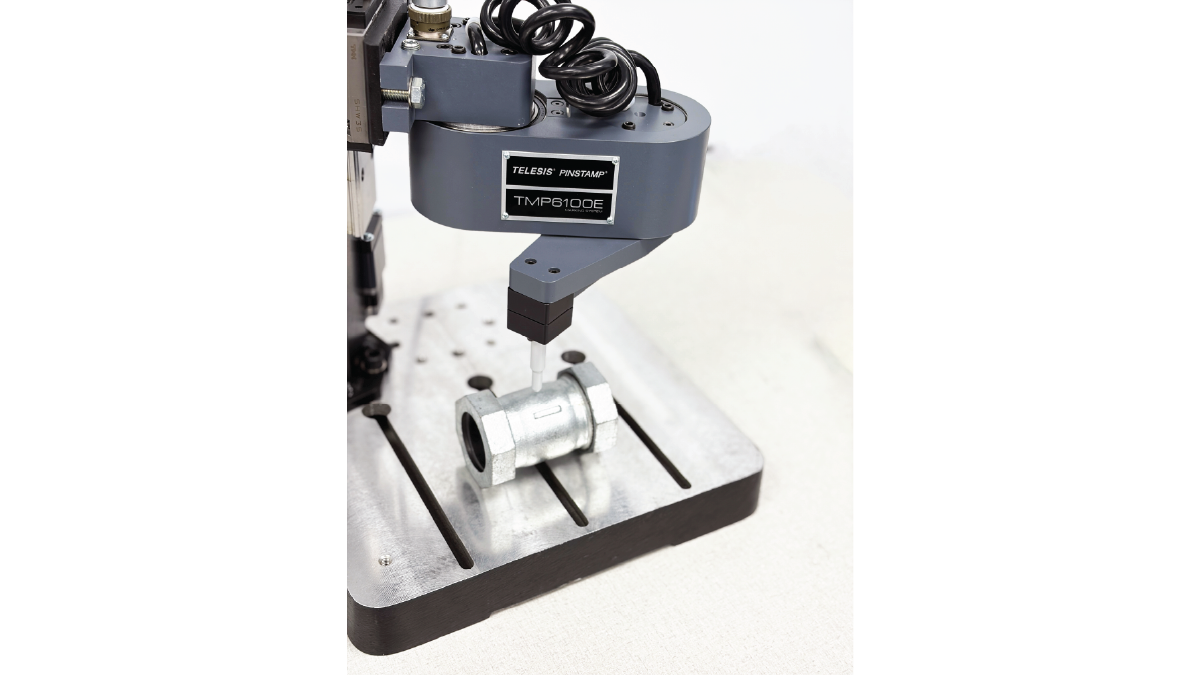

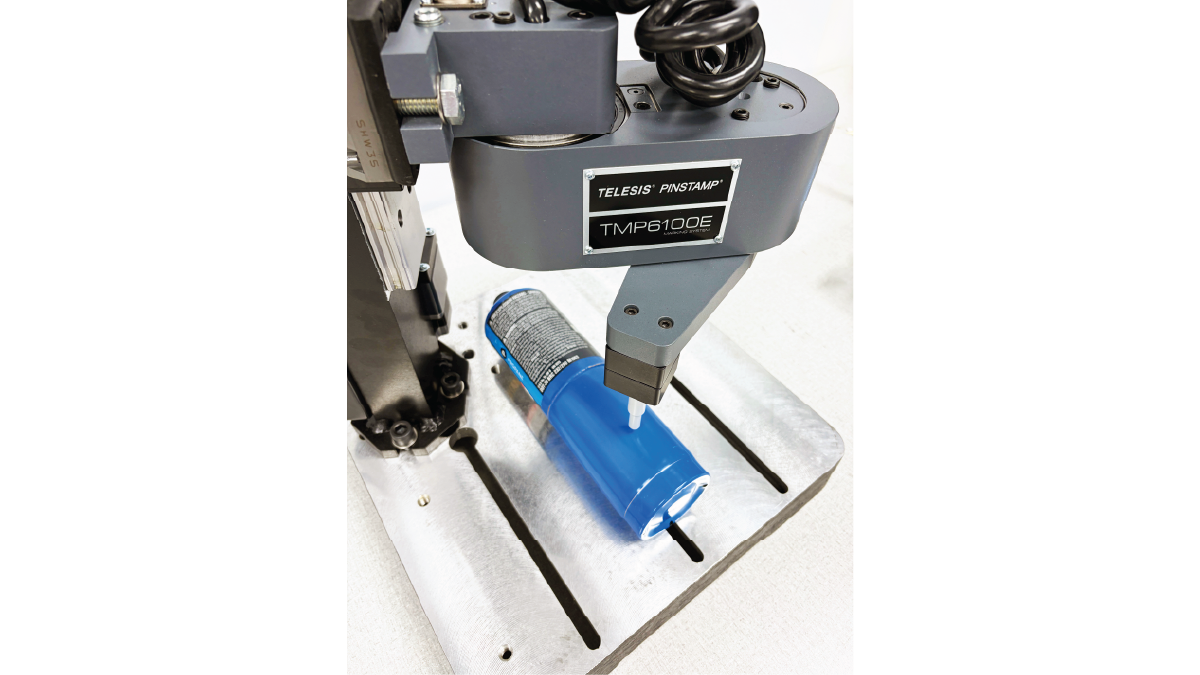

With its robust, robotic design, the TMP6100E excels across a wide range of materials and is especially effective for cylindrical marking when paired with a rotary device. This capability enhances production efficiency while maintaining high-quality, permanent traceability.
An AutoSense motorized Z-axis (TMP6100EAS) ensures consistent marking depth and accurate standoff, automatically adjusting to surface variations and minimizing operator intervention. Combined with advanced Telesis control technology and seamless automation integration, the TMP6100E provides a reliable, high-performance solution for modern production environments.

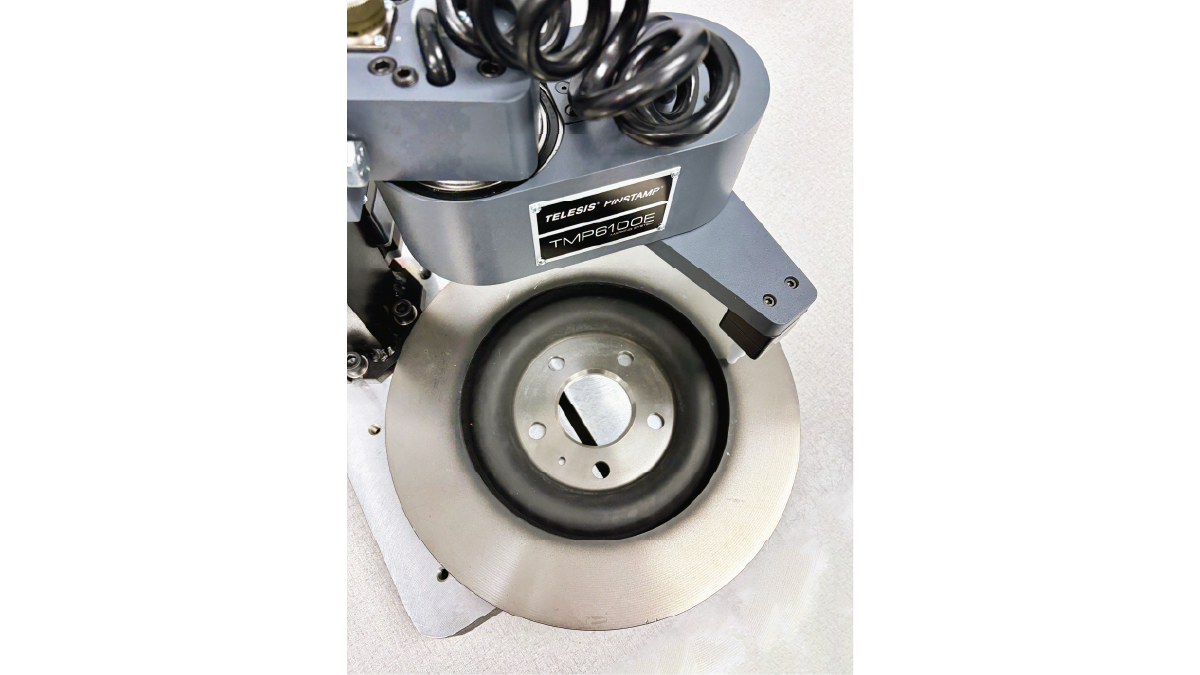

The Telesis TMP6100E is built for marking large parts and excels in cylindrical applications when paired with a rotary fixture. Its fully electric platform delivers precise, consistent marking without compressed air, while the programmable AutoSense motorized Z-axis ensures accurate pin stroke and critical standoff distance. Designed for automation, it integrates seamlessly into factory networks to improve efficiency and throughput.
Engineered with rugged, industrial-grade construction, the TMP6100E is built to perform in the harshest manufacturing environments. Its fully electric platform eliminates compressed air while delivering consistent, high-quality marks across materials from soft plastics to hardened metals. A range of interchangeable pins supports diverse applications, and the TMP6100EAS version adds an electric tool post for expanded flexibility.
The TMP6100EAS expands the capability of the TMP6100E with an electric tool post that enables precise, programmable pin positioning for more complex marking applications. Its fully electric operation supports quieter performance and tighter control, while interchangeable pins ranging from 0.001 to 0.018 inches allow for both fine detail and deeper marks across a variety of materials. Capable of marking up to two characters per second, the system maintains accuracy at speed. Integrated automation features such as serializing, date and time stamping, and shift coding further streamline production, making it well-suited for high-mix, traceability-driven environments.
The TMP6100E is built for seamless integration into automated manufacturing environments, with straightforward PLC and host computer interfacing that simplifies deployment. It supports IP/NEMA-rated controllers, panel-mount configurations, and ongoing software upgrades to keep your system current. Designed for flexibility, the system accommodates programmable Z-axis mounting, rotary fixtures for cylindrical parts, and high-resolution marking up to 200 dpi, making it well-suited for aerospace, automotive, and general manufacturing applications.
