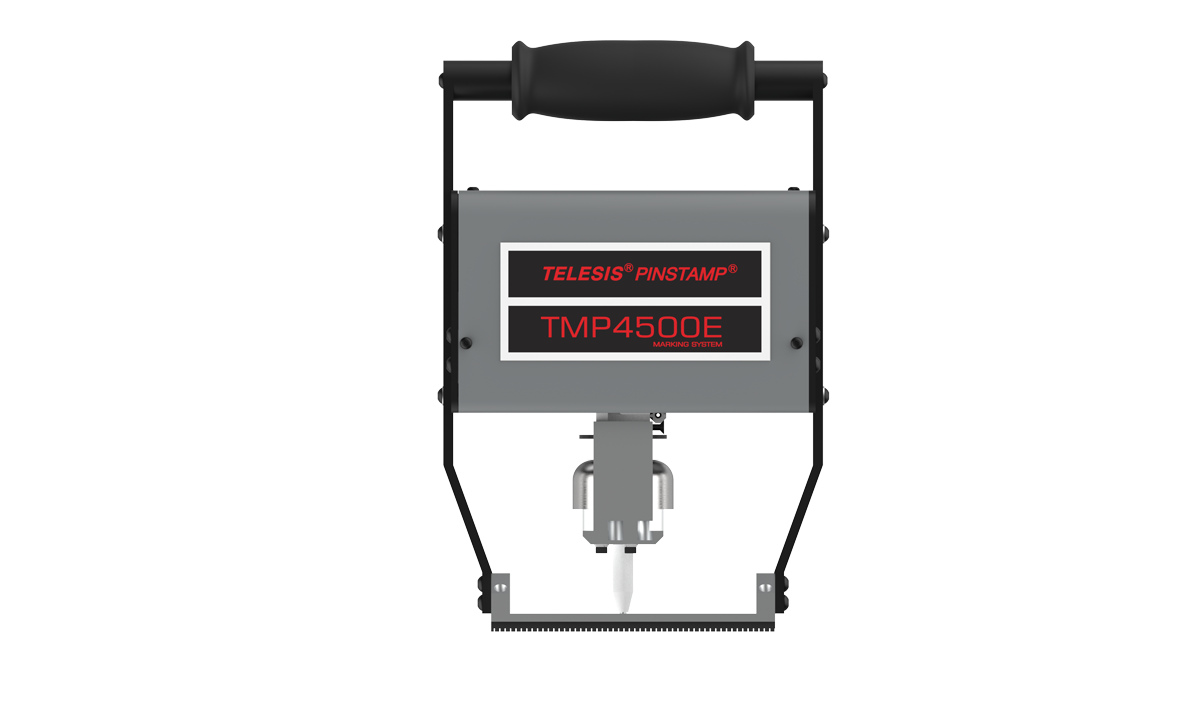

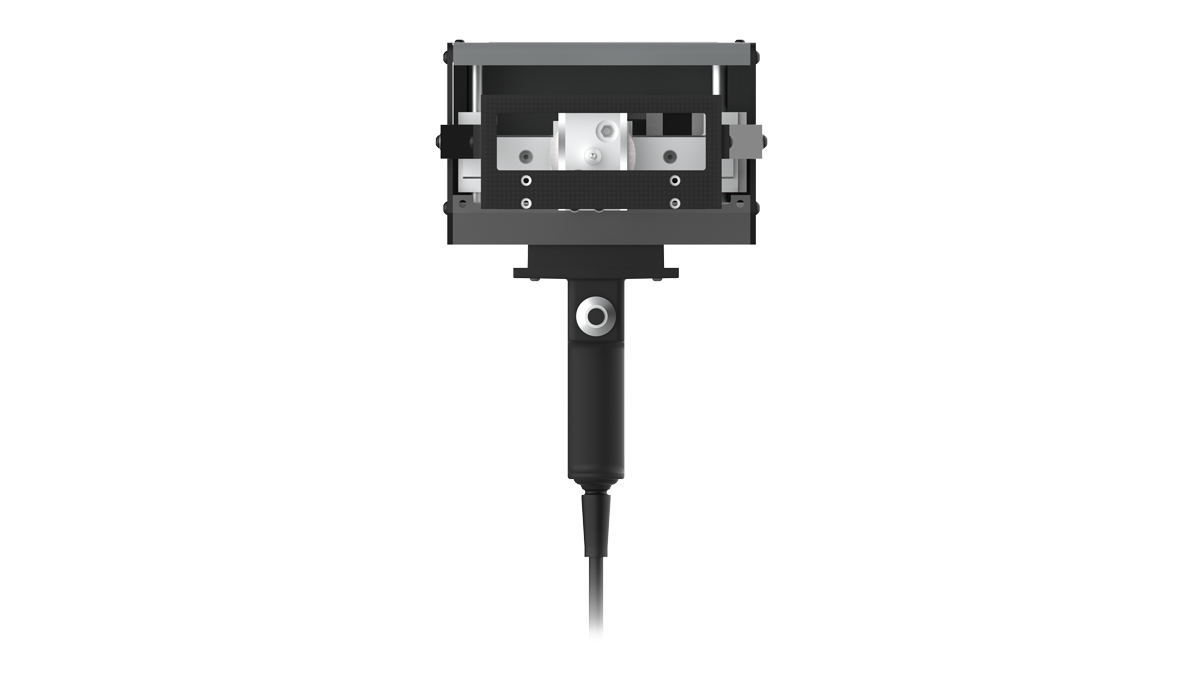

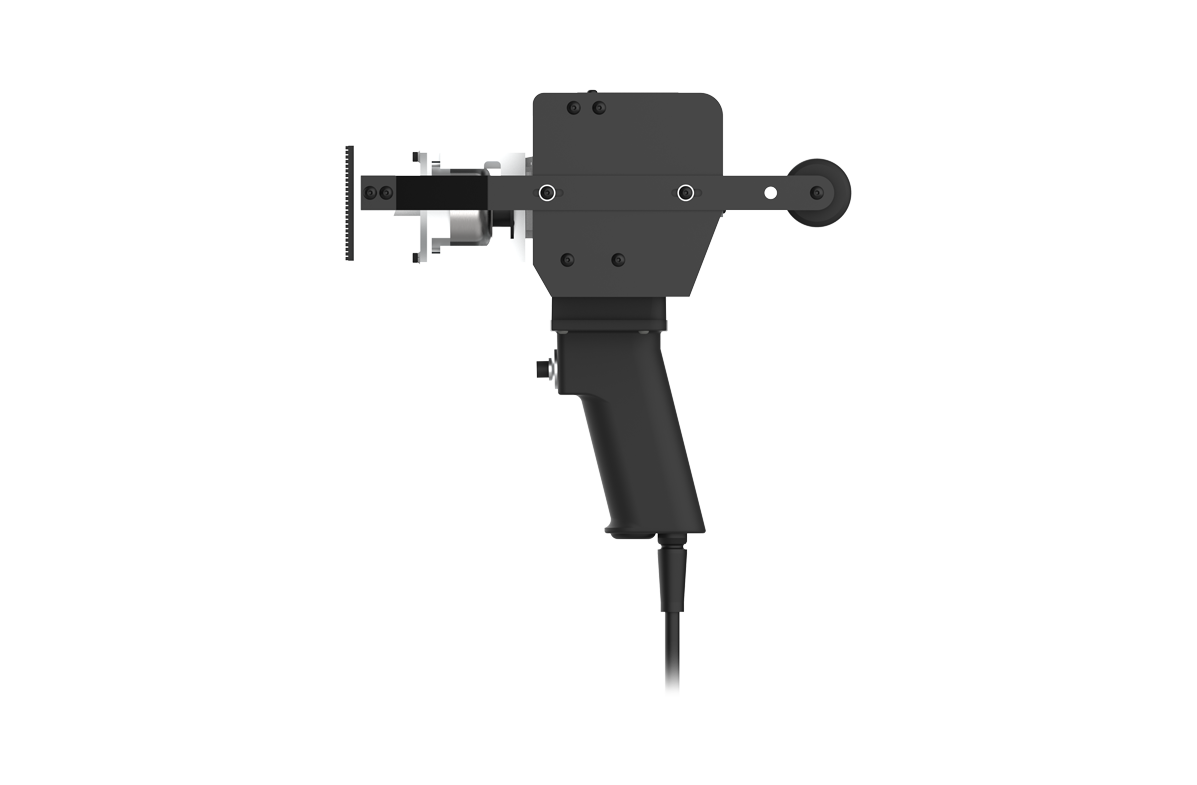

Handheld Dot Peen Marking Machine

A powerful piece of handheld equipment, this dot peen marker eliminates the need for air. The TMP4500E makes deep marks, and is easy to hold.

Request A Quote
Download Product Catalog
  • 1″ x 4″ (25.4mm x 101.6mm) marking window
  • Rugged, low-maintenance rack and pinion driven X/Y platform

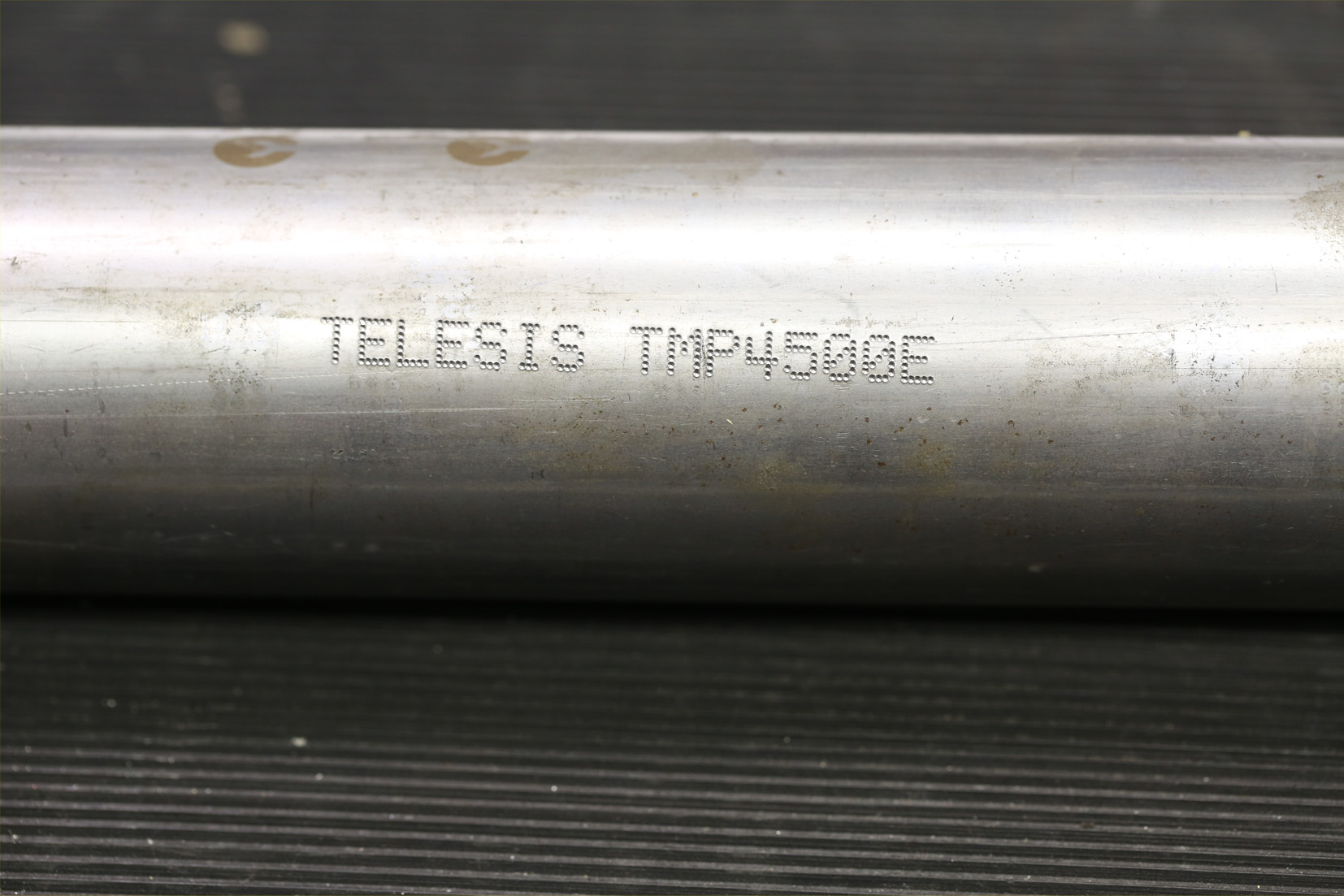

  • Marks a wide range of materials from soft plastics to hardened steel — up to Rc60
  • Double strike feature allows dot to be marked twice when additional depth is an issue
  • Shutter assembly protects marking head from solid contaminants
  • Available with 2 controllers:
    • Self-Contained, state-of-the-art TMC470 controller features two serial ports, USB port, and Ethernet port.
    • Self-Contained, state-of-the-art TMC600 controller features a durable touchscreen and an intuitive user interface, Merlin Touch software
  • Dot density up to 200 dots-per-inch (79 dots-per-centimeter)
  • Choice of interchangeable marking pin types for depths from 0.001″ – 0.018″ (0.03mm – 0.45mm)
  • Pin travel accommodates surface irregularities to 0.25″ (6mm)

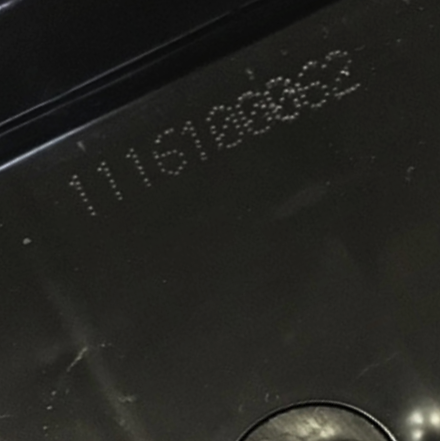

  • Automatically generates serial numbers, time, date and shift codes
  • Easily interfaced to PLCs (Programmable Logic Controllers) and Host Computers
  • Rotary fixtures for marking circumferences of cylindrical parts
  • Marking head mounting post, including programmable Z-axis version
  • Quick disconnect marking head mounting post for a handheld version
  • Panel-mount and IP/NEMA Rated Controllers
  • PC-Based Upgrade Utility available FREE from www.telesis.com for easy software upgrade
