PINSTAMP® TMP1700 Dot Peen


The Proven Industrial Workhorse – TMP1700

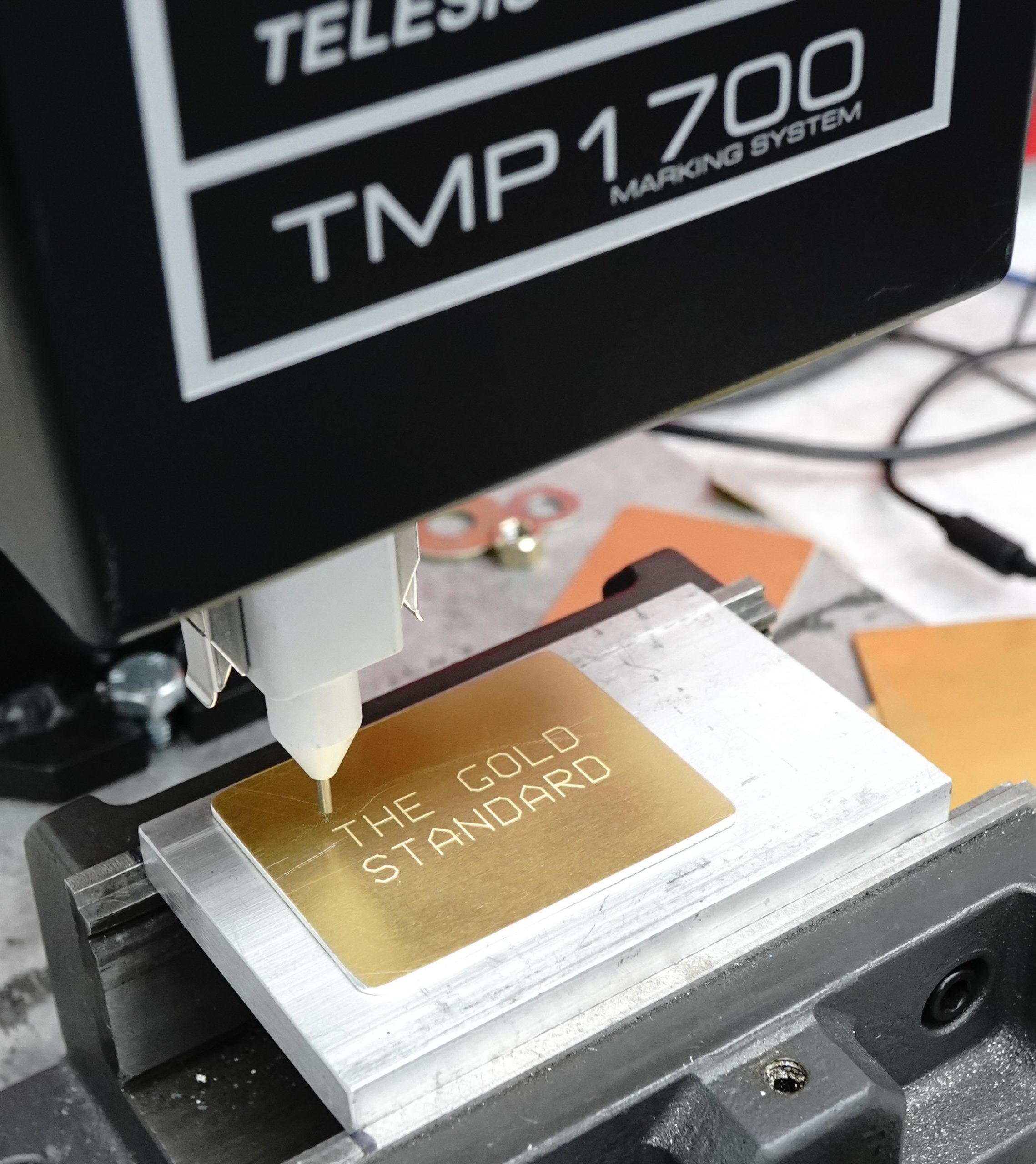

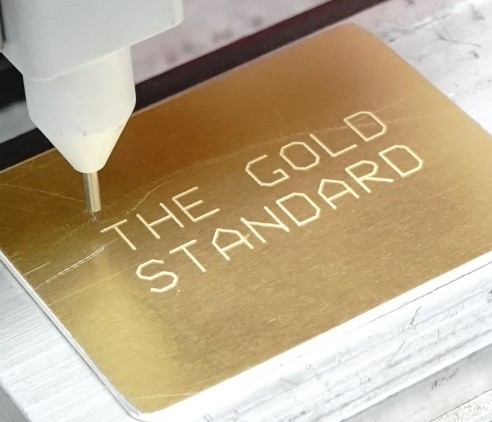

The Telesis PINSTAMP® Dot Peen machine is a proven industrial workhorse and industry staple that continues to impress. The rugged, low-maintenance X/Y platform has a compact and contaminant-resistant head design that can mark a wide range of materials from soft plastics to hardened steel (rc60). Interchangeable pin sizes create marking depths of 0.001 in – 0.018 in (0.03 mm – 0.45 mm) and the floating pin technology accommodates surface irregularities up to 0.25 in (6 mm).

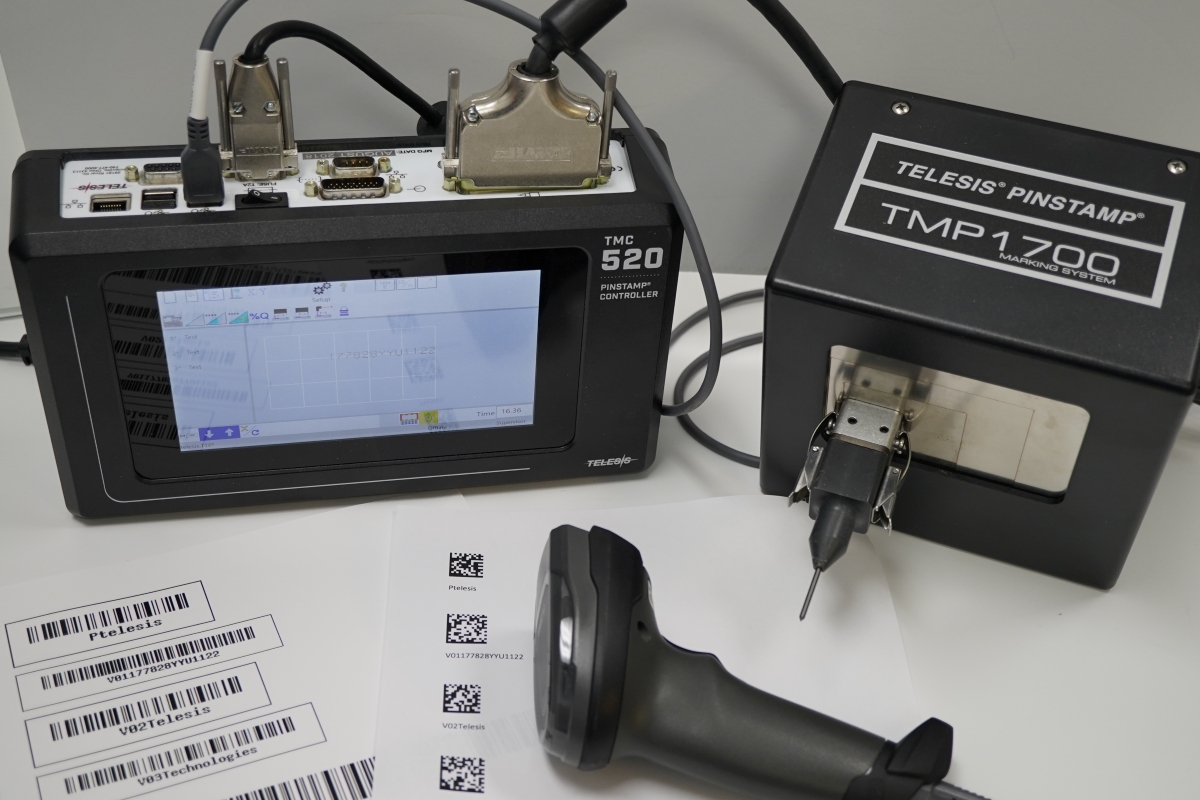

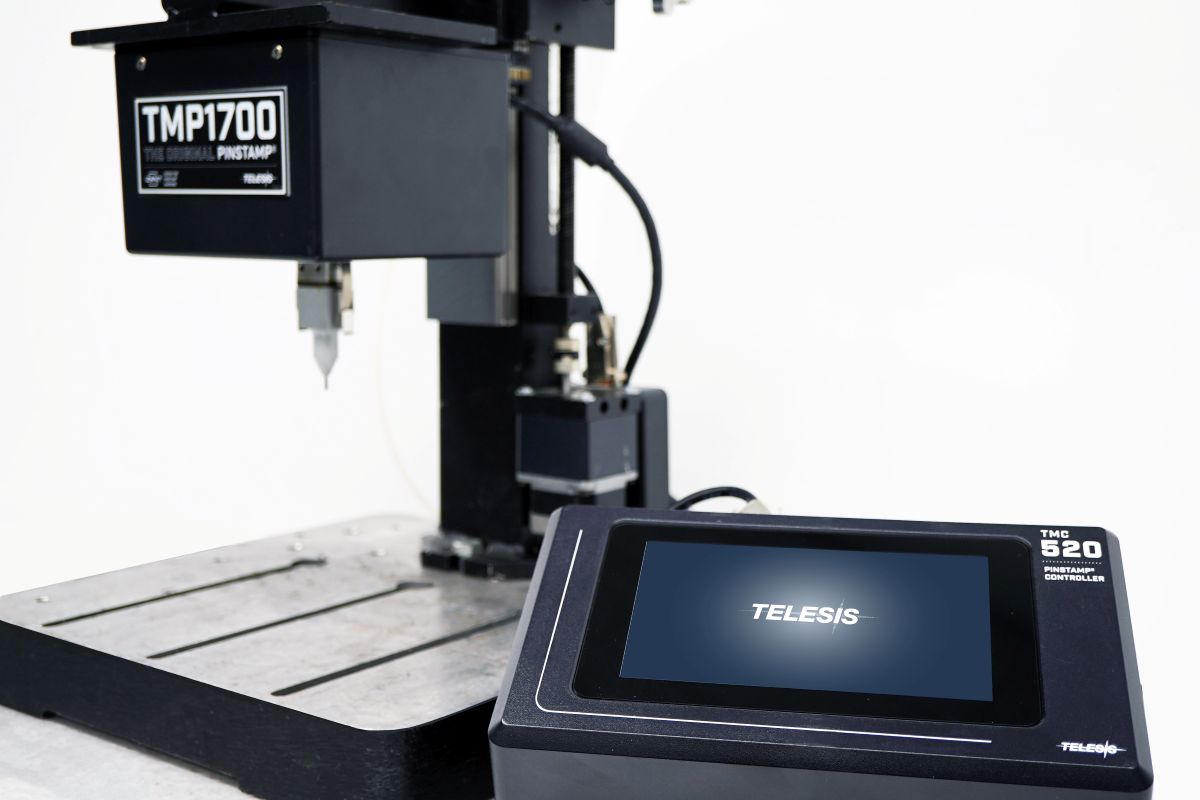

Paired with the TMC520 Touchscreen Controller and iZONIT™ Vision Technology, the TMP1700 becomes to most advanced dot peen marker in the industry.

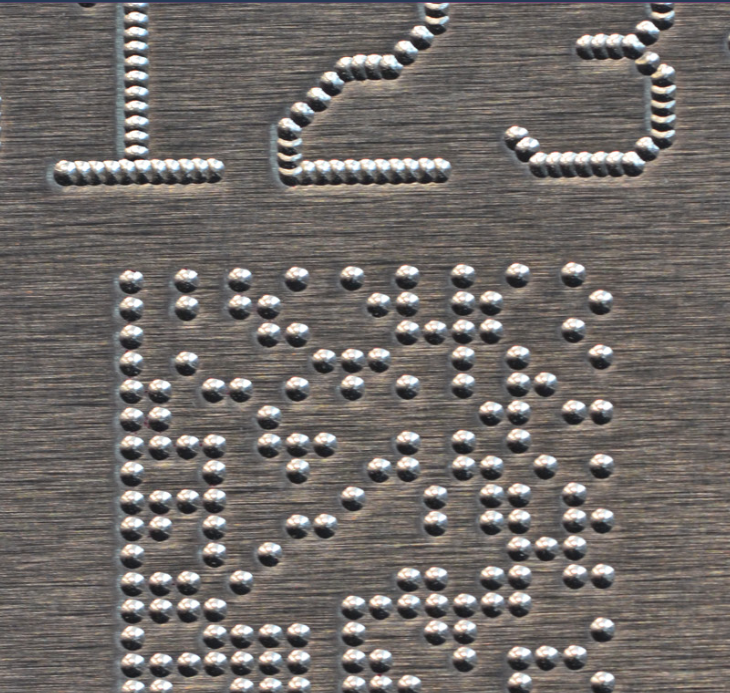

  • Dot Density: Up to 200 dots-per-inch (79 dots-per-centimeter)
  • Choice of interchangeable marking pins: .001 in – .018 in (0.03 mm – 0.34 mm) Marking speeds up to six characters per second
  • Automatically generates serial numbers, time, date, and shift codes
  • Store up to 400 marking patterns
  • Easily interfaced to PLCs and host computers
  • Rotary fixtures for marking circumferences of cylindrical parts

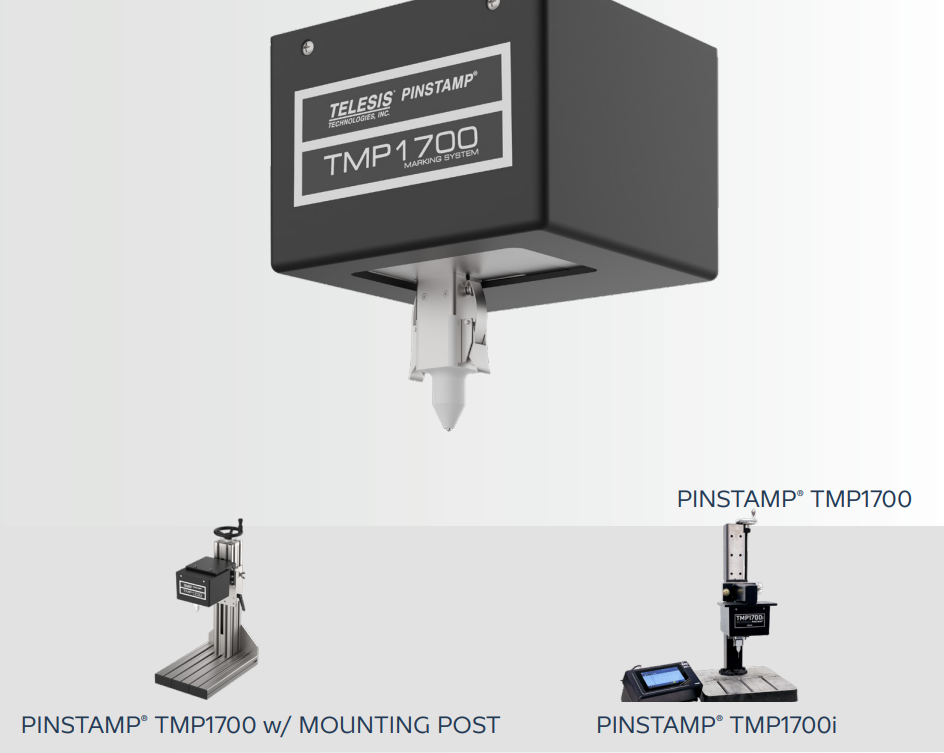

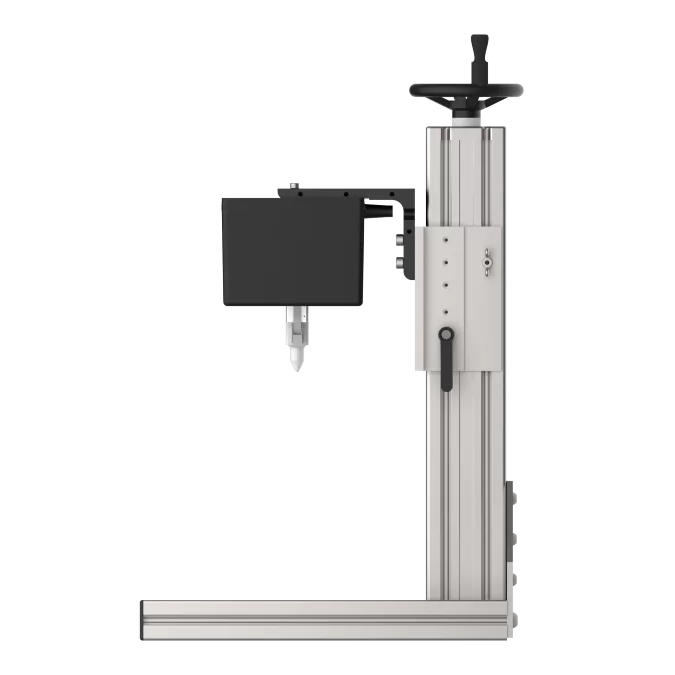

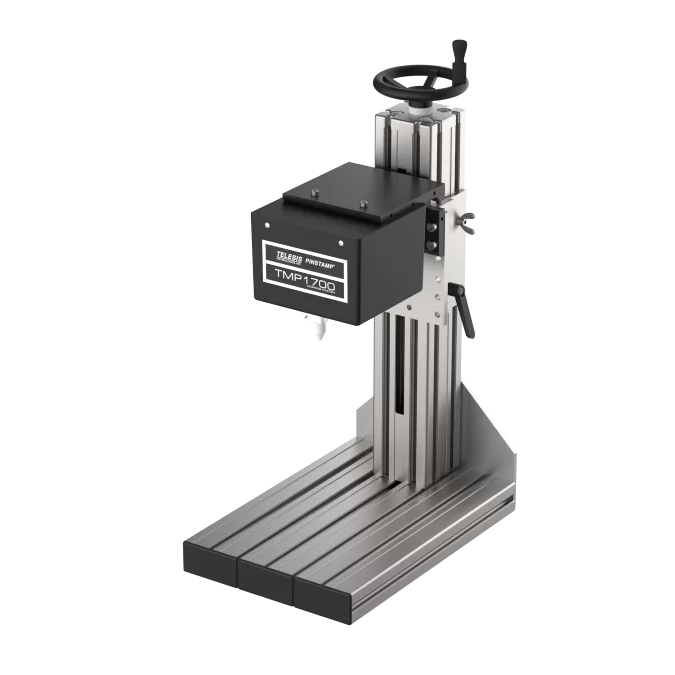

  • Marking head mounting post, including programmable Z-axis
  • Panel-mount and IP/NEMA rated controllers
  • Easy and free software upgrades
