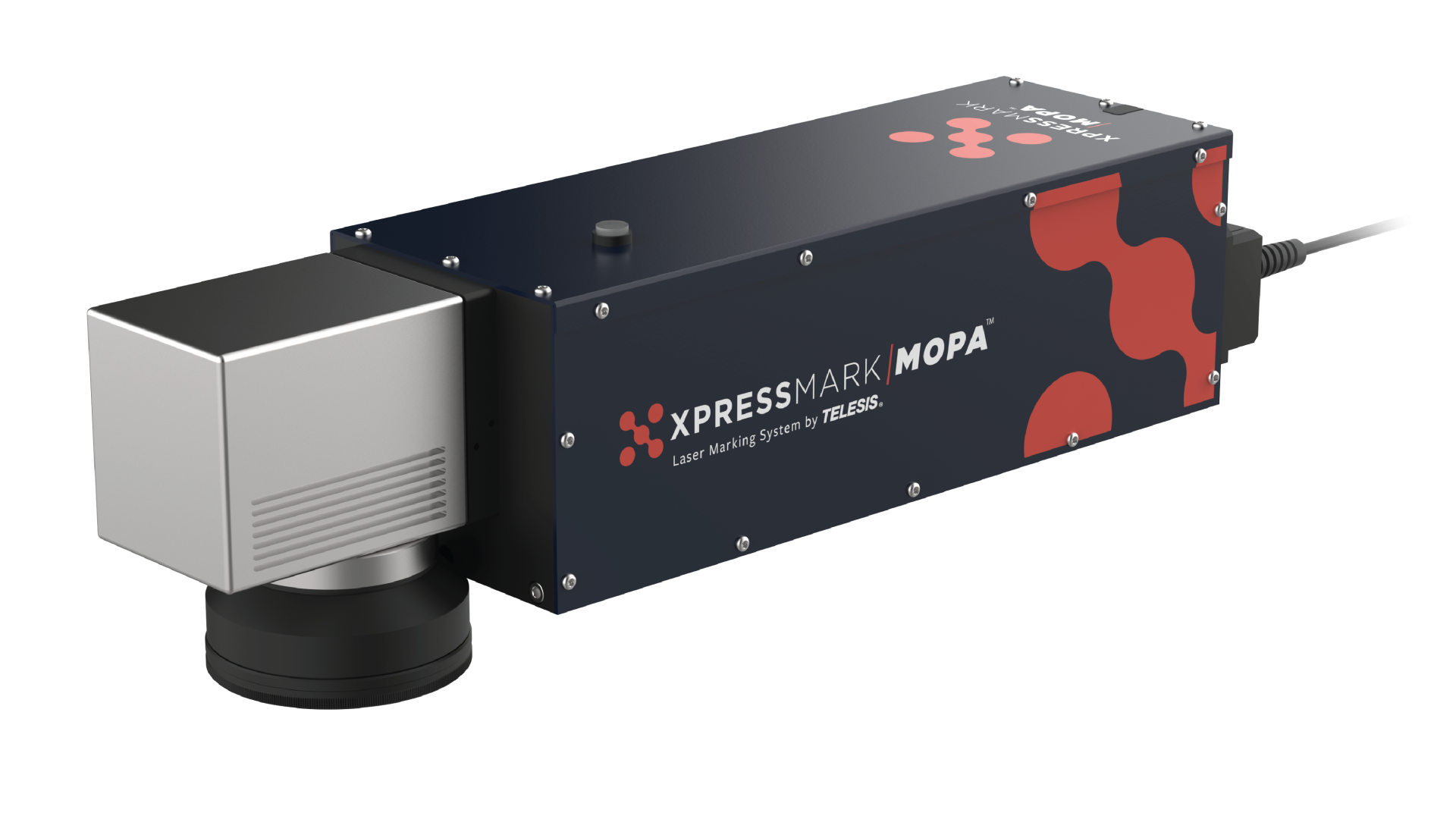

The Telesis XpressMark MOPA™ sets the standard for precision, flexibility, and seamless integration. This advanced fiber laser marker delivers crisp, permanent marks on both stationary and moving parts, with exceptional beam quality for intricate designs and small details. Available in embedded and non-embedded configurations, it excels as a stand-alone system or part of a production line, offering unmatched versatility for nearly any marking application.
Marks the Most
XpressMark MOPA™
XpressMark MOPA™ combines the reliability of the XpressMark™ line with adjustable pulse-width control for faster cycle times, higher-contrast results, and broader material compatibility. AutoFocus™ ensures perfect focal alignment for every part, while Vari-Z™ seamlessly accommodates height changes without recalibration. Optional InLine Vision enables code reading and verification in-process—all within a compact, industrial-grade system built for precision, speed, and flexibility.
Request a Quote Download Product CatalogHIGH-PERFORMANCE MOPA POWER
XpressMark MOPA sets a new benchmark in laser marking innovation. Powered by advanced MOPA (Master Oscillator Power Amplifier) technology, this system delivers unmatched flexibility and control. From deep engraving to vibrant color marking on stainless steel, XpressMark MOPA achieves exceptional contrast, precision, and permanence across a wide range of materials. Its superior beam quality and adjustable pulse parameters make it ideal for both delicate surfaces and industrial-grade metals.
BUILT FOR RELIABILITY
Engineered by Telesis, a trusted leader in laser marking technology, the XpressMark MOPA is built to perform in the most demanding production environments. Every component reflects our commitment to precision, durability, and longevity. With minimal maintenance and proven uptime, the XpressMark MOPA keeps your operation running efficiently—maximizing productivity and minimizing costly interruptions.
EASY SETUP. INSTANT RESULTS.
The XpressMark MOPA is designed for quick deployment and effortless operation. Its intuitive configuration and plug-and-play design mean you can be up and running in minutes—not hours. Streamlined software integration and intelligent controls give your team the power to achieve consistent, high-quality marks from day one.
FLEXIBLE INTEGRATION
Compact, capable, and compatible—the XpressMark MOPA fits seamlessly into any production line. With industry-standard communication protocols and a small footprint, it integrates easily with automated systems and workstations. Whether you’re upgrading an existing process or building a new one, the XpressMark MOPA delivers the performance, versatility, and dependability that define Telesis.
Great for marking:
- Aluminum
- Plastics
- Cold Rolled Steel
- Stainless Steel
- Brass
- Titanium
- Auto-Focus™
- Ethernet IP
- Fume Extraction System
- Mark-on-the-Fly Ready
- Profinet
- Programmable Mounting Post
- Rotary Axis Fixture
- Teleview™ Code Reading
- Vari-Z™

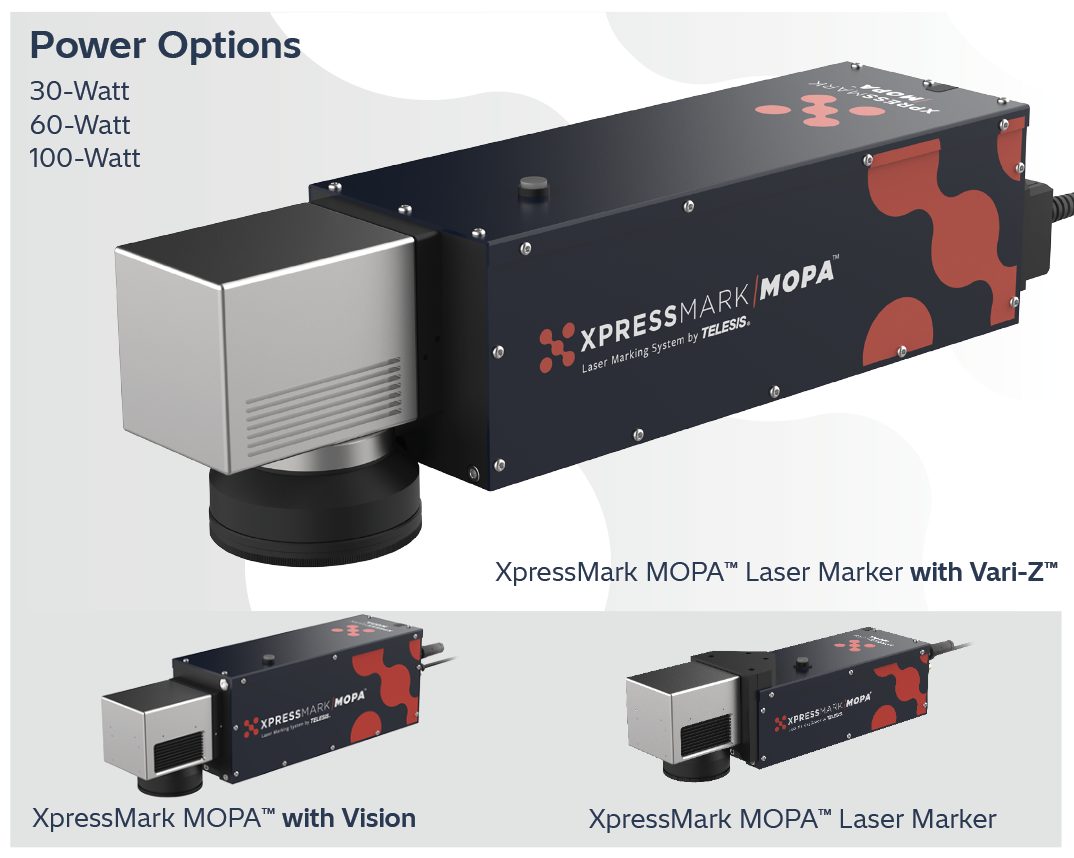

- XpressMark MOPA 30W Fiber Laser Marking Machine
- XpressMark MOPA 60W Fiber Laser Marking Machine
- XpressMark MOPA 100W Fiber Laser Marking Machine
- Optional E/IP, Profinet communications capability
- Optional Mark-On-The-Fly capability
Applications
Data Matrix Codes
XpressMark
XpressMark
Laser Marking
Laser Marking

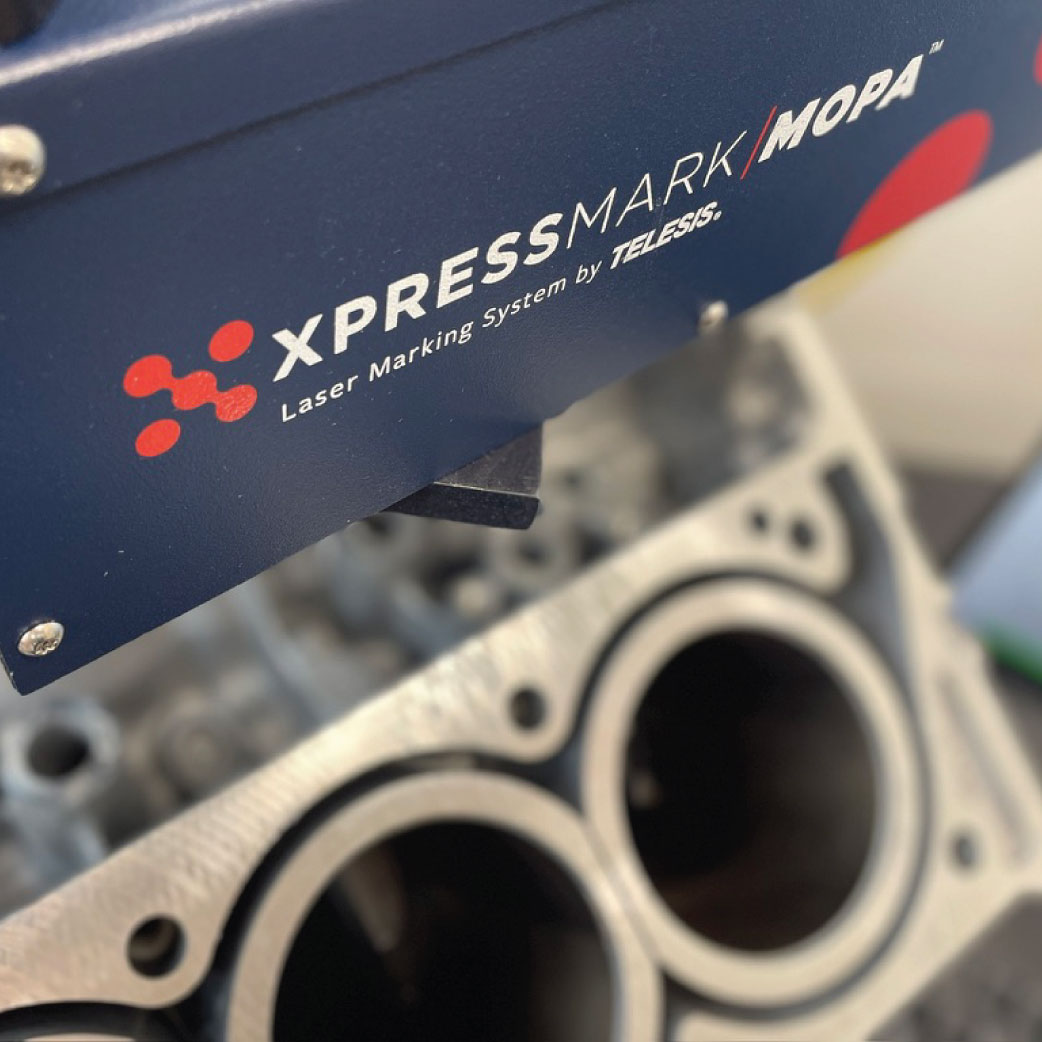

Serial Mark on Metals
Fine Measurements Marks
EV Batteries
Specs
Lens Marking Area
F160: 4.33" x 4.33" (110 mm x 110 mm)
F163: 4.33" x 4.33" (110 mm x 110 mm)
F254: 6.89" x 6.89" (175 mm x 175 mm)
F254*: 6.89" x 6.89" (175 mm x 175 mm)
F380: 9.84" x 9.84" (250 mm x 250 mm)
F420: 11.81" x 11/81" (300 mm x 300 mm)
F470: 13.78" x 13.78" (350 mm x 350 mm)>*
Note: Vision Heads use F160 and F254 standard lenses
Lens Working Clearance
F160: 181 mm
F163*: 185 mm ± 16 mm
F254: 292 mm
F254*: 296 mm ± 39 mm
F380: 407 mm
F420: 435 mm
F470: 490 mm
*Denotes lenses available for Vari-Z heads
Note: Vision Heads use F160 and F254 standard lenses

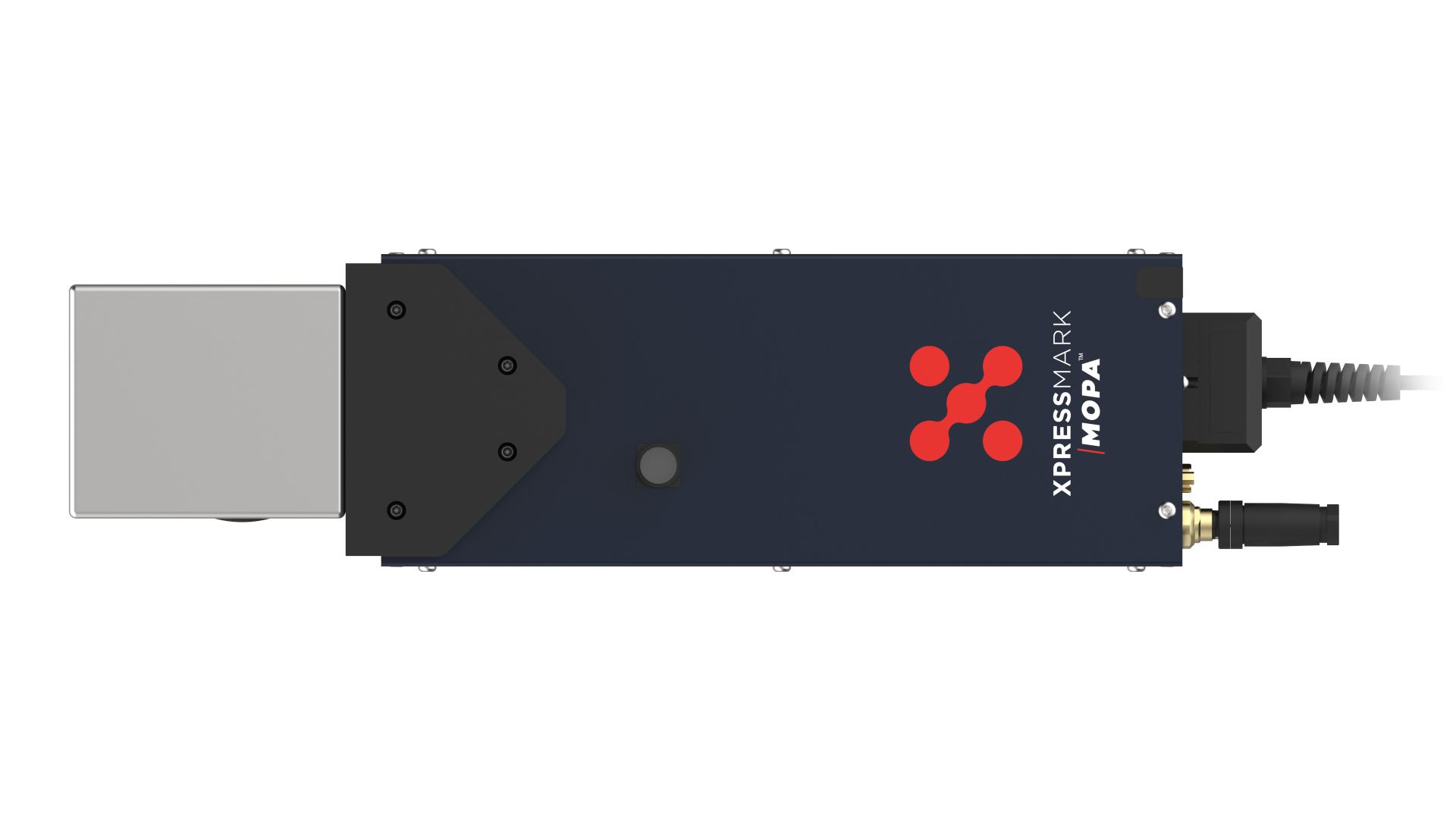

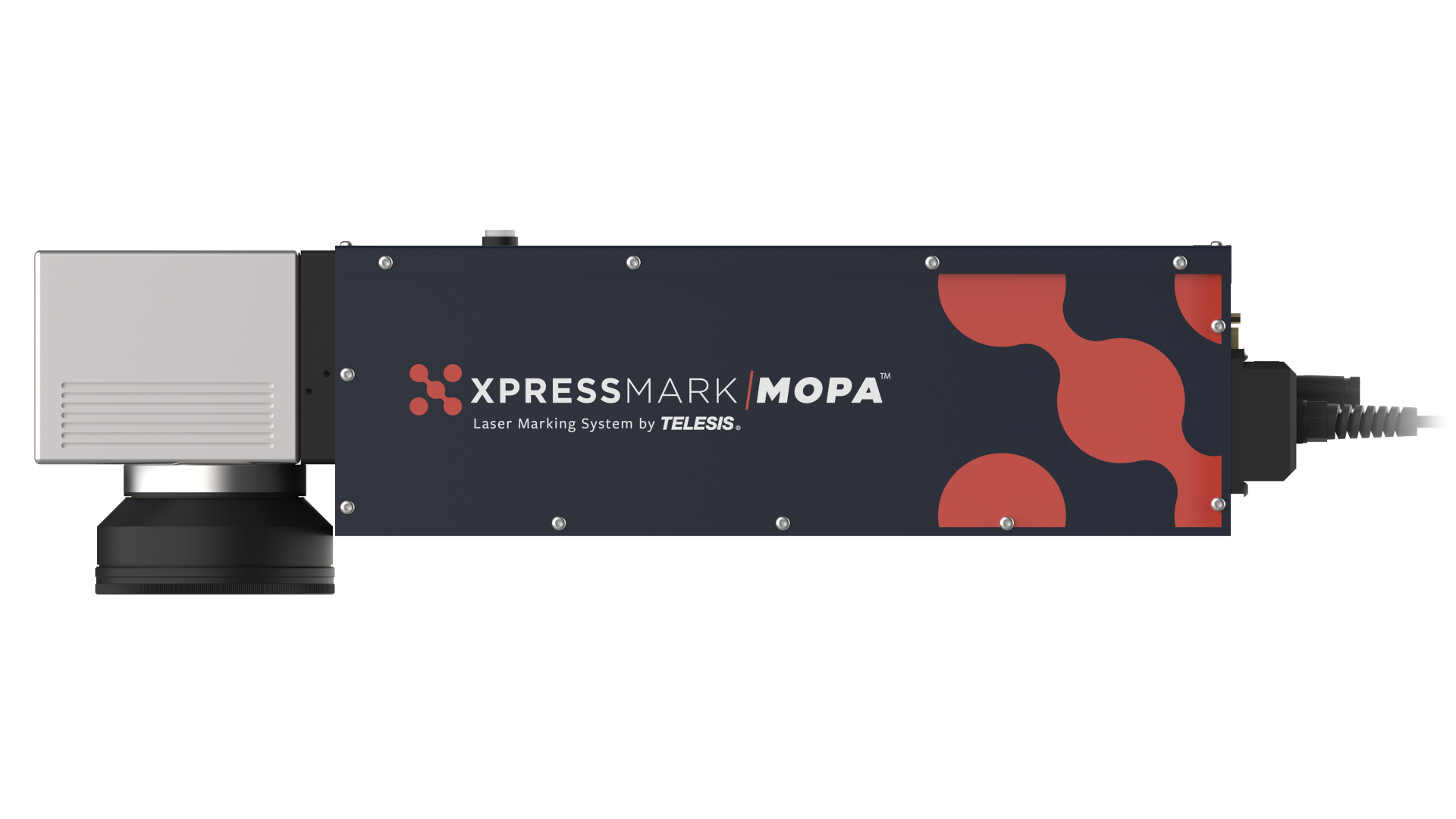

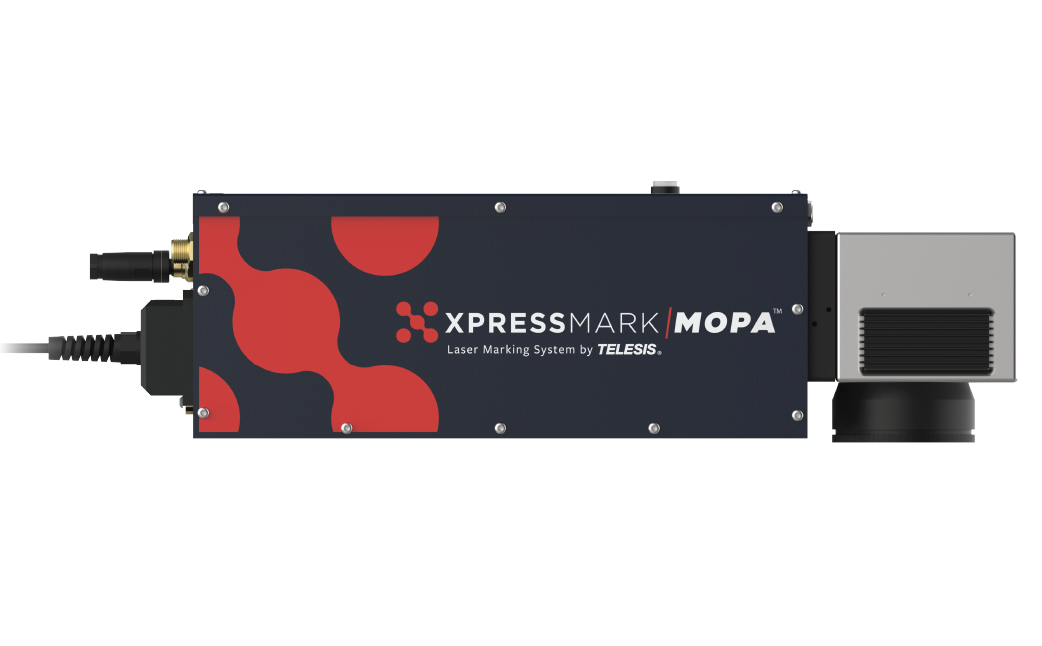

Laser Head Dimensions
19.35" L x 5.24" W x 5.17" H
492 mm x 133 mm x 131 mm
Note: Dimensions shown for XPM Head. Other models vary.
Design, Manage, and Execute Marks with the Telesis XpressMark MOPA™
Elevate your laser marking experience with the powerful and versatile Merlin® software. Fully integrated with XpressMark, Merlin® provides an intuitive platform for designing, managing, and executing marks with precision and ease. This seamless hardware-software synergy delivers a complete marking solution, with advanced functionality and user-friendly operation for exceptional performance.
XpressMark MOPA™ offers technology for unmatched efficiency and precision. AutoFocus™ automatically adjusts the focal point for each part, ensuring consistent marks with minimal manual intervention. Vari-Z™ allows for seamless height adjustments, accommodating parts of different sizes without the need for recalibration. Integrated InLine Vision enhances marking accuracy with code reading and inspection, reducing footprint and integration costs.
Elevate your laser marking experience with the powerful and versatile Merlin® software. Fully integrated with XpressMark MOPA, Merlin® provides an intuitive platform for designing, managing, and executing marks with precision and ease. This seamless hardware-software synergy delivers a complete marking solution, with advanced functionality and user-friendly operation for exceptional performance.
Complete your System
Our XpressMark MOPA™ pairs with the following Telesis enclosures, workstations, and accessories to provide you with a complete end-to-end marking system.
Need Help Finding the Right Permanent Marking Solution?
Before you make your purchase, let our team of marking experts guide you to the best option suitable for your unique application. Send a sample of your material to the Telesis Applications Lab, and we will recommend the most efficient and cost-effective piece of equipment you’ll need to make a beautiful and successful permanent mark, FREE OF CHARGE!
