The EVCDS offers outstanding beam quality and stability, making it ideal for high-speed marking on delicate and heat-sensitive materials such as electronic components, thin foils and medical instruments.
Versatile and Efficent

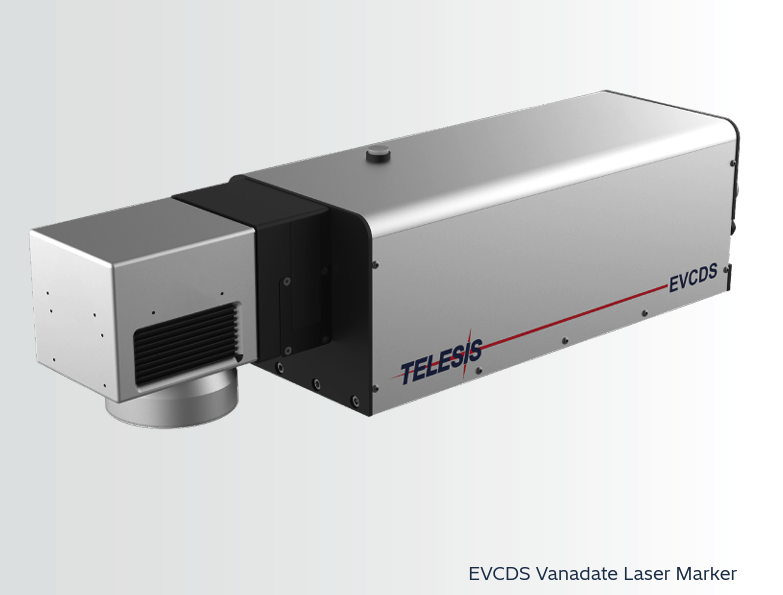

EVCDS Laser Marking System
Telesis Technologies, Inc. continues to lead the charge in industrial marking technology with cutting-edge solutions that meet the needs of manufacturers worldwide. Our EVCDS Laser Marker is an excellent example of our commitment to innovation and reliability.
Engineered with advanced Q-Switched, fiber-coupled diode end-pumped Nd:YVO4 technology, the EVCDS delivers precision, durability and versatility in a compact, low-maintenance package.
Request a Quote Download Product CatalogTelesis Technologies, Inc. vanadate laser markers offer several key features to enhance your laser-marking capabilities, including:
- Simple engraving capabilities: Vanadate laser markers offer engraving for a low cost, making this laser system a good fit for companies looking to invest in their first laser marker.
- Application versatility: Our vanadate laser markers have precise setting controls, allowing operators to fine-tune the laser for engraving, surface marking, color marking or annealing.
- Small heat-affected zone (HAZ): Compared to other lasers, vanadate laser markers have a very small HAZ, so they can be used on delicate, heat-sensitive components.
Great for marking:
- Anodized Aluminium
- Rubber
- Reflective Metal
- Silicon
- Foils
- Films
- Ethernet IP
- Fume Extraction System
- iZONIT™
- Mark-on-the-Fly Ready
- Profinet
- Programmable Mounting Post
- Rotary Axis Fixture
- Teleview™ Code Reading
Wide Range of Applications Across Multiple Industries
- Medical devices: It provides high-precision engraving on surgical instruments and medical equipment, meeting the medical industry’s stringent requirements.
- Electronics: The EVCDS excels at high-speed marking on delicate electronic components, preventing heat damage while maintaining clarity and accuracy.
- Aerospace: This laser marker is ideal for marking high-strength alloys used in aircraft components, ensuring durability and compliance with industry standards.
- Automotive: It can efficiently engrave serial numbers, identification marks and other critical data on metal parts and thin foils used in vehicle manufacturing.
Applications

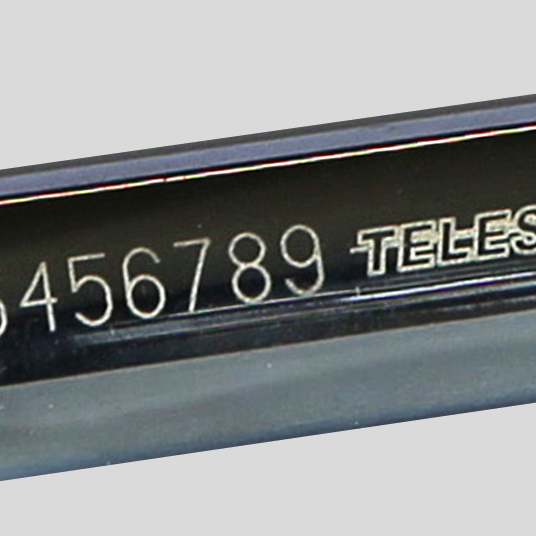

Markings

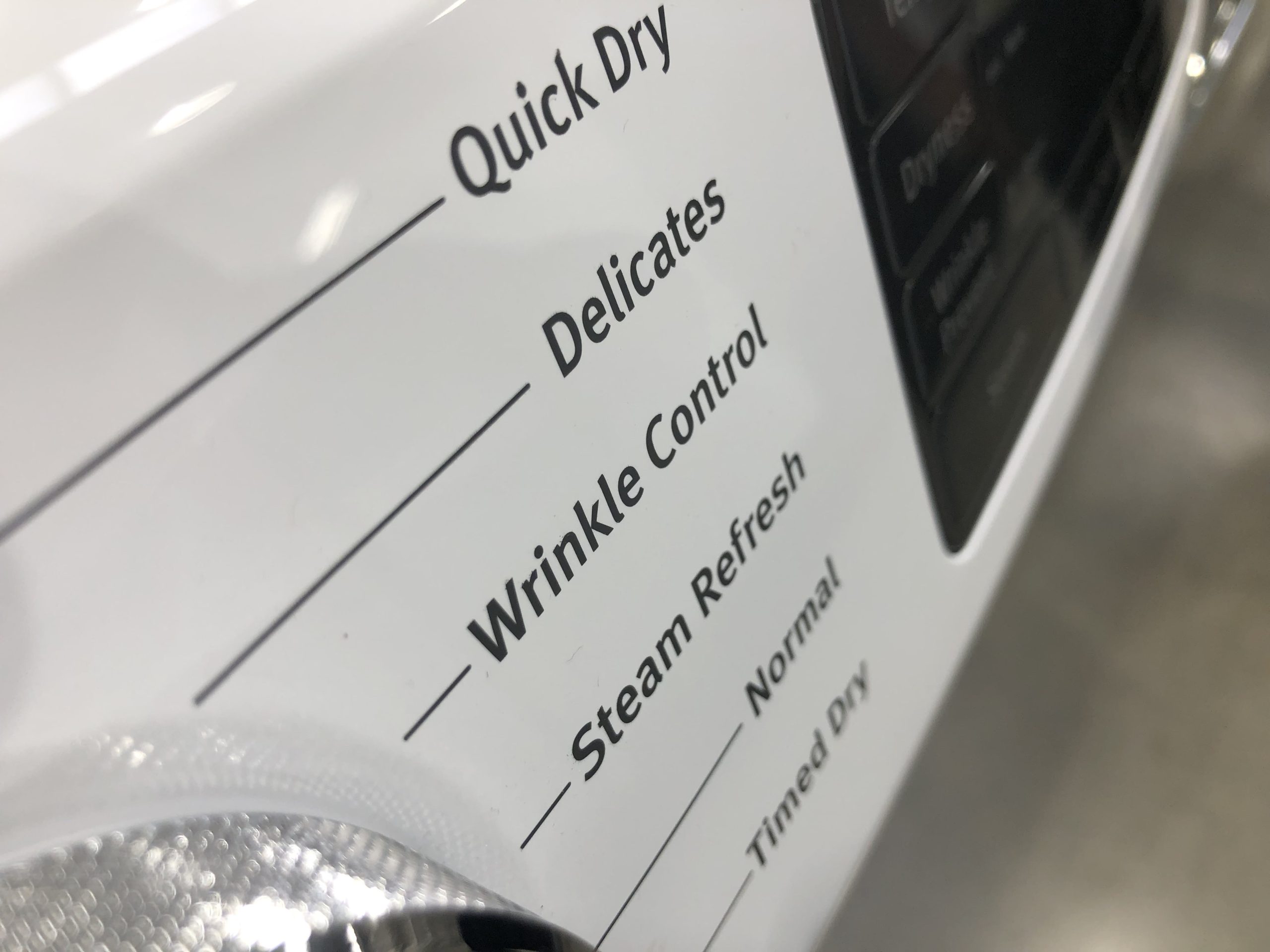

Plastic Components
Aerospace Schematics

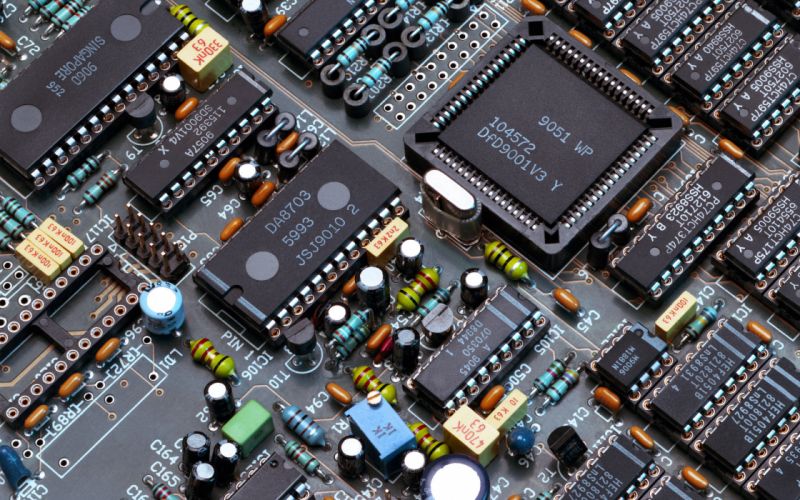

Electronics Markings

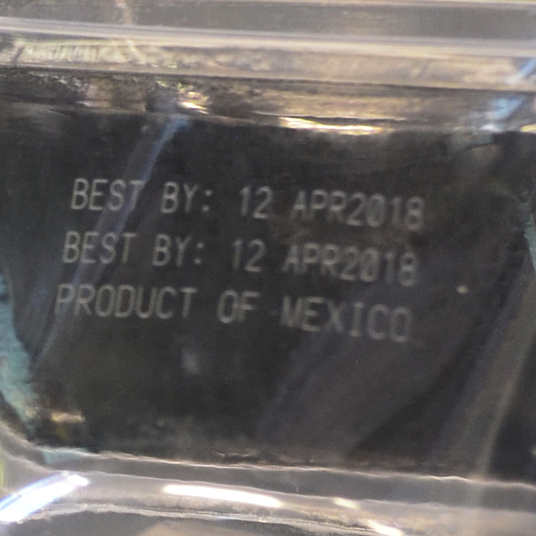

Markings
Markings
Electronics Markings
Specs
Lens Marking Area
F160: 4.33" x 4.33" (110 mm x 110 mm)
F254: 6.89" x 6.89" (175 mm x 175 mm)
F100*: 2.56" x 2.56" (65 mm x 65 mm)
F160*: 4.33" x 4.33" (90 mm x 90 mm)
F254*: 6.89" x 6.89" (175 mm x 175 mm)
F330*: 9.06" x 9.06" (230 mm x 230 mm)
F420*: 11.42" x 11.42" (290 mm x 290 mm)
Note: *Denotes premium lens
Lens Working Clearance
F160: 7.13" (181 mm)
F254: 11.50" (292 mm)
F100*: 3.82" (97 mm)
F160*: 6.93" (176 mm)
F254*: 11.65" (296 mm)
F330*: 15.24" (387 mm)
F420*: 19.41" (493 mm)
Note: *Denotes premium lens

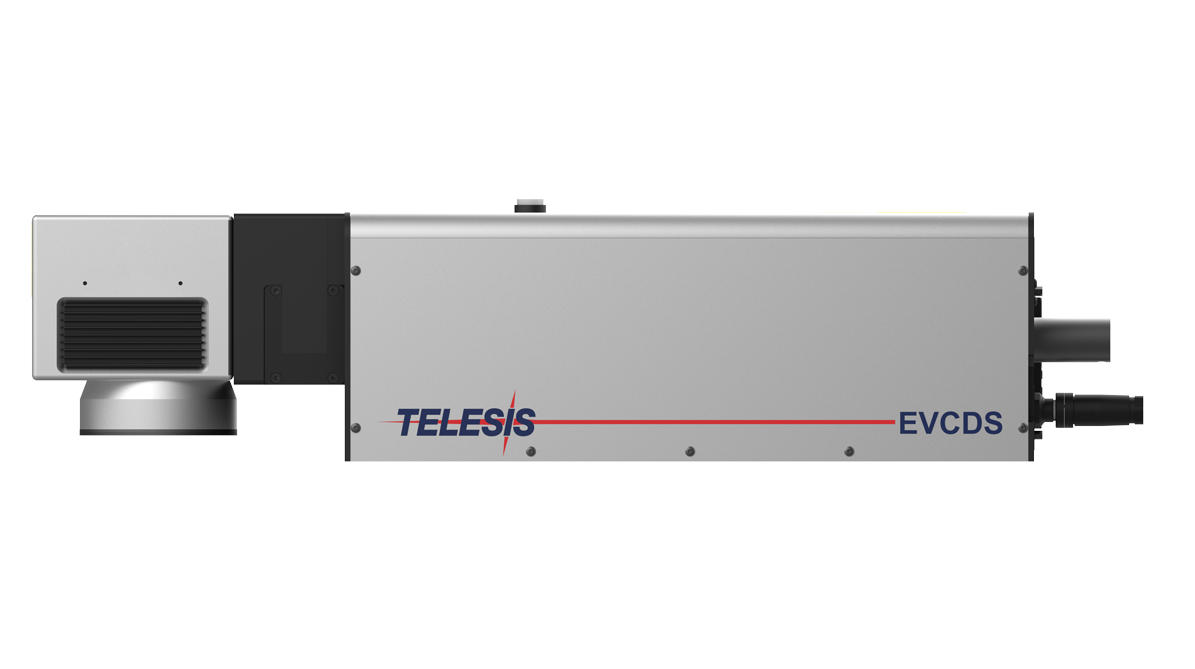

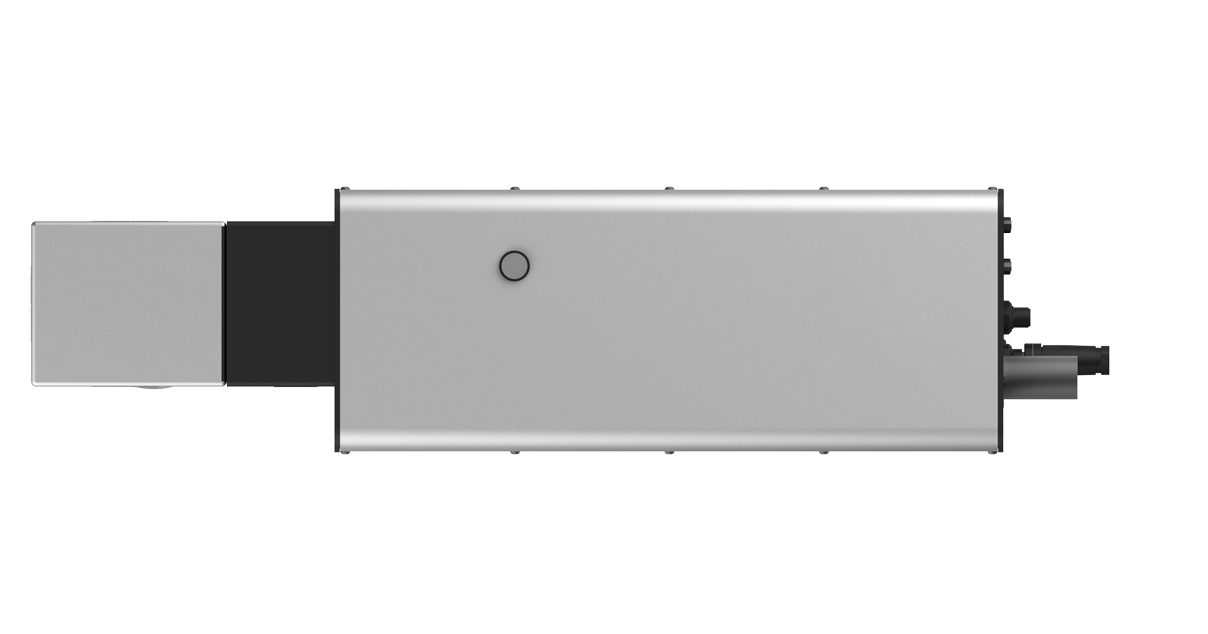

Laser Head Dimensions
24" L x 6.1" W x 5.55" H
610 mm x 154 mm x 141 mm
Essential Features and Benefits of the EVCDS Laser Marker
The EVCDS Laser Marker is a standout solution for industries requiring high-quality, permanent marking. Designed to minimize downtime and maximize productivity, it ensures you can get the job done:
The compact, air-cooled design of the EVCDS makes it easy to integrate into manual offline setups and automated in-line systems. Featuring Marking-On-The-Fly (MOTF) technology, this system supports high-volume production with precision and speed.
Equipped with a dual-sensor shutter safety system, the EVCDS ensures safe operation without compromising performance. Its rugged construction is built to withstand harsh industrial environments, delivering reliable, long-term performance.
The EVCDS can handle a wide range of materials, from heat-sensitive electronics to high-strength alloys, making it suitable for numerous industries. The system’s precise control settings allow operators to fine-tune the laser for engraving, annealing, surface marking and color marking. The EVCDS can accommodate surface variances of ±4mm without Z-axis adjustments, allowing consistent marking on curved and irregular surfaces.
The air-cooled system requires no water cooling and features a compact, low-maintenance design, reducing operating costs and ensuring long-term reliability.
Complete your System
Our EVCDS Laser Marker pairs with the following Telesis enclosures, workstations, and accessories to provide you with a complete end-to-end marking system.
Need Help Finding the Right Permanent Marking Solution?
When precision, reliability and innovation are critical, trust Telesis Technologies, Inc. to provide the solution. The EVCDS Laser Marker offers unmatched performance and versatility for industries requiring high-quality, permanent marking.
Whether you want to enhance your current marking capabilities or integrate new technology into your production line, our in-house team can help you install a bespoke solution. Contact us today to request a quote or schedule a demo and see the EVCDS laser marking system in action.
