Telesis Summit.Pro™ sets a new standard in laser marking technology with available dual-head design, delivering maximized marking power. This patented technology increases throughput, reduces costs, and ensures unmatched marking speed and precision. No other laser marking system on the market comes close.
Advanced Laser Marking

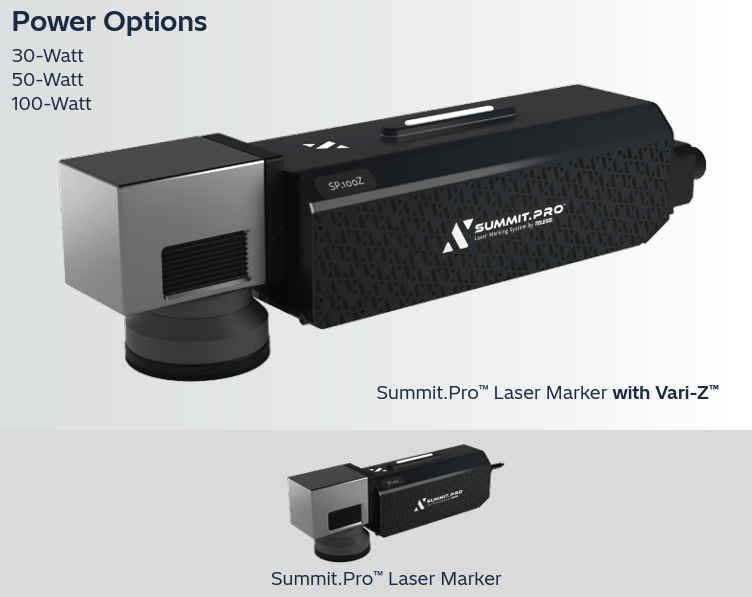

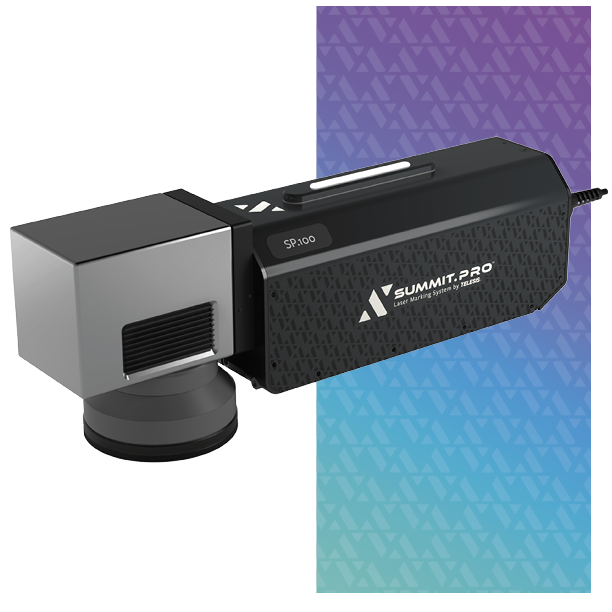

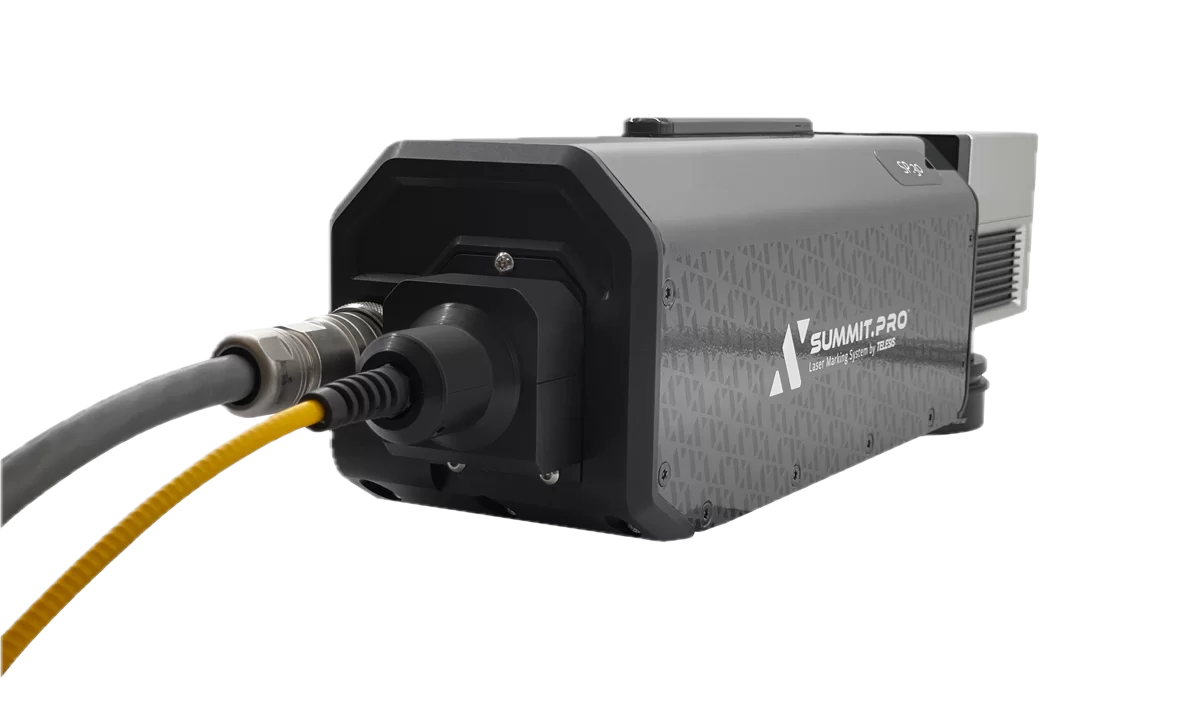

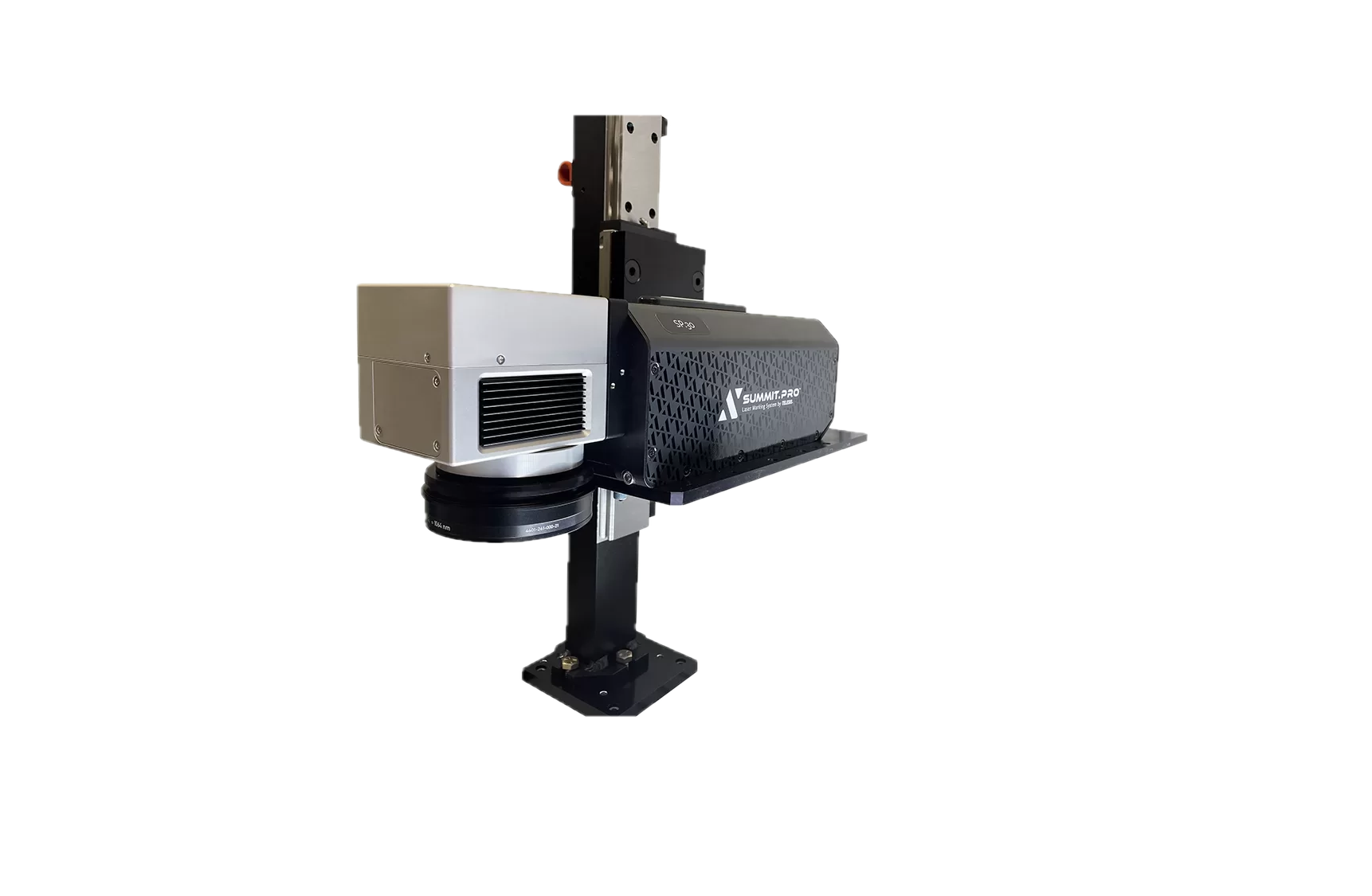

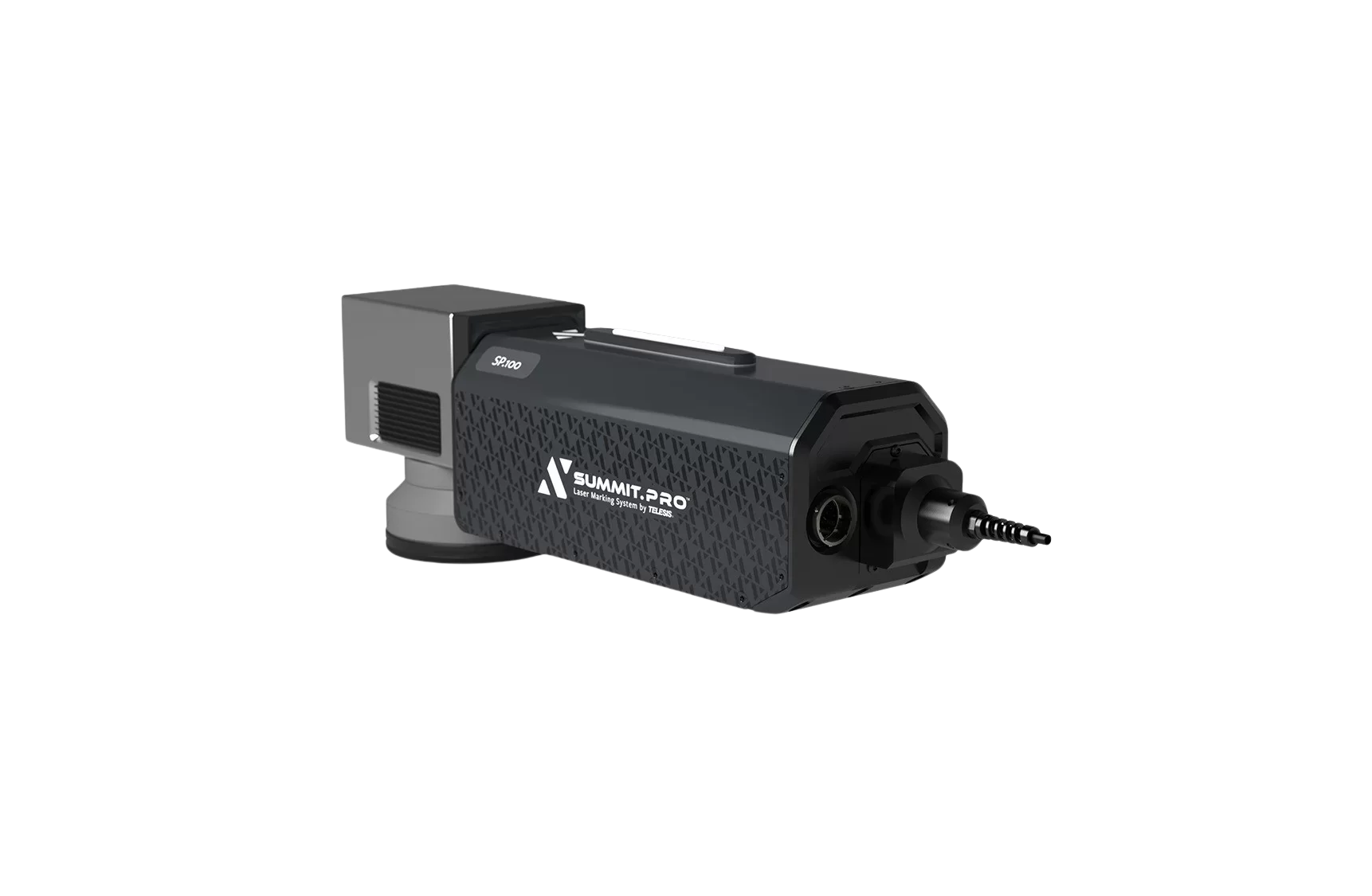

Summit.Pro™
Designed with high-quality, heavy-duty components, the Summit.Pro withstands even the most demanding manufacturing environments. Its compact footprint saves space, while flexible lens options, EIP, and PROFINET compatibility make integration seamless for any production line. This next-generation fiber laser marking system offers superior mark quality, consistency, and depth, all while reducing energy consumption and eliminating consumables.
Request a Quote Download Product Catalog- Reduce costs and production downtime
- Compact footprint saves space and easily integrates
- Removable and flexible lens options provide flexibility
- Produce high quality marks
- Up to 100w fiber laser marking
- Improve consistency in your operations
- Achieve necessary depth in heavy, dense materials
- Eliminate consumables and reduce recurring costs
- Reduce energy consumption
- Increase throughput of product
- Quickly realize ROI
Telesis Summit.Pro™ sets a new standard in laser marking technology with available dual-head design, delivering maximized marking power. This patented technology increases throughput, reduces costs, and ensures unmatched marking speed and precision. No other laser marking system on the market comes close.
Great for marking:
- Aluminum
- Plastics
- Cold Rolled Steel
- Stainless Steel
- Brass
- Titanium
- Auto-Focus™
- Dual-Head Configuration
- Ethernet IP
- Fume Extraction System
- iZONIT™
- Mark-on-the-Fly Ready
- Profinet
- Programmable Mounting Post
- Rotary Axis Fixture
- Teleview™
- Vari-Z™
Applications

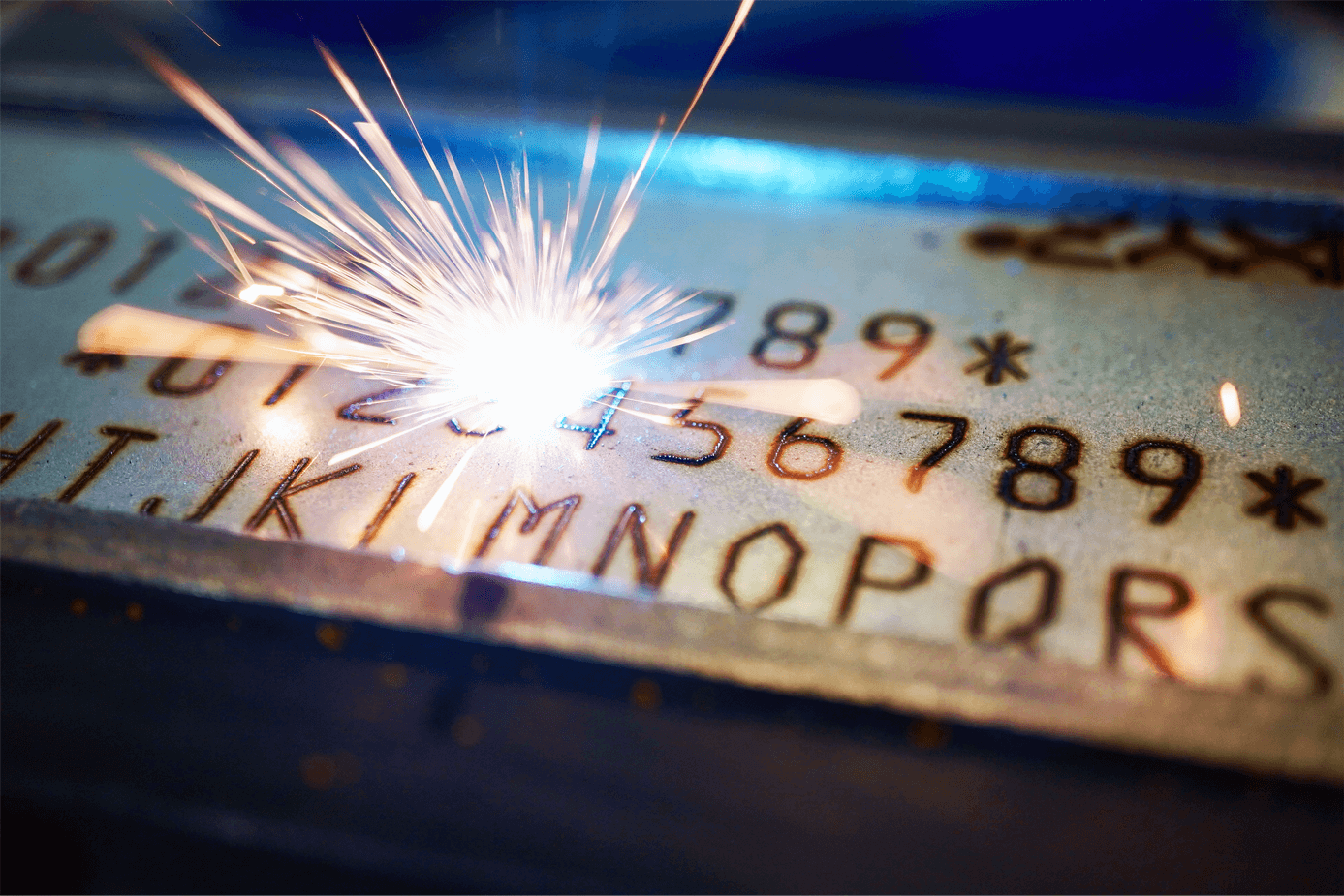

Laser Sparks

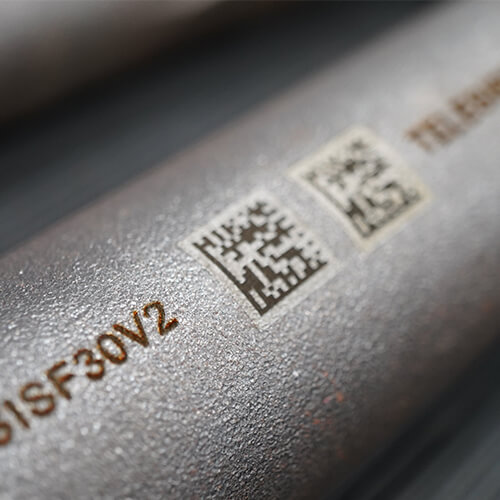

2D Matrix Code
Text on Metal Gadgets
2D Matrix Code
Specs
Lens Marking Area
F100: 2.56" x 2.56" (65 mm x 65 mm)
F160: 3.54" x 3.54" (90 mm x 90 mm)
F163: 4.33" x 4.33" (110 mm x 110 mm)
F254: 6.89" x 6.89" (175 mm x 175 mm)
F330: 9.06" x 9.06" (230 mm x 230 mm)
F350: 9.84" x 9.84" (250 mm x 250 mm)
F420: 11.42" x 11.42" (290 mm x 290 mm)
Lens Working Clearance*
F100: 3.82" ± 0.24" (97 mm ± 6 mm)
F160: 6.93" ± 0.59" (176 mm ± 15 mm)
F163: 7.28" ± 0.63" (185 mm ± 16 mm)
F254: 11.65" ± 1.54" (296 mm ± 39 mm)
F330: 15.24" ± 2.48" (387 mm ± 63 mm)
F350: 15.39" ± 2.76" (392 mm ± 70 mm)
F420: 19.41" ± 4.72" (493 mm ± 106 mm)
*Denotes variable working clearance for Vari-Z equipped markers
Laser Head Dimensions
20.508" L x 4.975" W x 5.479" H
520.9 mm x 126.4 mm x 139.12 mm
Deliver Exceptional Efficiency and Precision with the Telesis Summit.Pro™
The Summit.Pro™ delivers exceptional efficiency and precision with advanced technology designed for seamless operation. Its AutoFocus™ feature automatically adjusts the focal point for each part, ensuring consistent, high-quality marks with minimal manual effort. Vari-Z™ simplifies height adjustments, handling parts of varying sizes without recalibration. Integrated InLine Vision further enhances accuracy by providing built-in code reading and inspection, all while minimizing footprint and integration costs.
Designed with high-quality, heavy-duty components, the Summit.Pro withstands even the most demanding manufacturing environments. Its compact footprint saves space, while flexible lens options, EIP, and PROFINET compatibility make integration seamless for any production line. This next-generation fiber laser marking system offers superior mark quality, consistency, and depth, all while reducing energy consumption and eliminating consumables.
The Summit.Pro™ delivers exceptional efficiency and precision with advanced technology designed for seamless operation. Its AutoFocus™ feature automatically adjusts the focal point for each part, ensuring consistent, highquality marks with minimal manual effort. Vari-Z™ simplifies height adjustments, handling parts of varying sizes without recalibration. Integrated InLine Vision further enhances accuracy by providing built-in code reading and inspection, all while minimizing footprint and integration costs.
Telesis Summit.Pro™ sets a new standard in laser marking technology with available dual-head design, delivering up to 200 watts of synchronized marking power. This patented technology doubles throughput, reduces costs, and ensures unmatched marking speed and precision. No other laser marking system on the market comes close.

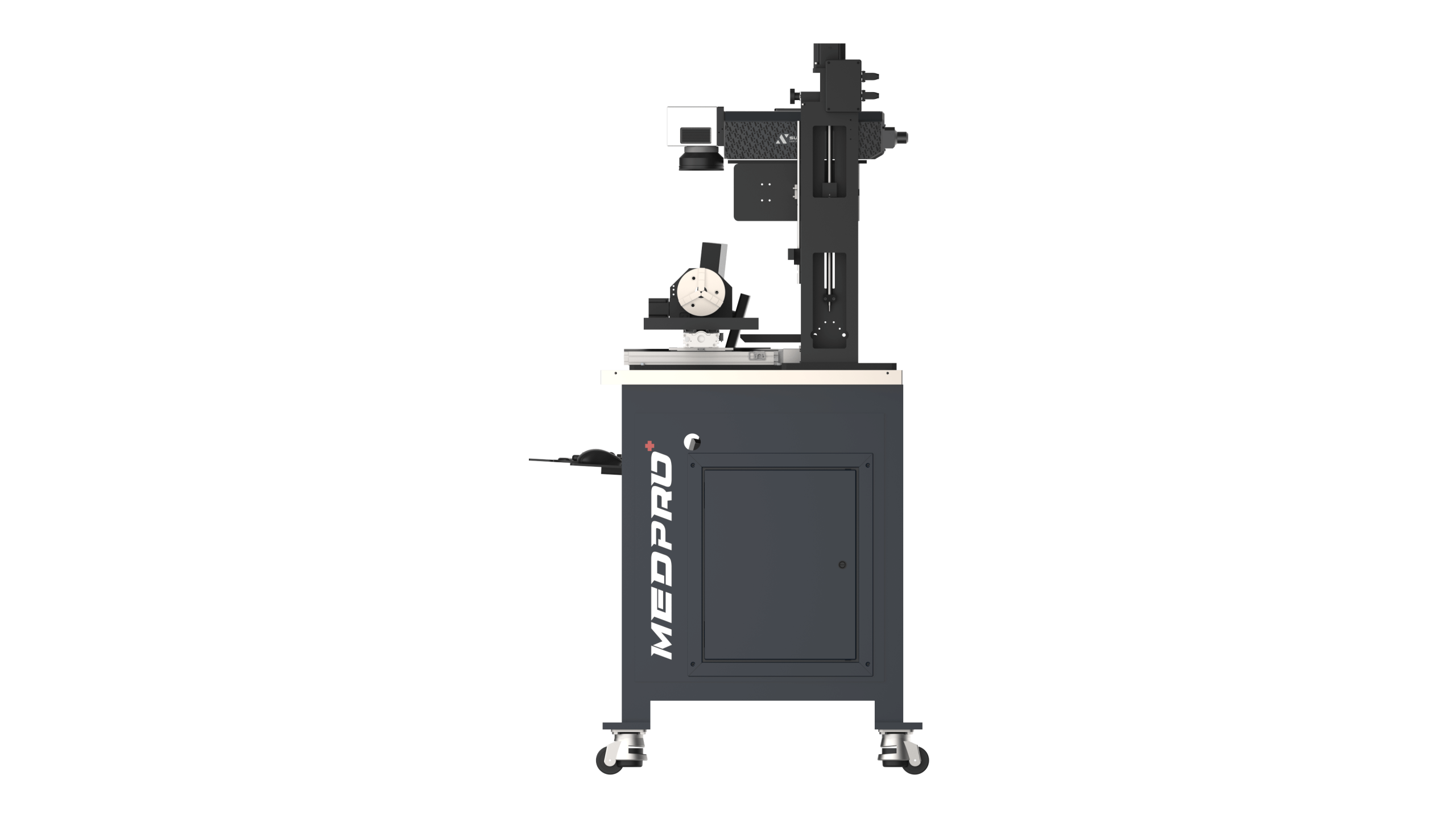

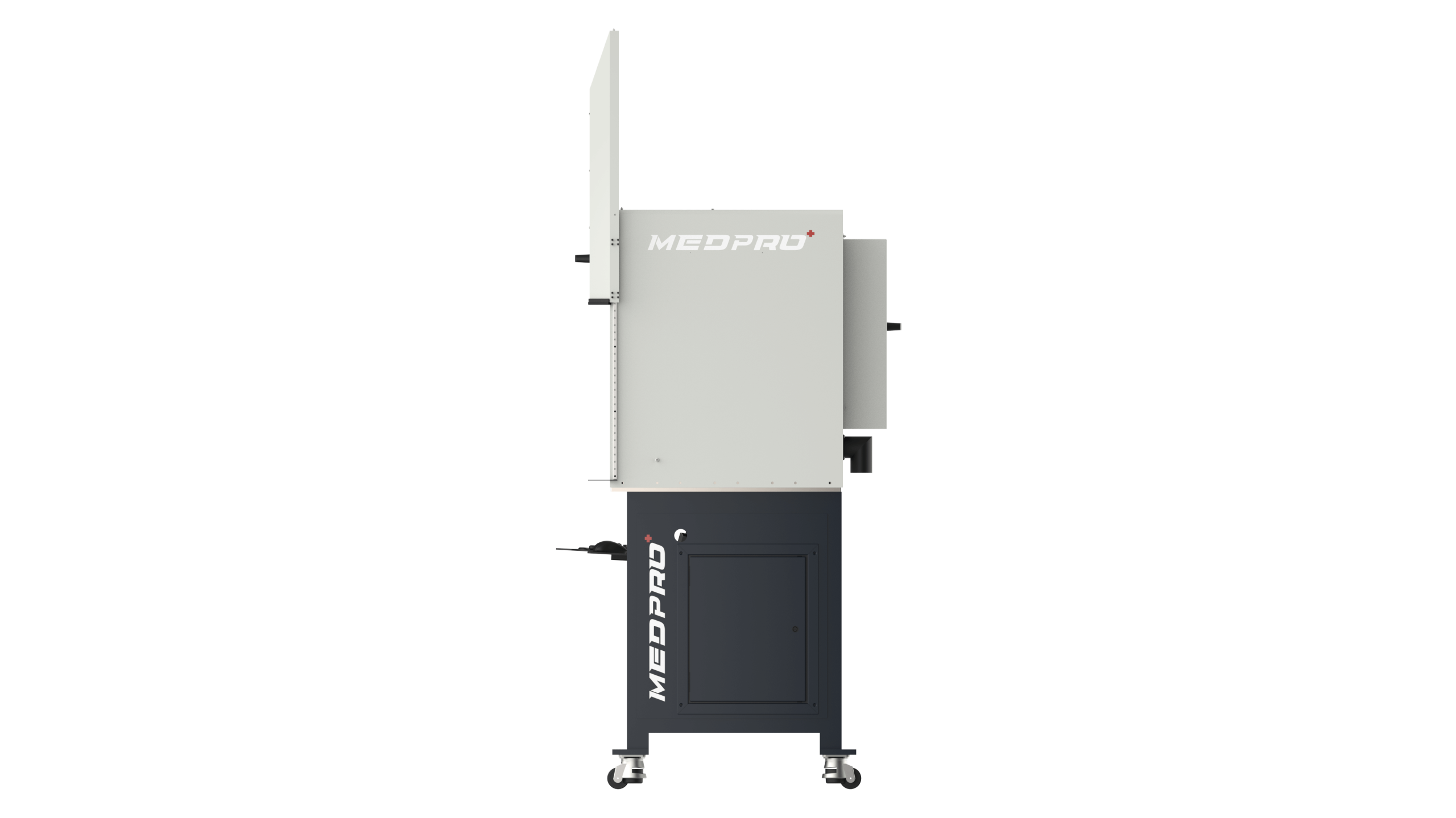

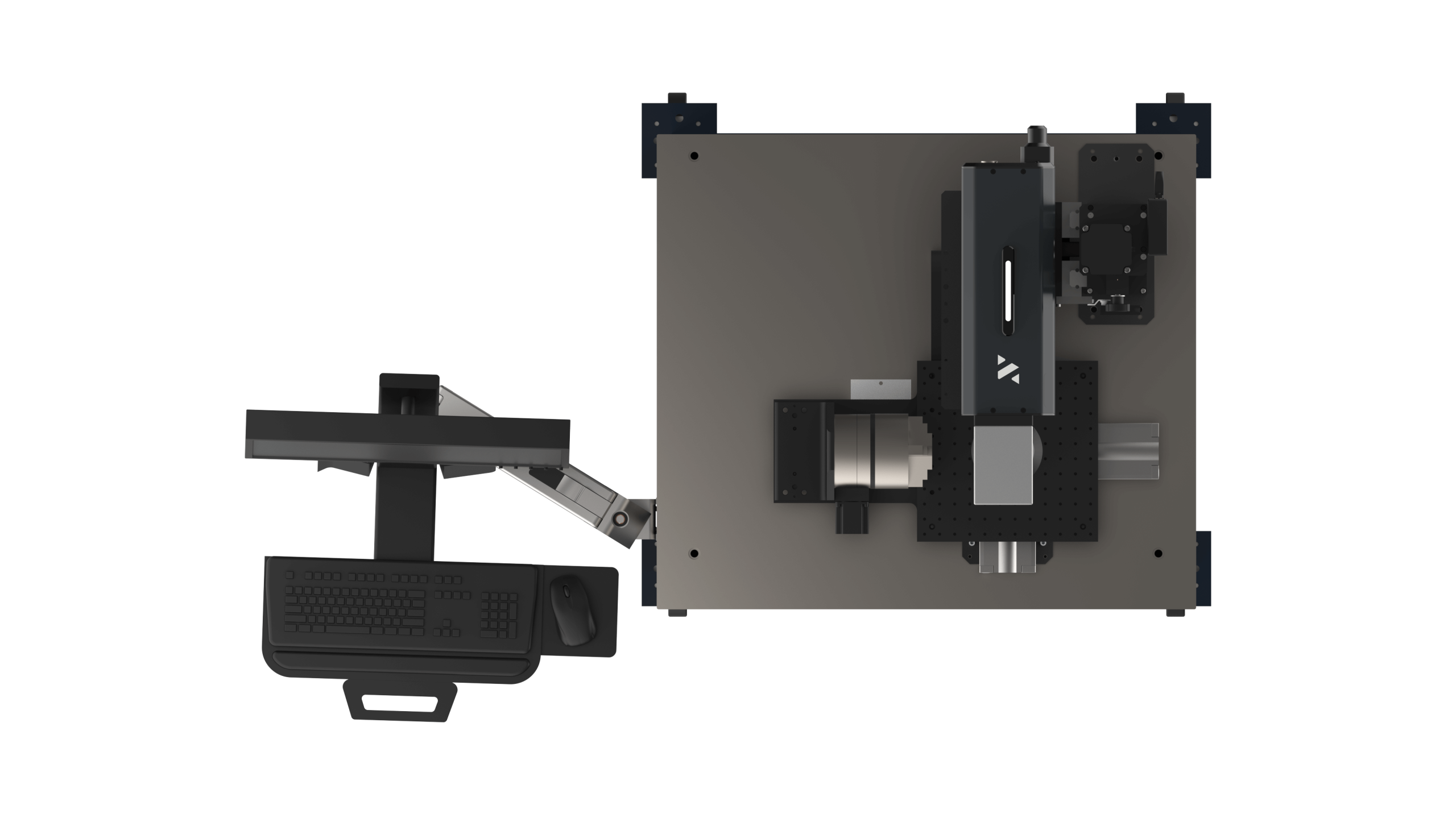

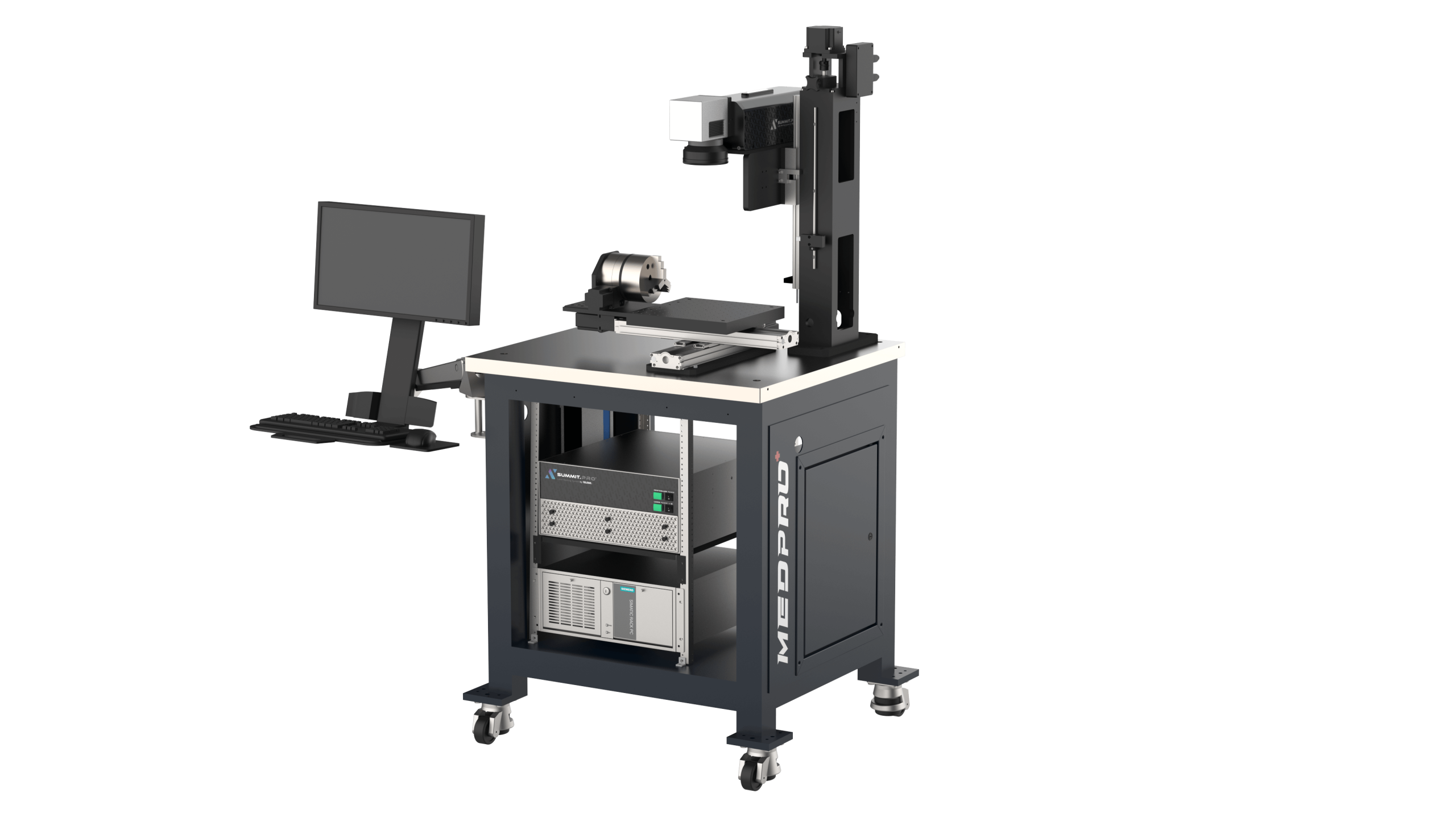

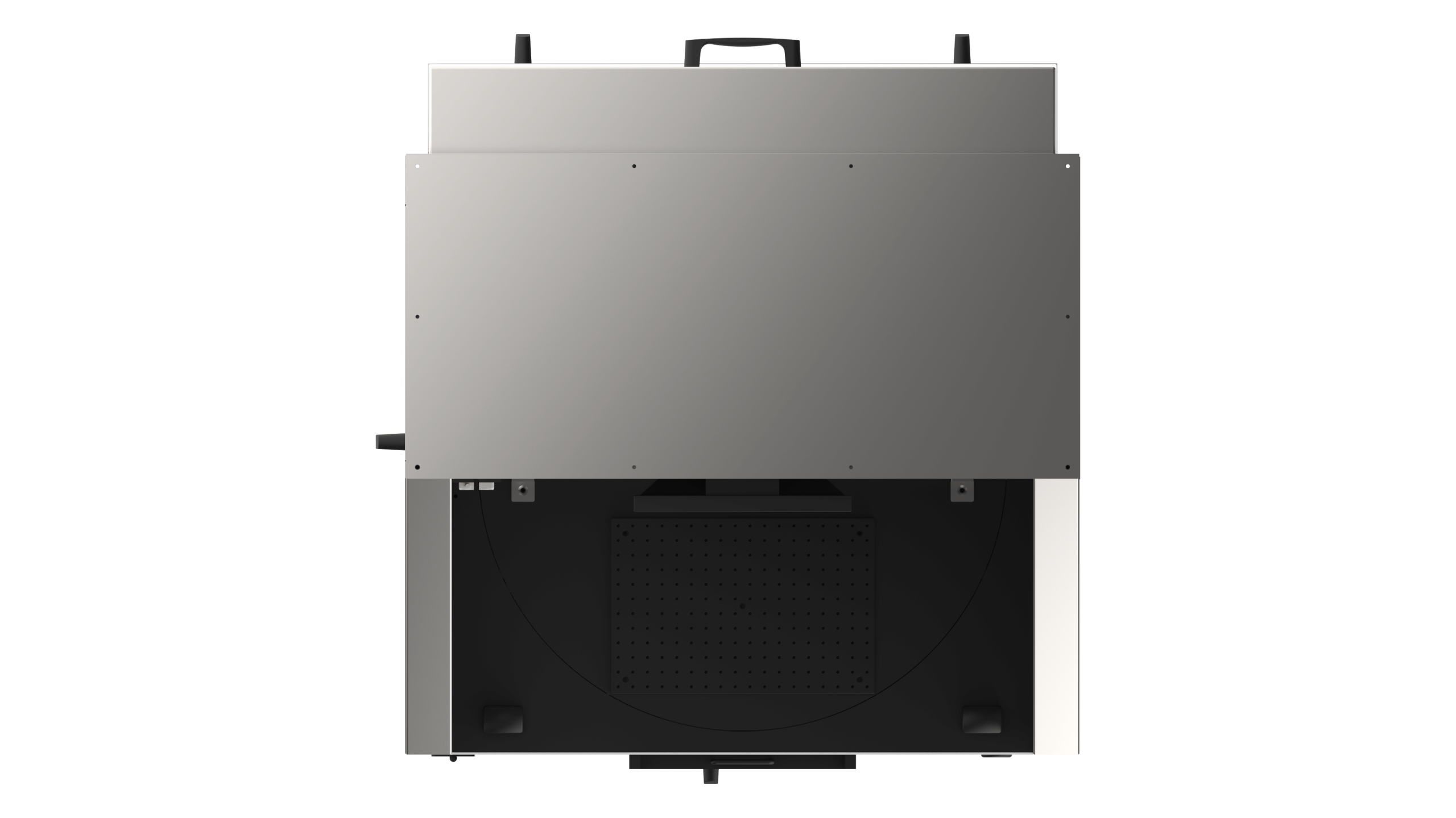

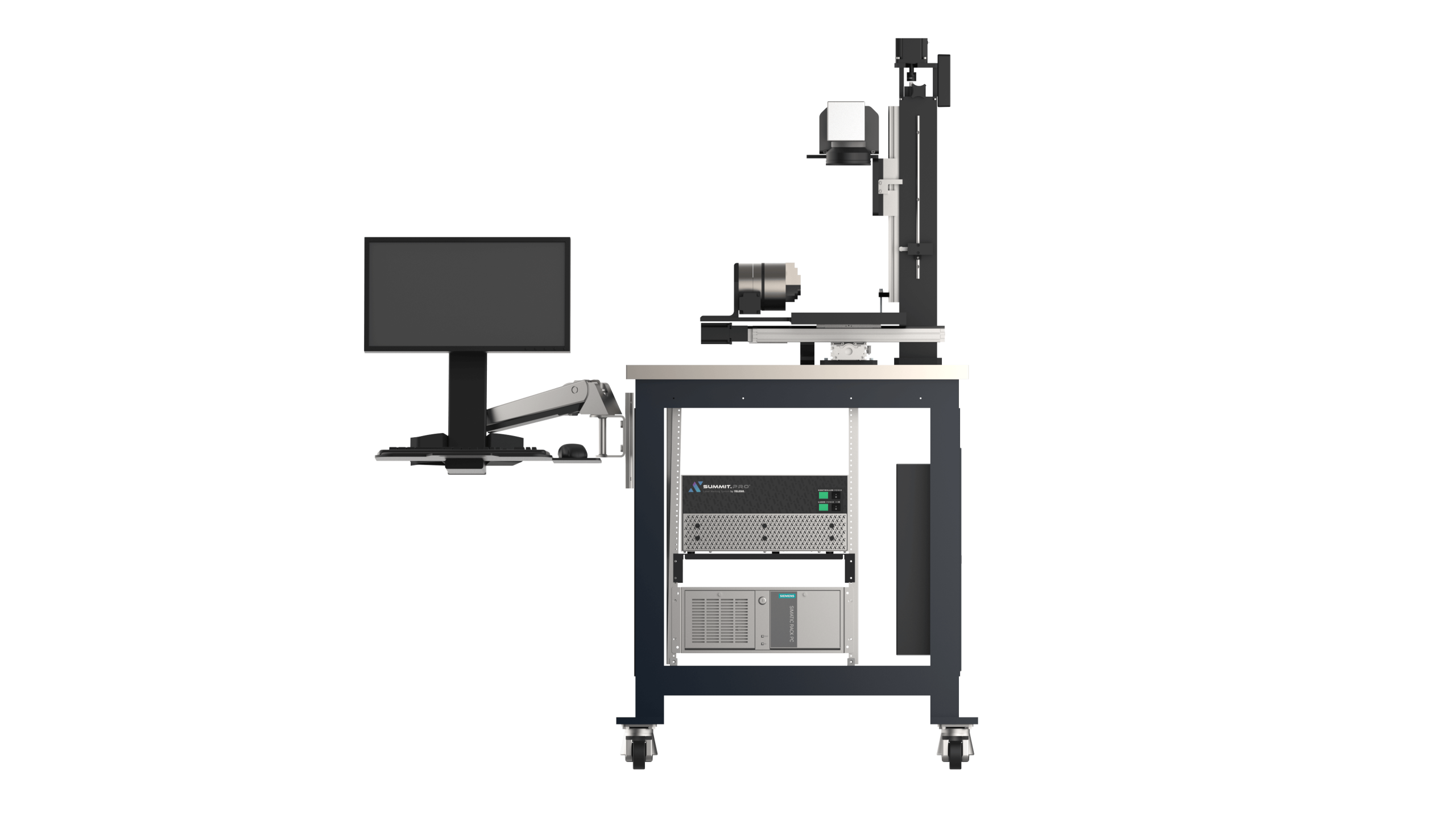

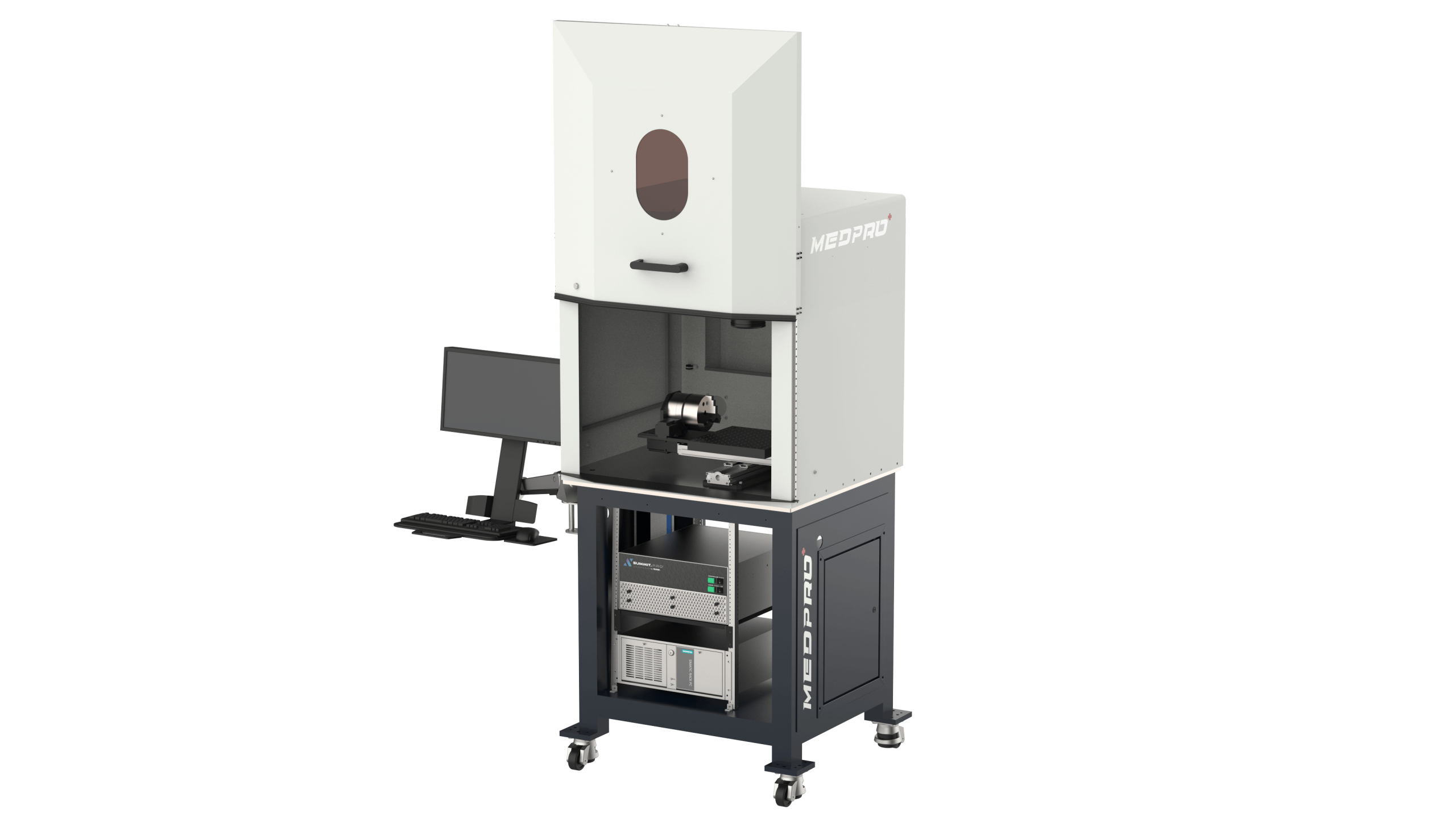

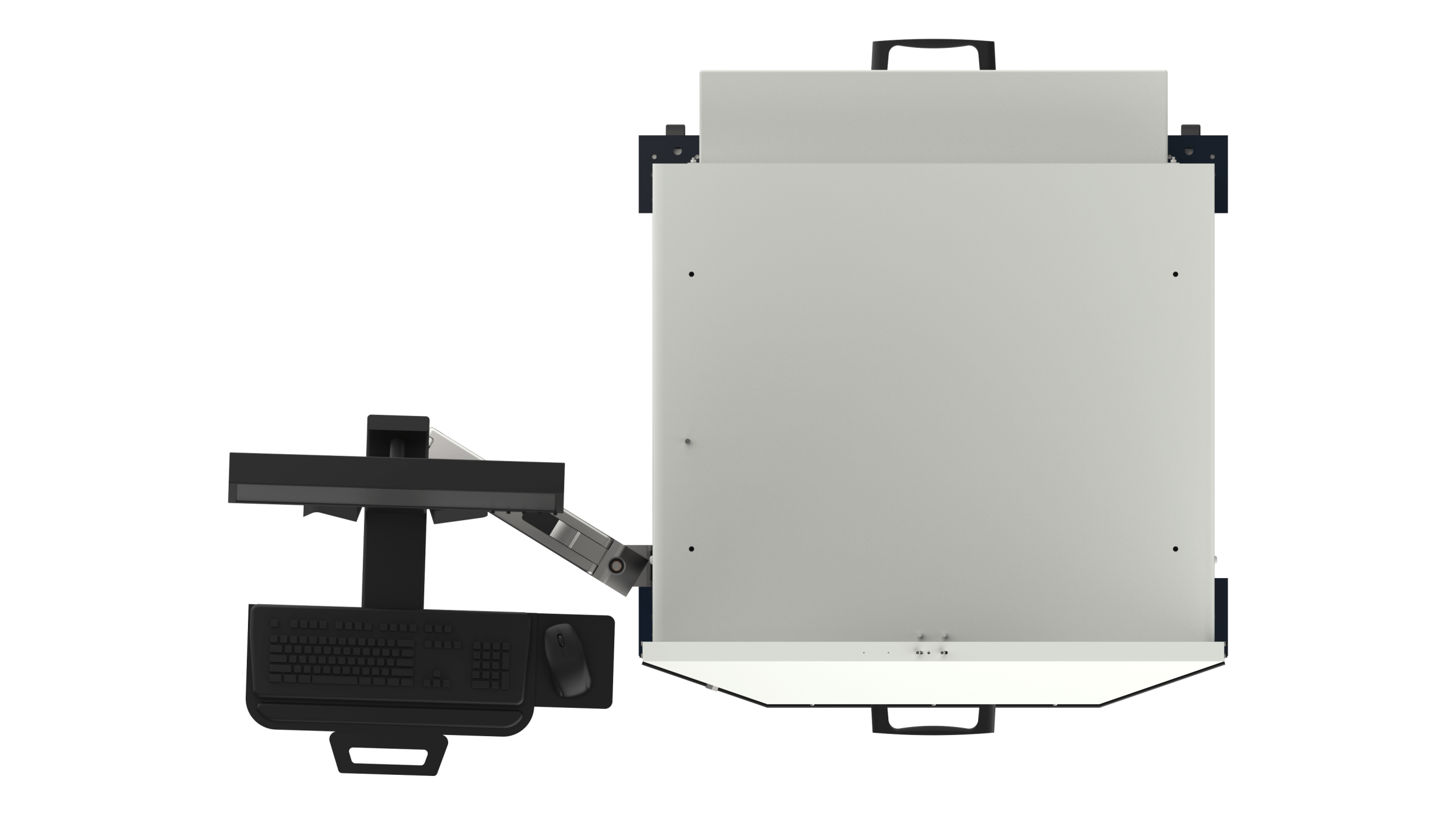

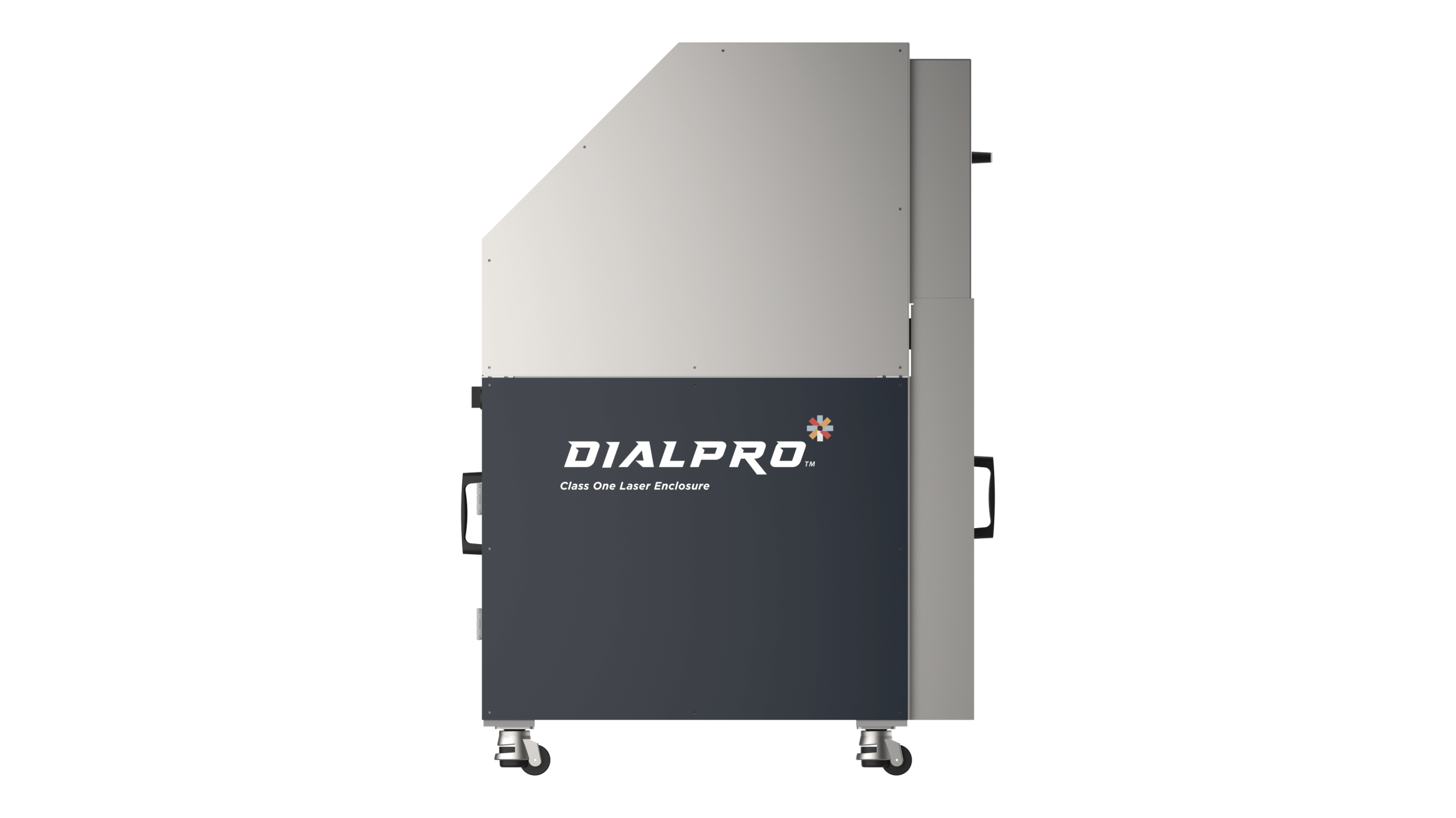

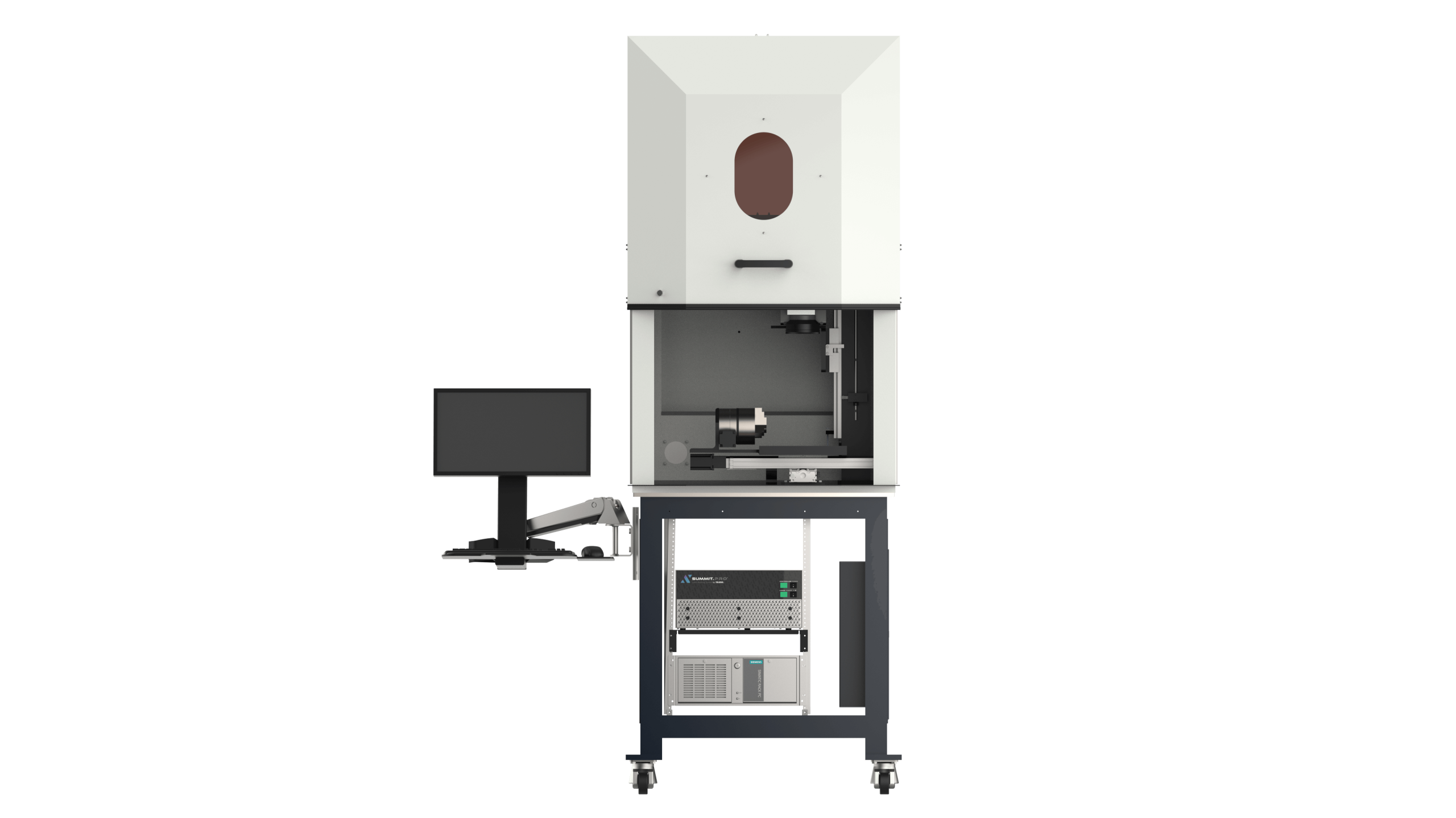

Complete your System
Our Summit.Pro™ pairs with the following Telesis enclosures, workstations, and accessories to provide you with a complete end-to-end marking system.
Need Help Finding the Right Permanent Marking Solution?
Before you make your purchase, let our team of marking experts guide you to the best option suitable for your unique application. Send a sample of your material to the Telesis Applications Lab, and we will recommend the most efficient and cost-effective piece of equipment you’ll need to make a beautiful and successful permanent mark, FREE OF CHARGE!
