Precision, Power, and Permanent Scribe Marking

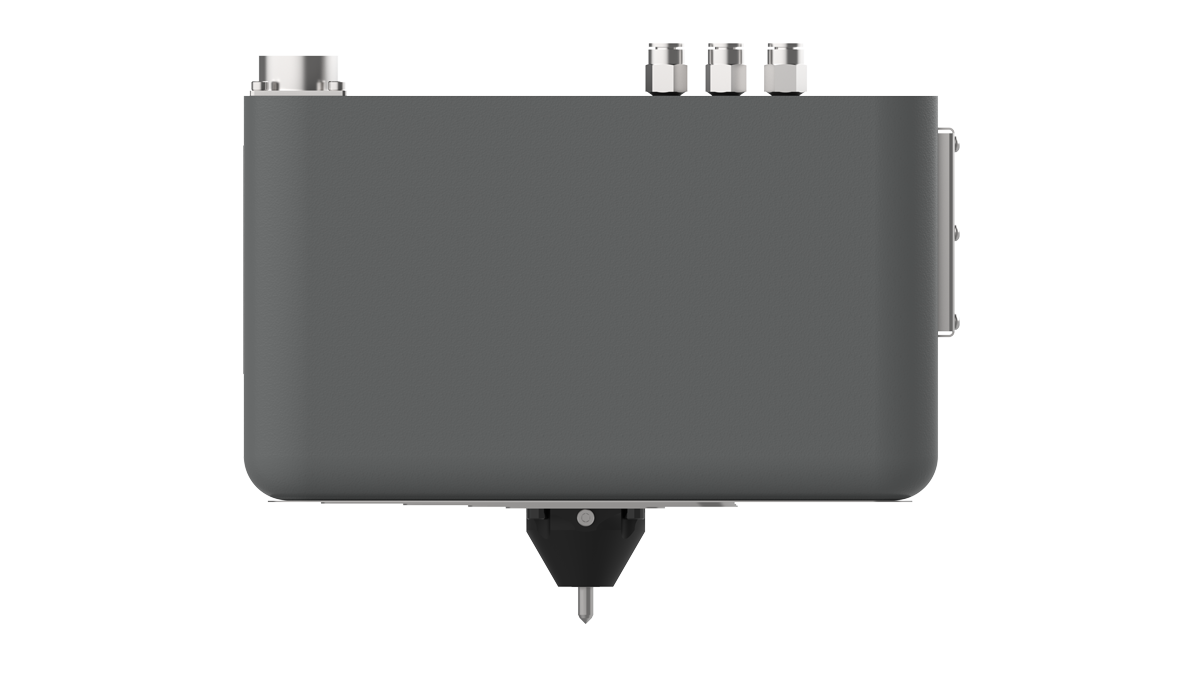

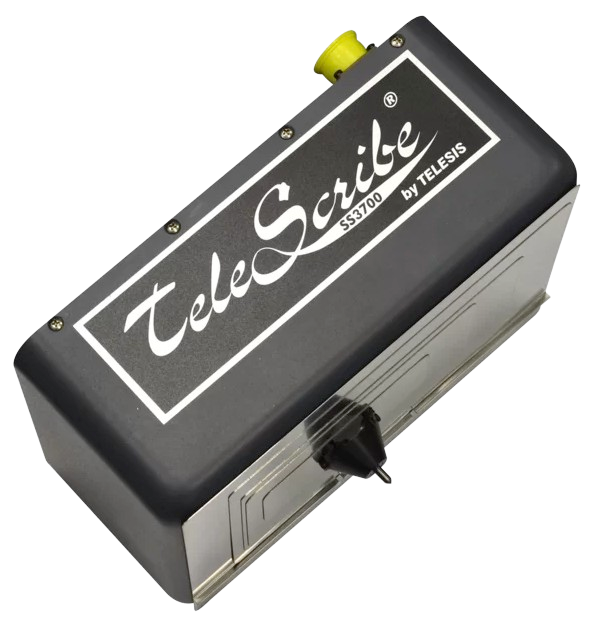

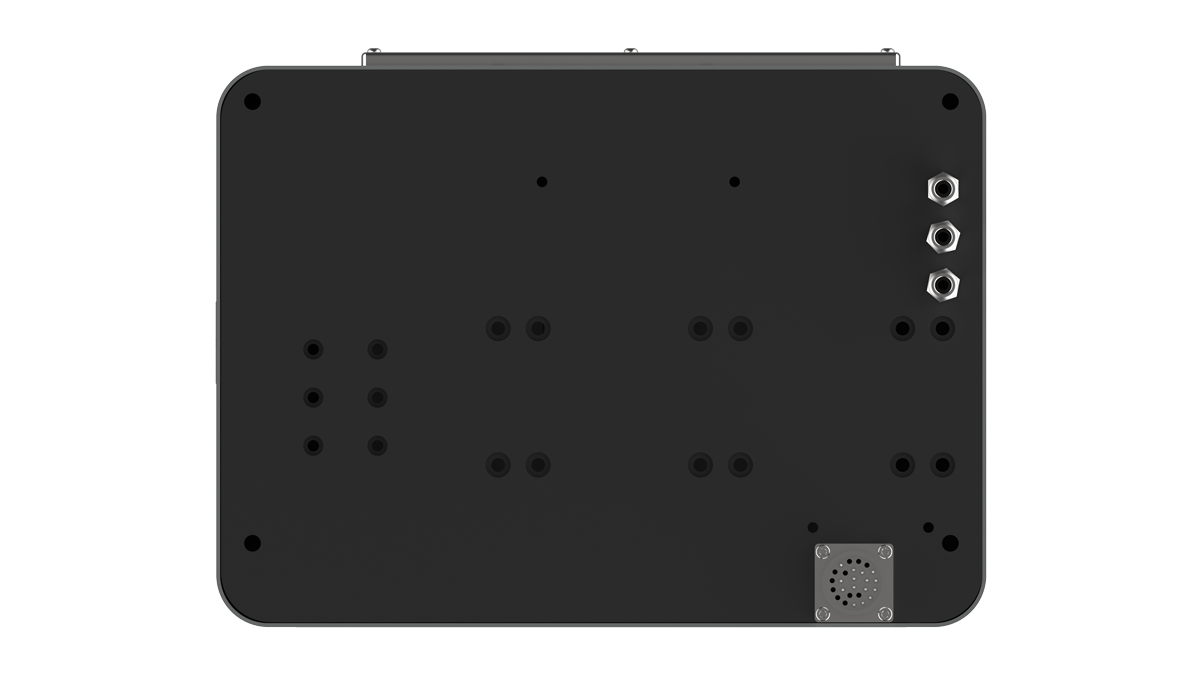

SS3700 Dot Peen Scribe Marker

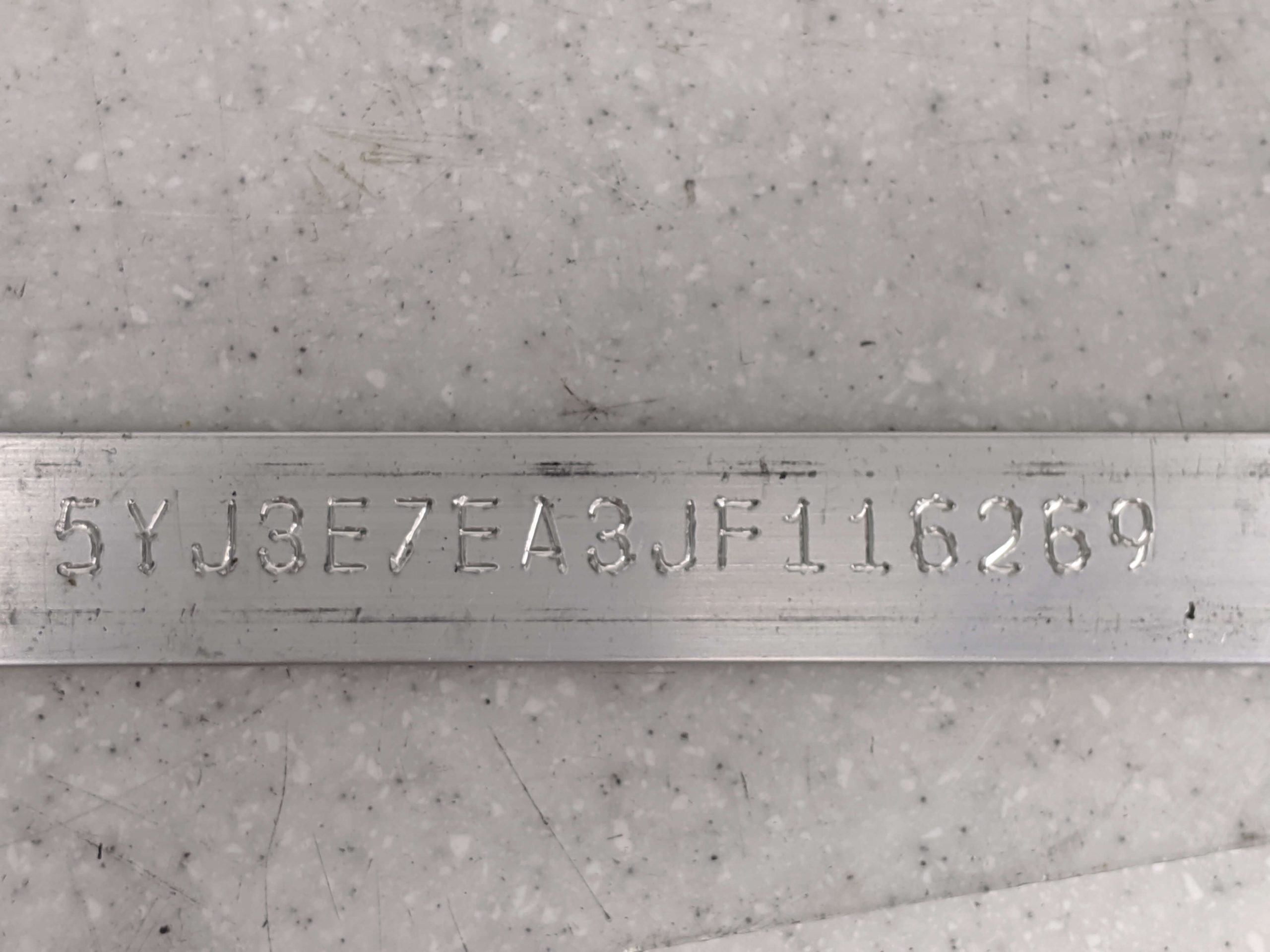

The SS3700 is expertly designed with a large marking window and creates deep, quick marks with a servo-driven motor. The SS3700’s robust X/Y platform provides an ample 6” x 2” (152mm x 51mm) marking window, making it the optimum choice for both manual and automated VIN marking applications.



Request a Quote Download Product Catalog

  • Rugged X/Y Platform: Designed for highprecision scribe marking with durable construction for long-term reliability.
  • Quiet, Vibration-Free Operation: Virtually silent marking system ideal for noisesensitive environments.
  • Material Versatility: Marks a wide range of materials, from plastics to hardened steel, ensuring deep and permanent marks.
  • Consistent, Continuous Line Marking: Creates high-quality, smooth marks
  • Automated Marking Functions: Supports serialization, time/date codes, and other automated marking sequences.
  • Bar Code Scanner
  • Controller
  • Diamond Tip Pins
  • Foot Switch
  • Marking Cable Extension
  • Rotary Fixture
  • Mounting Post
  • System Computer

Applications

Specs

Material Compatibility

Soft plastics to hardened steel (up to RC60)

Marking Depth

0.001 in to 0.018 in

0.03 mm to 0.45 mm

Connectivity

PLC, host computer interface

Marking Area

6 in x 2 in

152.4 mm x 51 mm

Produce Clear, Durable Marks with the Telesis SS3700

Built for demanding industrial conditions, the SS3700’s servo-driven technology enables fast, deep, and clear marking without sacrificing quality. Its durable construction ensures long-term reliability, making it a trusted solution for manufacturers requiring traceability.

The Telesis SS3700 is a highperformance scribe marking system designed for applications that demand deep, smooth, and permanent marks. Utilizing a servo-driven motor, it delivers precise and rapid marking, making it an ideal choice for industries like automotive and aerospace, where durable and legible identification is essential.

With a 6″ x 2″ (152mm x 51mm) marking window, the SS3700 accommodates a wide range of part sizes and configurations. Its robust X/Y platform ensures flexibility for both manual and automated VIN marking applications, providing consistent, high-quality results across various production environments.

Complete your System

Our SS3700 Dot Peen Scribe Marker pairs with the following Telesis enclosures, workstations, and accessories to provide you with a complete end-to-end marking system.
