The TMM5400 is built for speed and efficiency, using eight marking pins to create clear, permanent marks in record time. Whether you’re marking steel, aluminum, or plastic, this multi-pin system ensures deep, precise engraving—ideal for high-volume manufacturing.
Unstoppable Marking Performance

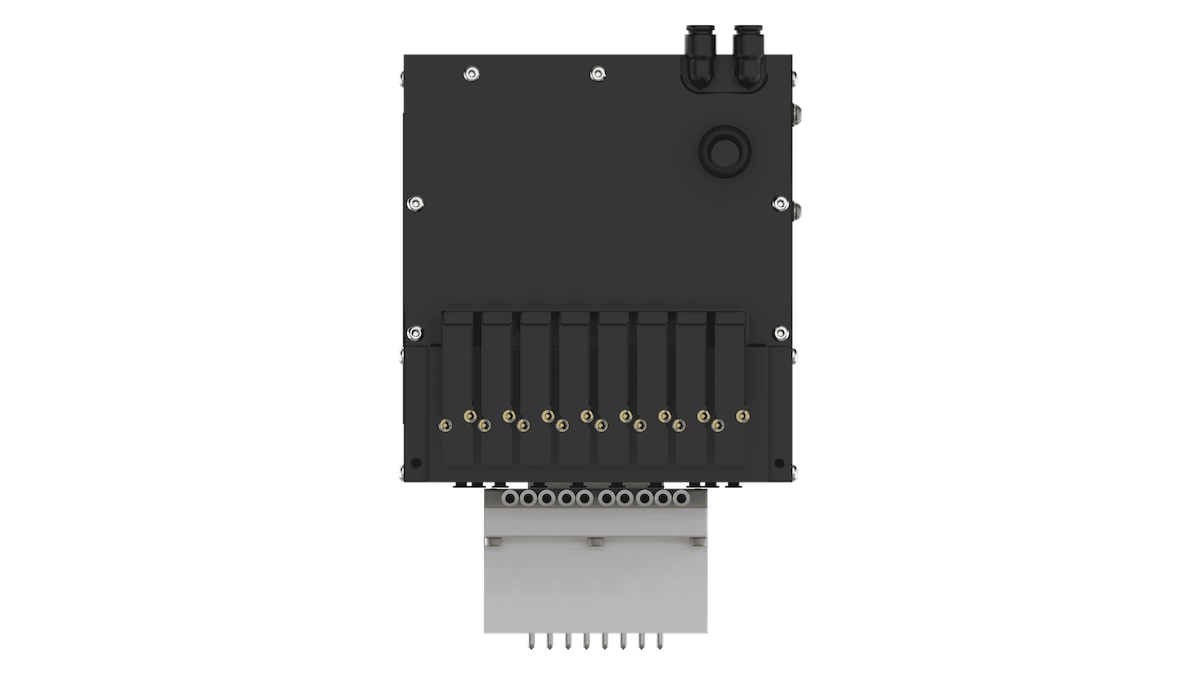

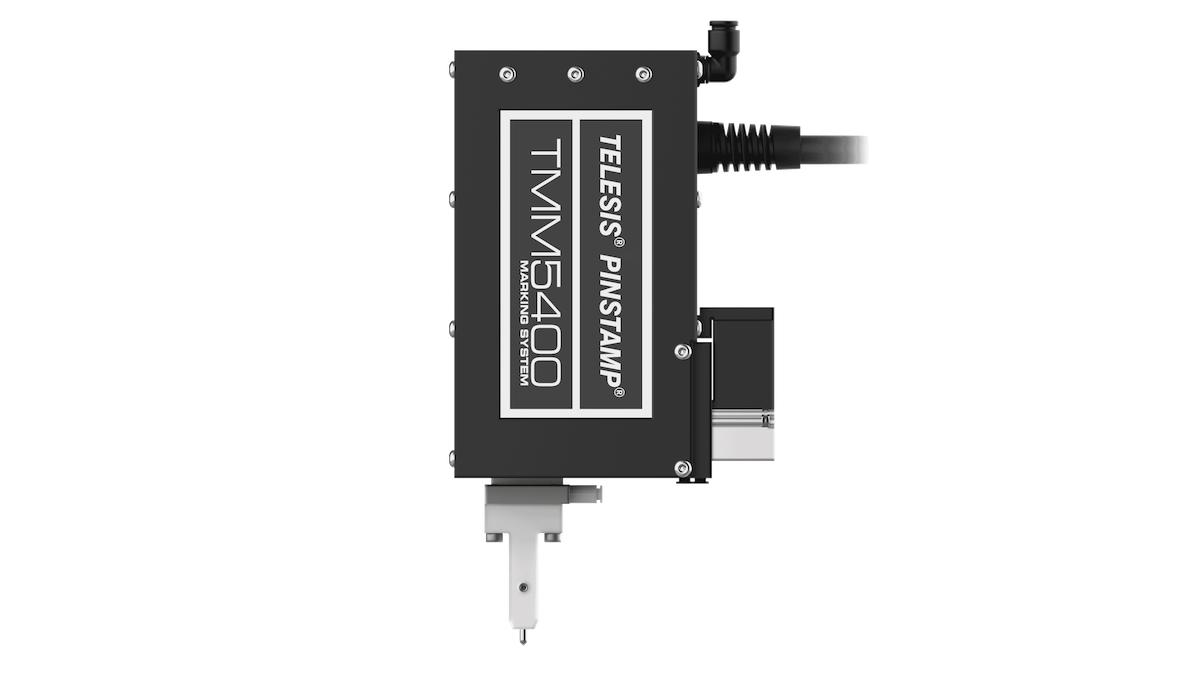

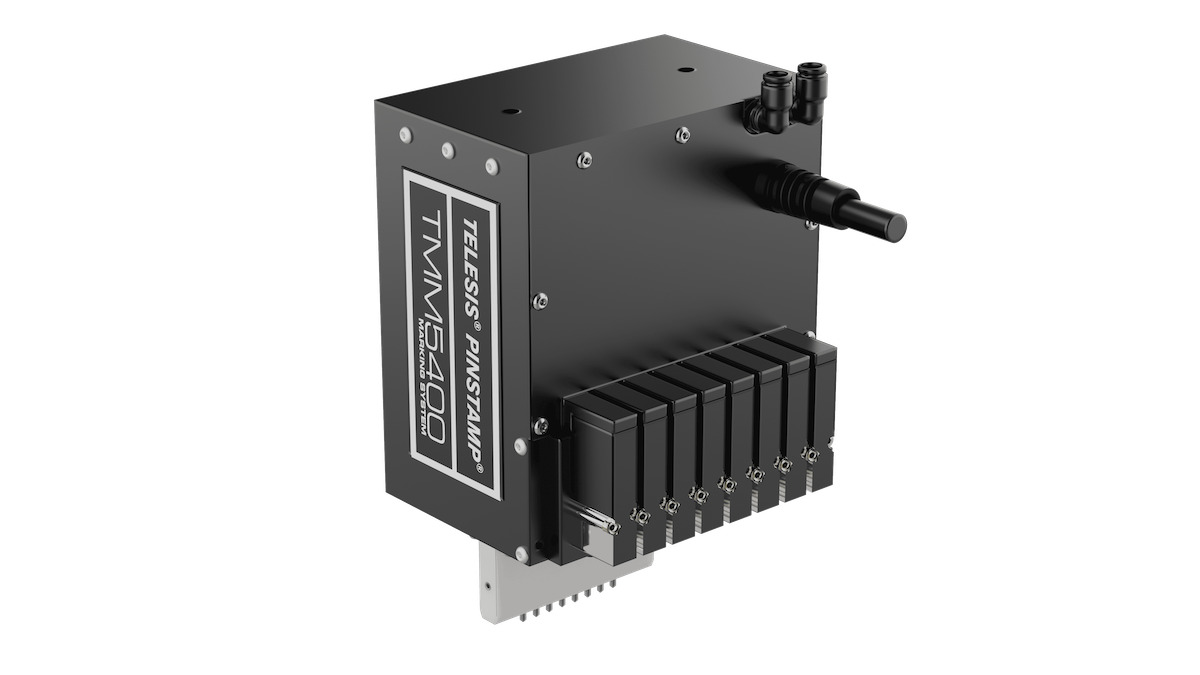

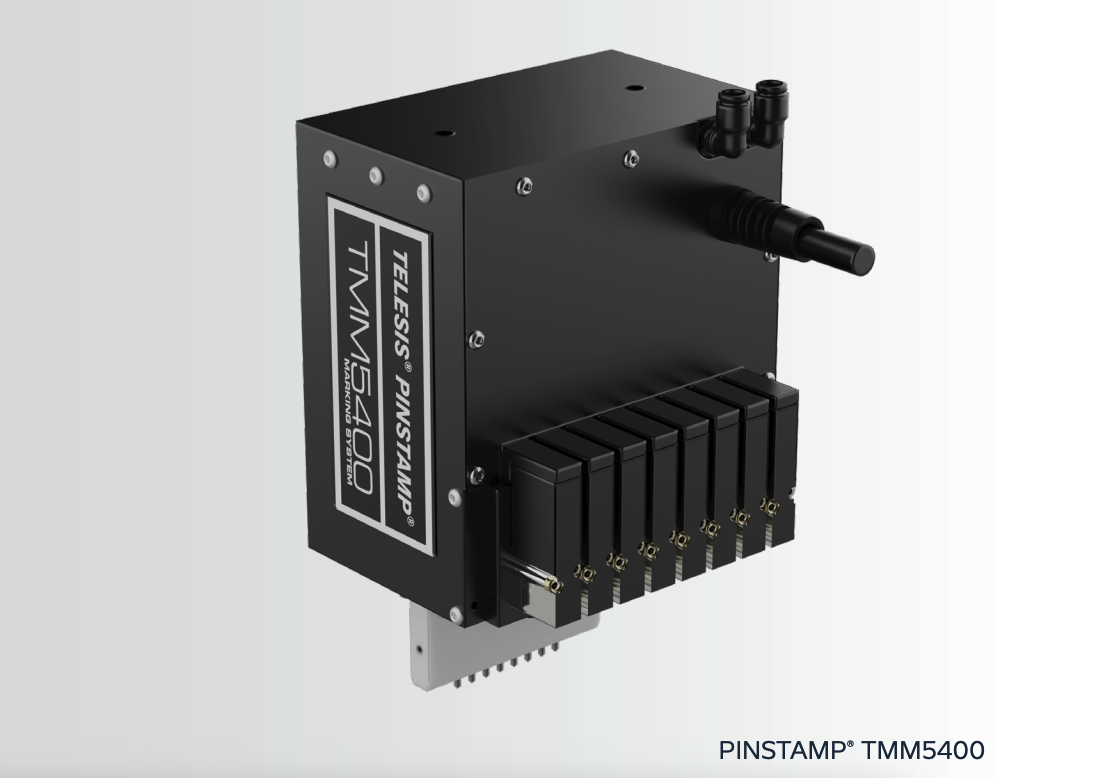

PINSTAMP® TMM5400 Dot Peen
The Telesis TMM5400, equipped with advanced multi-pin technology, is a high-speed, robust marking system built to meet the rigorous demands of the automotive and aerospace industries. Its multi-pin capability enables faster marking cycles and greater efficiency, producing clear, permanent marks on metals and other tough materials with ease. Ideal for high-volume production lines, the TMM5400 combines precision, durability, and versatility, ensuring dependable traceability and top-quality results with every mark.
Request a Quote Download Product Catalog- Multi-Pin Speed: Eight marking pins deliver faster cycle times and deeper marks, perfect for high-production.
- Versatile Marking: Permanently marks steel, aluminum, plastic, and more, with crisp, durable results.
- Precision Control: X/Y-traversing system with dual stepper motors ensures accurate, high-quality marks every time.
- Industrial Durability: Built for tough environments, with UL, CSA, CE, and RoHS compliance.
- Flexible Configurations: Choose 6mm or 12mm pin spacing to match your marking needs.
- Low Maintenance: Non-lubricated lightweight pin cartridges and a reliable pneumatic system keep downtime low.
- Marking Head Extension Cables
- Mounting Post
- System Computer
- Touch Screen Controller
- Various Marking Pins
Applications
Multi-pin Marking on Metal
Multi-pin Marking on Metal
2D QR Code on Metal
Specs
Head Dimensions
140 mm x 127 mm x 104 mm
Marking Area
13 mm x 36 mm
Material Compatibility
Soft plastics to hardened steel (up to RC60)
Marking Depth
0.001 – 0.018 in
0.03 – 0.34 mm
Connectivity
PLC, host computer interface
Controller(s)
Fixed Button (TMC470)
Merlin III w/ PC
The Fastest Dot Peen Marker
The Telesis TMM5400 is a powerful, high-speed marking system engineered to meet the demanding requirements of industries like automotive and aerospace. Featuring innovative multi-pin technology, it delivers faster marking cycles and enhanced efficiency, making it ideal for high-volume production environments. This advanced system is designed to produce deep, permanent marks on tough materials, such as metals, ensuring long-lasting visibility and reliability for part identification, traceability, and compliance.
Built to handle the rigors of industrial settings, the TMM5400’s robust construction guarantees durability even in the most challenging conditions, while its precision-engineered multi-pin capability offers flexibility for various marking applications. Whether it’s serial numbers, 2D codes, or complex graphics, the TMM5400 produces sharp, clear marks consistently and at impressive speeds. Its versatile design allows for easy integration into automated production lines, where it can enhance throughput and minimize downtime.
With user-friendly software and compatibility with Telesis’ trusted Merlin® software, the TMM5400 provides an intuitive interface for controlling marking parameters and customization, ensuring that each mark meets exact specifications. For manufacturers requiring high-speed, high-quality marking, the TMM5400 is a top-tier solution that combines the best in durability, precision, and efficiency, making it a smart investment for future-proof production.
With advanced motion control, the TMM5400 places each mark exactly where it’s needed, ensuring sharp, readable text, logos, and barcodes. It even adapts to curved and uneven surfaces, delivering consistent results every time. Choose from different pin configurations to get the perfect balance of speed and detail for your application.
Designed to withstand demanding industrial conditions, the TMM5400 works in a wide range of temperatures and integrates easily into your production line. Paired with the TMC470 controller, it offers user-friendly software, flexible setup options, and reliable performance day after day. When you need high-speed, highprecision marking, the TMM5400 is the tool you can count on.
Complete your System
Our PINSTAMP ® TMM5400 Dot Peen Laser pairs with the following Telesis enclosures, workstations, and accessories to provide you with a complete end-to-end marking system.
