PINSTAMP® TMP4750 Dot Peen

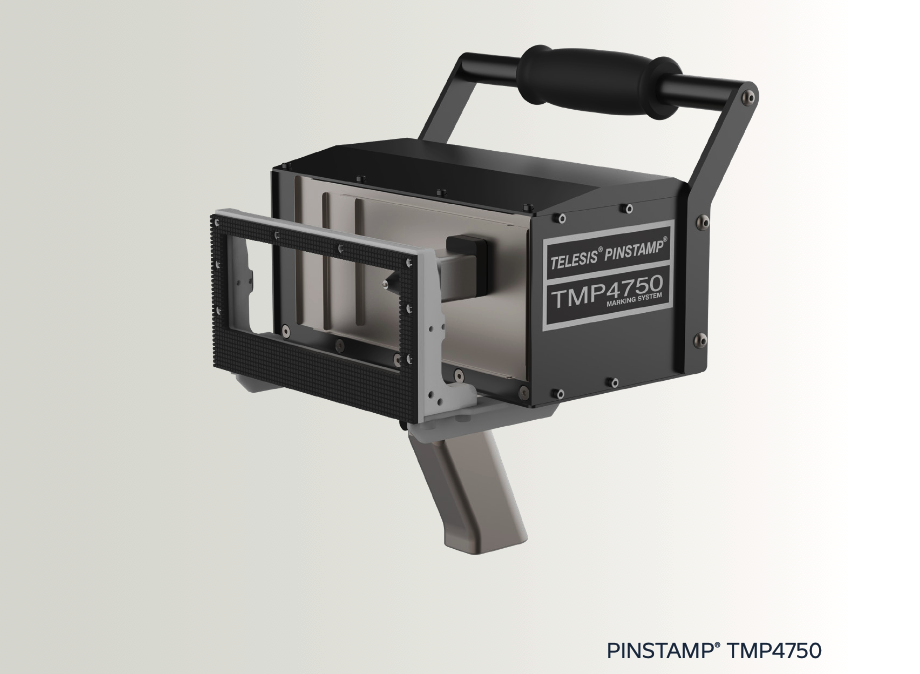

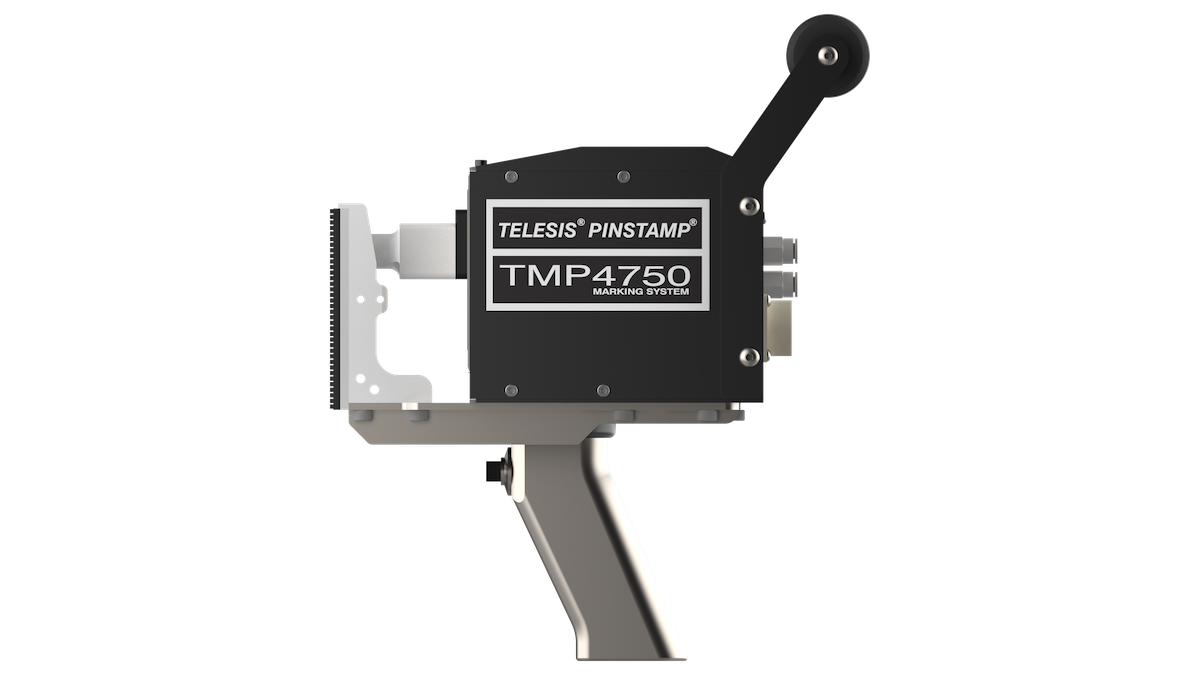

Handheld & Fixed Mount Dot Peen Marking Machine | TMP4750

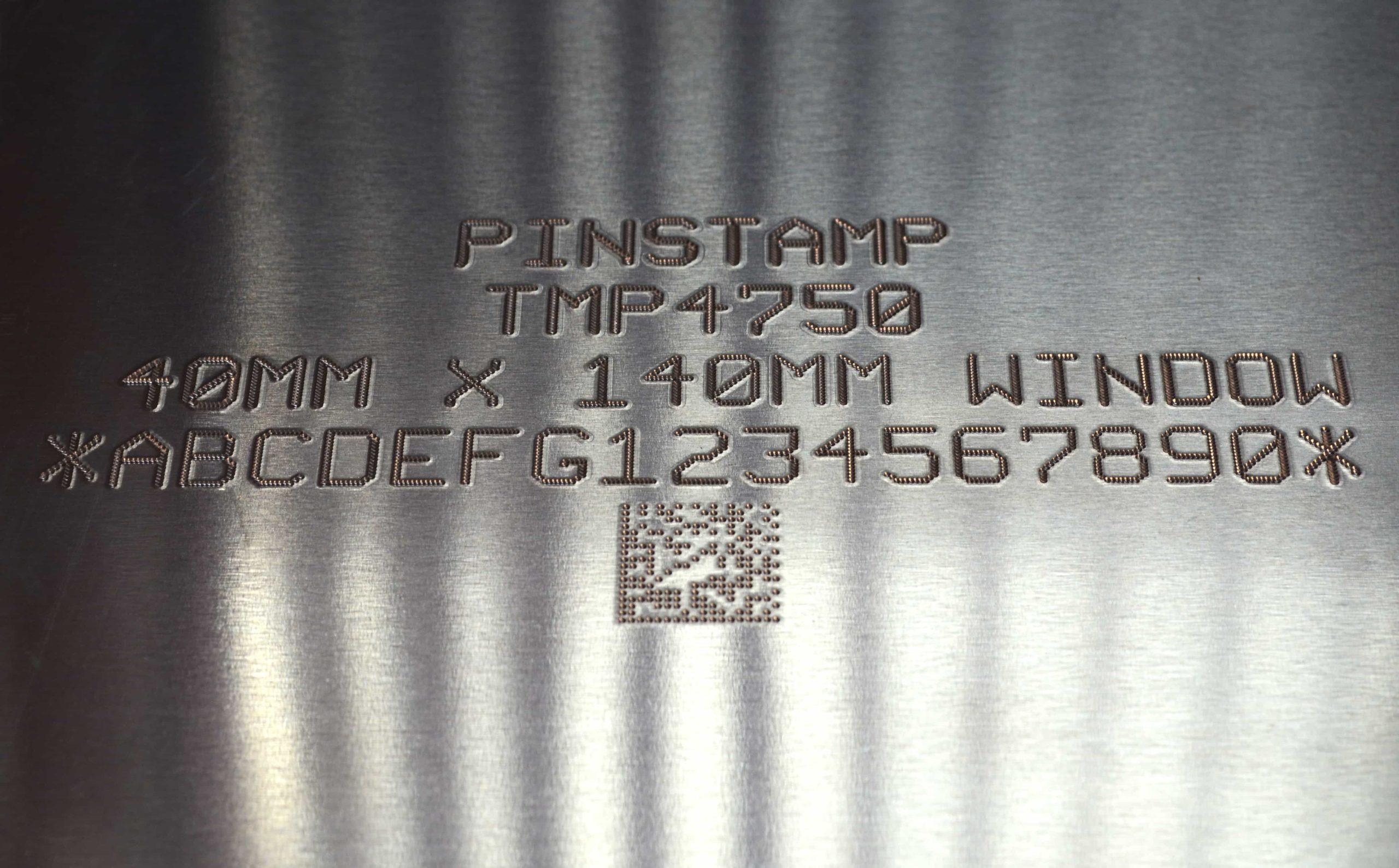

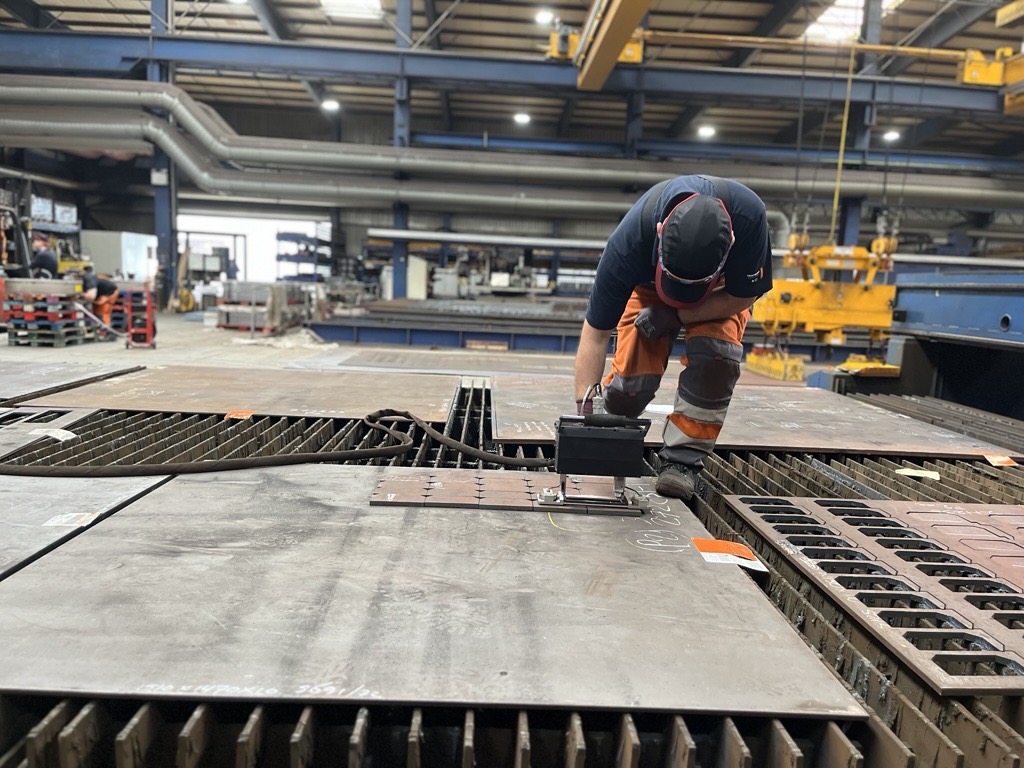

The TMP4750 is the latest addition to the PINSTAMP® family of marking systems. The versatile TMP4750 boasts a rack and pinion platform delivering the most precise dot placement in the industry; this equates to clean crisp 2D codes every time. The 140mm x 40mm marking window makes an excellent choice for VIN marking. Available in both handheld and fixed mount versions, this marker fits nearly every dot pin application.
- 5.5″ x 1.57″ (140mm x 40mm) marking window
- Rugged, low-maintenance rack and pinion driven X/Y platform

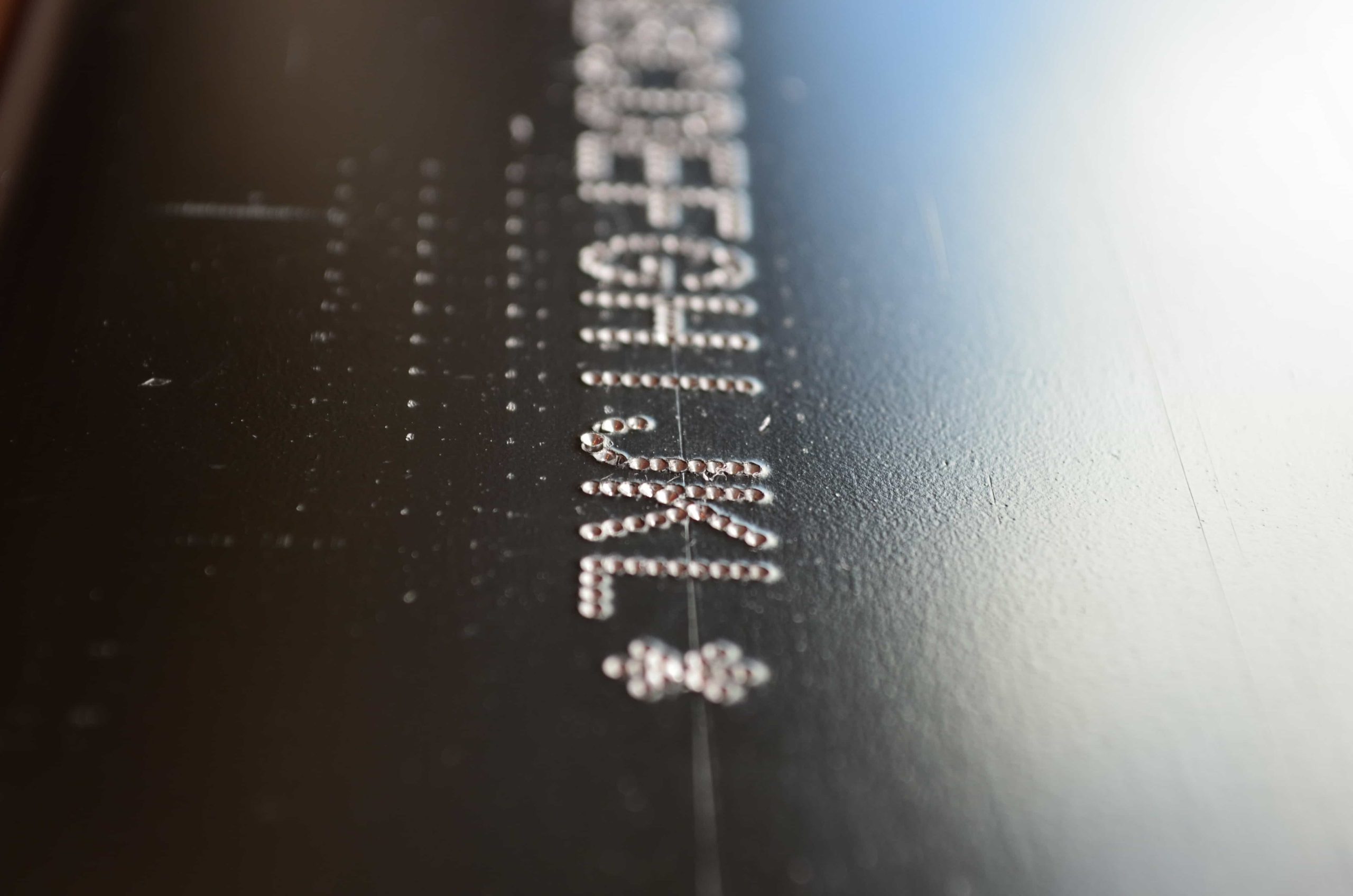

- Marks a wide range of materials from soft plastics to hardened steel — up to Rc60
- Double strike feature allows dot to be marked twice when additional depth is an issue
- Shutter assembly protects marking head from solid contaminants
- Available with 2 controllers:
- Self-Contained, state-of-the-art TMC470 controller features two serial ports, USB port, and Ethernet port.
- Self-Contained, state-of-the-art TMC600 controller features a durable touchscreen and an intuitive user interface, Merlin Touch software

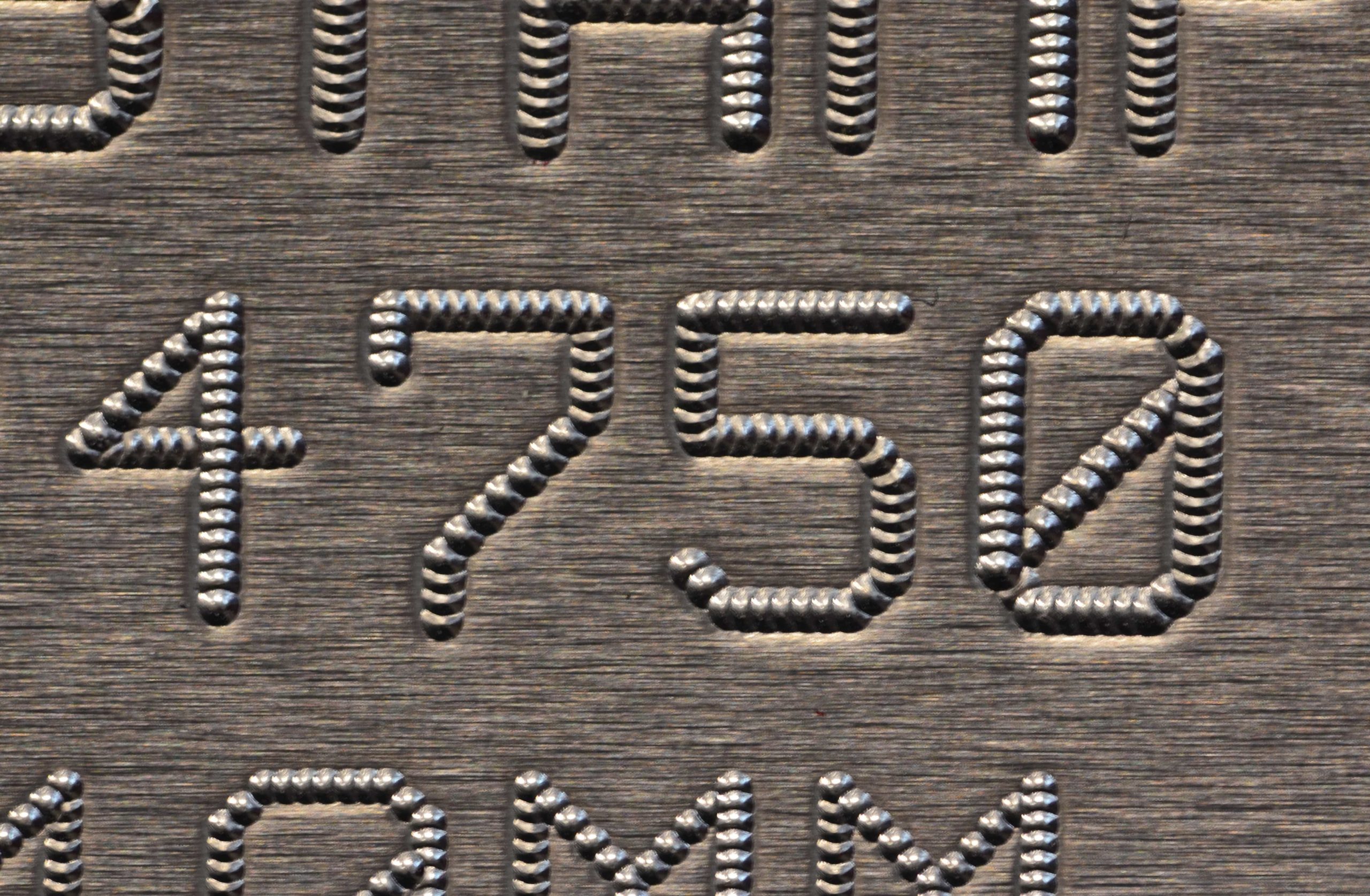

- Dot density up to 200 dots-per-inch (79 dots-per-centimeter)
- Choice of interchangeable marking pin types for depths from 0.001″ – 0.018″ (0.03mm – 0.45mm)
- Pin travel accommodates surface irregularities to 0.25″ (6mm)
- Automatically generates serial numbers, time, date and shift codes
- Easily interfaced to PLCs (Programmable Logic Controllers) and Host Computers
- Rotary fixtures for marking circumferences of cylindrical parts
- Marking head mounting post, including programmable Z-axis version
- Quick disconnect marking head mounting post for a handheld version
- Panel-mount and IP/NEMA Rated Controllers
- PC-Based Upgrade Utility available FREE from www.telesis.com for easy software upgrade
