With high-speed marking with up to four characters per second and a dot density of 200 dots-per-inch, the TMP4210 supports automated serial numbers, time, date, and shift codes. Rugged IP/NEMA-rated controllers provide long-term performance for modern manufacturing.
Lightweight and Compact Handheld Dot Peen
PINSTAMP® TMP4210 Dot Peen

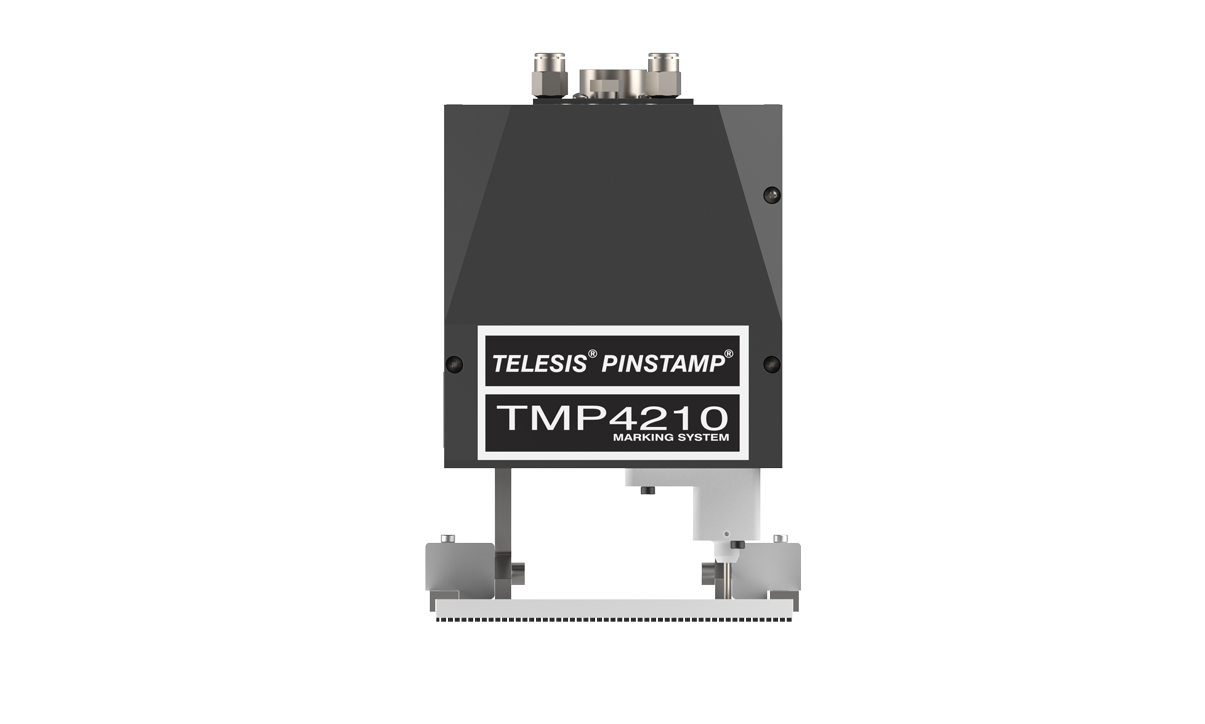

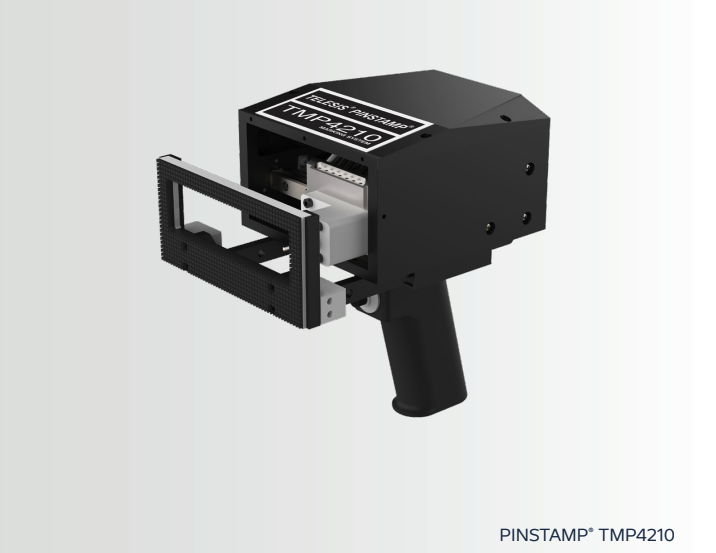

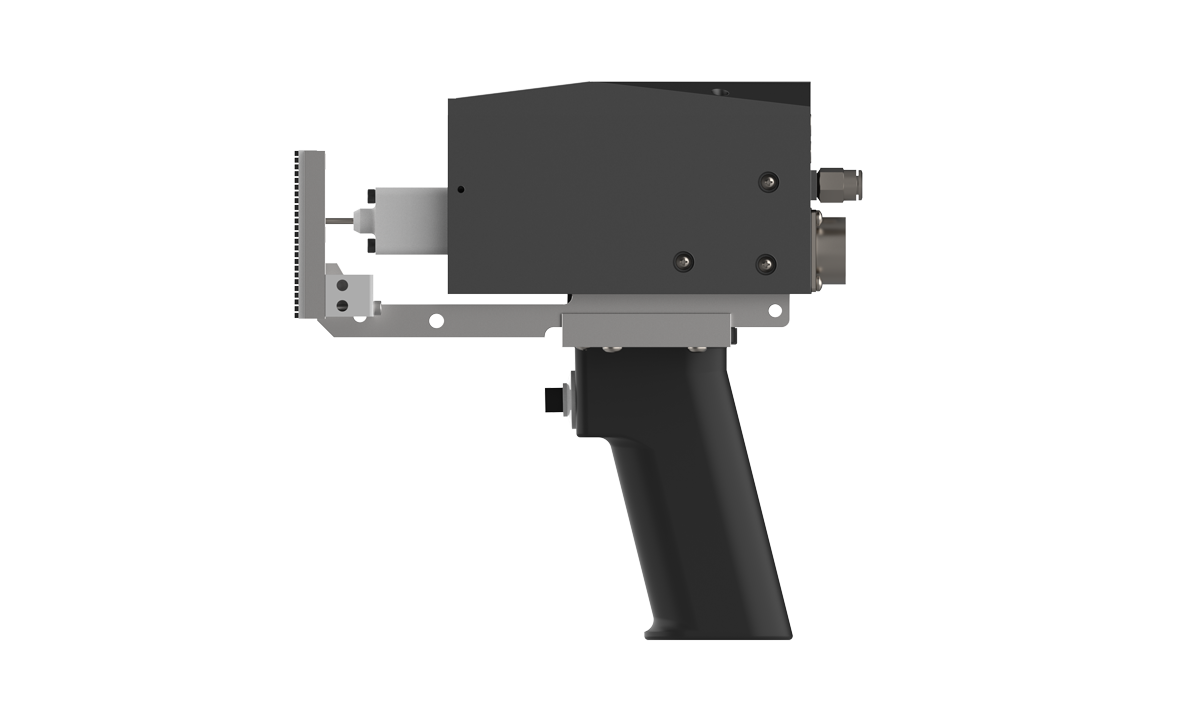

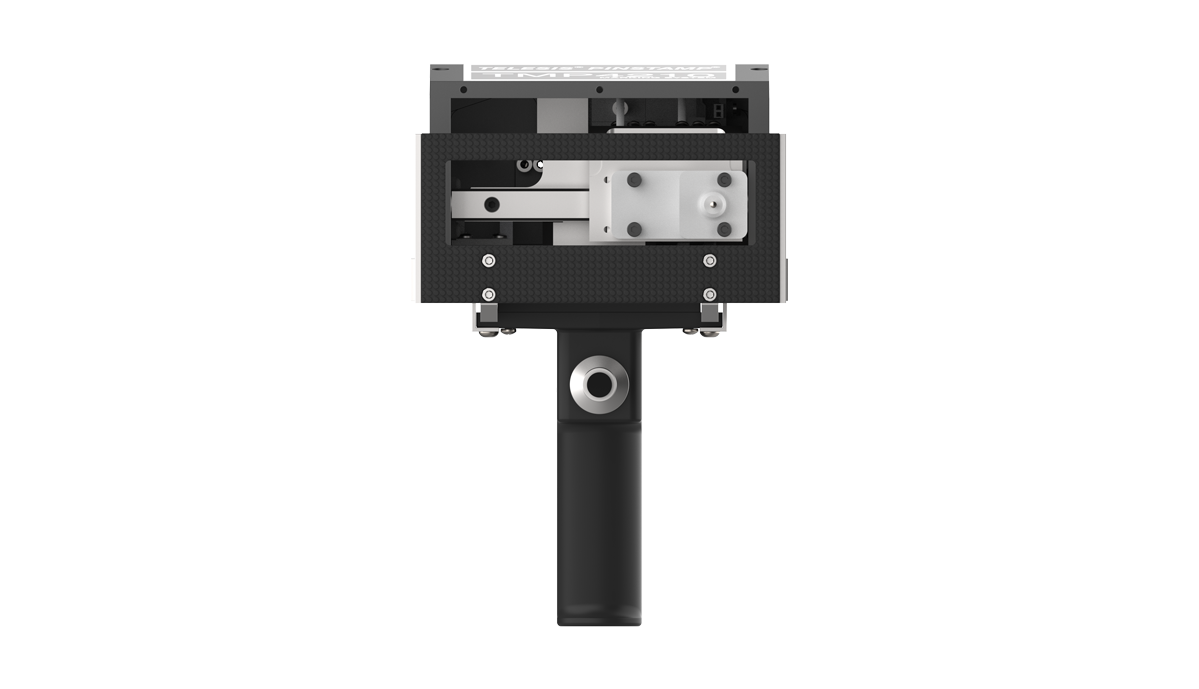

The Telesis TMP4210 is a lightweight, compact, and highly versatile handheld dot peen marking system, perfect for environments where space is limited, and mobility is key. Its ergonomic design allows for extended use without fatigue, while its durable construction ensures reliable performance in tough industrial conditions. This system is ideal for a wide range of applications and can seamlessly integrate with PLCs and host computers for automated serial numbers, time/date stamps, and shift codes. With additional options like quick-disconnect tool posts and multi-strike functionality, the TMP4210 offers flexibility and performance in a rugged, handheld package.
Request a Quote Download Product Catalog- Rugged, Low-Maintenance X/Y Platform: Built to endure tough conditions with minimal upkeep.
- Compact, Contaminant-Resistant Head: Perfect for production lines where reliability is critical.
- Material Versatility: Marks a wide range of materials, including plastics and hardened steel up to RC60.
- Easy Integration: Seamlessly interface with PLCs and host computers to streamline operations.
- Interchangeable Marking Pin Sizes: Adjust marking depth between 0.001″ to 0.018″ (0.03 mm to 0.34 mm)
- Floating Pin Technology: Handles surface irregularities for precise, consistent marking.
- Automated Marking Functions: Automatically generate serial numbers, time, date, and shift codes.
- Marking Head Extension Cables
- System Computer
- Touch Screen Controller
- Various Marking Pins
Applications

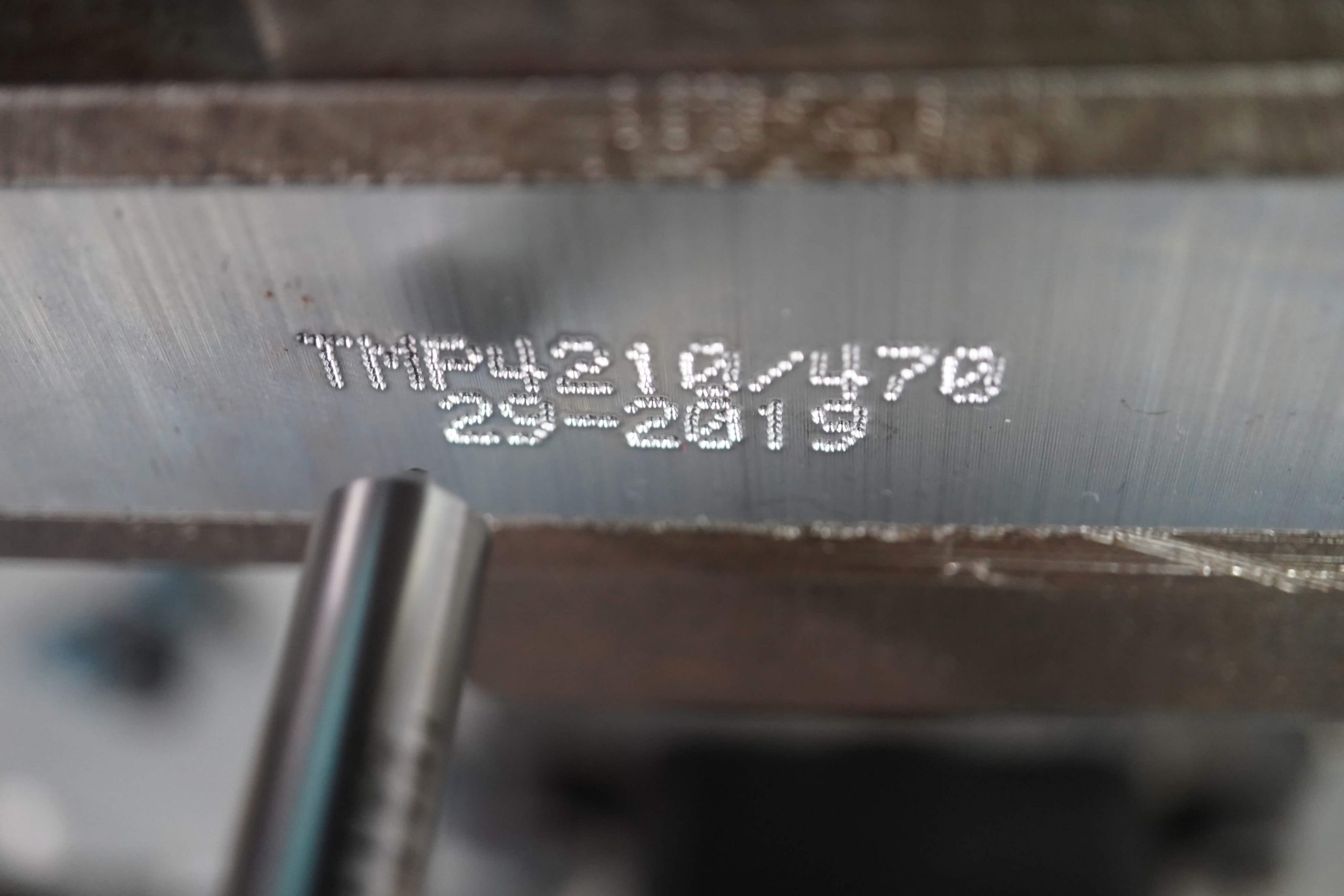

2D Letter & Number Markings on Metal
Logo Marking
Double Line Text on Metal
Specs
Head Dimensions
8.28" H x 5.55" W x 8.19" D
210.18 mm x 140.9 mm x 208 mm
Marking Area
2 in x 0.5 in
51 mm x 13 mm
Material Compatibility
Soft plastics to hardened steel (up to RC60)
Marking Depth
0.001 – 0.018 in
0.03 – 0.34 mm
Connectivity
PLC, host computer interface
Controller(s)
TMC470 (Fixed Button)
TMC520 (Touch Screen)
Merlin III w/ PC
Achieve Markings in Smaller Environments with the Compact, Handheld Telesis TMP4210
The Telesis TMP4210 is the ultimate solution for manufacturers needing a lightweight, portable dot peen marking system designed for flexibility and ease of use. Perfect for smaller environments where space is limited or movement is restricted, this compact handheld marker offers exceptional mobility without sacrificing performance. Its ergonomic, lightweight design allows operators to use the TMP4210 for extended periods without fatigue, making it ideal for applications that require high mobility and precision.
Despite its compact size, the TMP4210 delivers industrial-strength durability, engineered to withstand harsh manufacturing environments while maintaining reliable, high-quality marking. Whether you need to mark metals, plastics, or other materials, the TMP4210 provides deep, clear, and permanent marks at impressive speeds of up to four characters per second. With a dot density of up to 200 dots per inch (79 dots per centimeter), this system ensures your marks are crisp, clear, and compliant with industry standards.
From automotive and aerospace industries to metal fabrication and general manufacturing, the TMP4210 offers the perfect blend of precision, durability, and ease of use, ensuring that your marking needs are met with maximum efficiency and reliability.

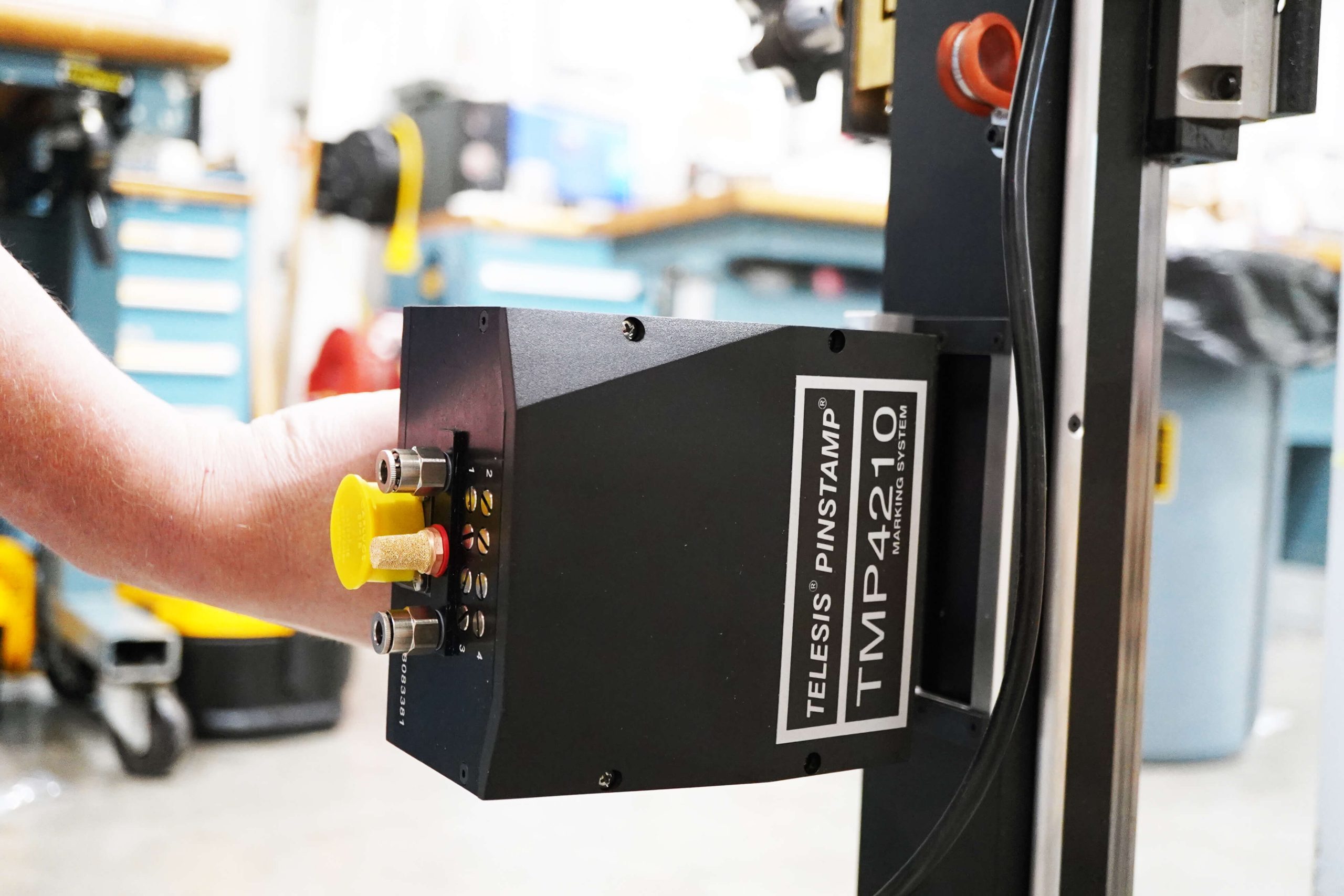

The Telesis TMP4210 is perfect for smaller environments where space and movement are restricted. Its lightweight construction allows operators to comfortably handle the marker for extended periods, making it ideal for portable, handheld marking. Despite its compact size, it delivers powerful performance in demanding industrial settings.
Designed for maximum flexibility, the TMP4210 functions both as a portable handheld unit and as a stationary marker with a quick-disconnect tool post. It easily adapts to various applications, from marking individual parts to high-volume production lines. With multi-strike capability and multiple pin options, it ensures precise, durable marks on a wide range of materials.
The TMP4210 offers a wide range of customizable marking pin options, allowing for greater control over mark depth and appearance. Interchangeable pins enable you to easily adapt the system to suit different materials and marking requirements, with pin sizes ranging from .001 in to .018 in (0.03 mm to 0.34 mm).
Versatility is a key feature of the TMP4210—it can be used as a portable, handheld marking system or integrated into automated production lines. It automatically generates serial numbers, time/date stamps, and shift codes, ensuring accurate, traceable marks every time. The TMP4210 easily interfaces with PLCs and host computers, providing seamless integration into your existing systems and streamlining your production processes.
Additional features include a quick-disconnect tool post for fast and easy setup, multi-strike capability for increased efficiency, and IP/NEMA-rated controllers for added protection in challenging environments. With free software upgrades and customizable options, the TMP4210 is a reliable, future-proof marking solution designed to grow with your business.
Complete your System
Our PINSTAMP ® TMP4210 Dot Peen Laser pairs with the following Telesis enclosures, workstations, and accessories to provide you with a complete end-to-end marking system.
