The BenchMark® 320 is a fully electric system, eliminating the need for compressed air and reducing maintenance costs. Integrated with Merlin® software, it offers a simple, user-friendly interface—an efficient, affordable solution for growing operations.
Affordable Dot Peen Solution with Large Marking Area

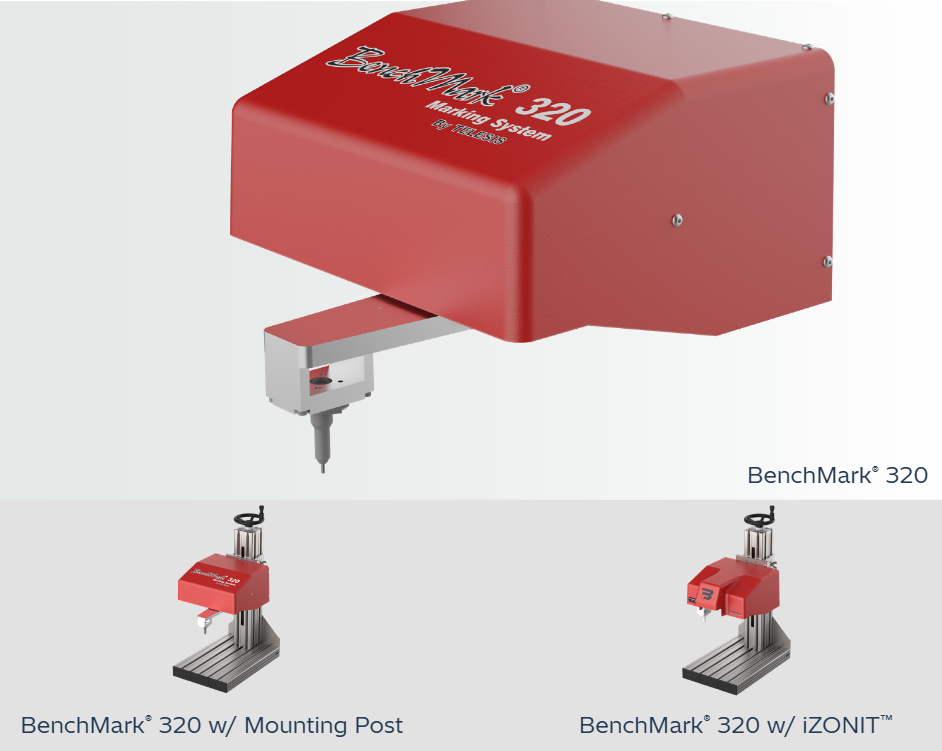

BenchMark320®
The Telesis BenchMark® 320 is a robust, entry-level dot peen marking system designed for reliable performance and ease of use in small to medium-volume applications. Ideal for marking data plates, large parts, and complex geometries, it provides precise, high-quality markings that stand the test of time. Built with a fully electric design, the BenchMark® 320 eliminates the need for compressed air, offering a cost-effective and environmentally friendly solution for a variety of industries.
With a spacious 4.0 x 6.0 inch (101 x 152 mm) marking area, the BenchMark® 320 handles a range of marking needs, from simple serial numbers and logos to detailed text and graphics. This system’s ergonomic, compact design allows for easy part loading and positioning, making it an excellent choice for bench-top applications and standalone marking stations.
Great for:
- Data Plate Marking
- Large Parts
- Parts with Complex Geometry
- Rugged, Low-Maintenance X/Y Platform: Built to endure tough conditions with minimal upkeep.
- Compact, Contaminant-Resistant Head: Perfect for production lines where reliability is critical.
- Material Versatility: Marks a wide range of materials, including plastics and hardened steel up to RC60.
- Easy Integration: Seamlessly interface with PLCs and host computers to streamline operations.
- Interchangeable Marking Pin Sizes: Adjust marking depth between 0.001″ to 0.018″ (0.03 mm to 0.34 mm)
- Automated Marking Functions: Automatically generate serial numbers, time, date, and shift codes.
- Bar Code Scanner
- Foot Switch
- Marking Head Extension Cables

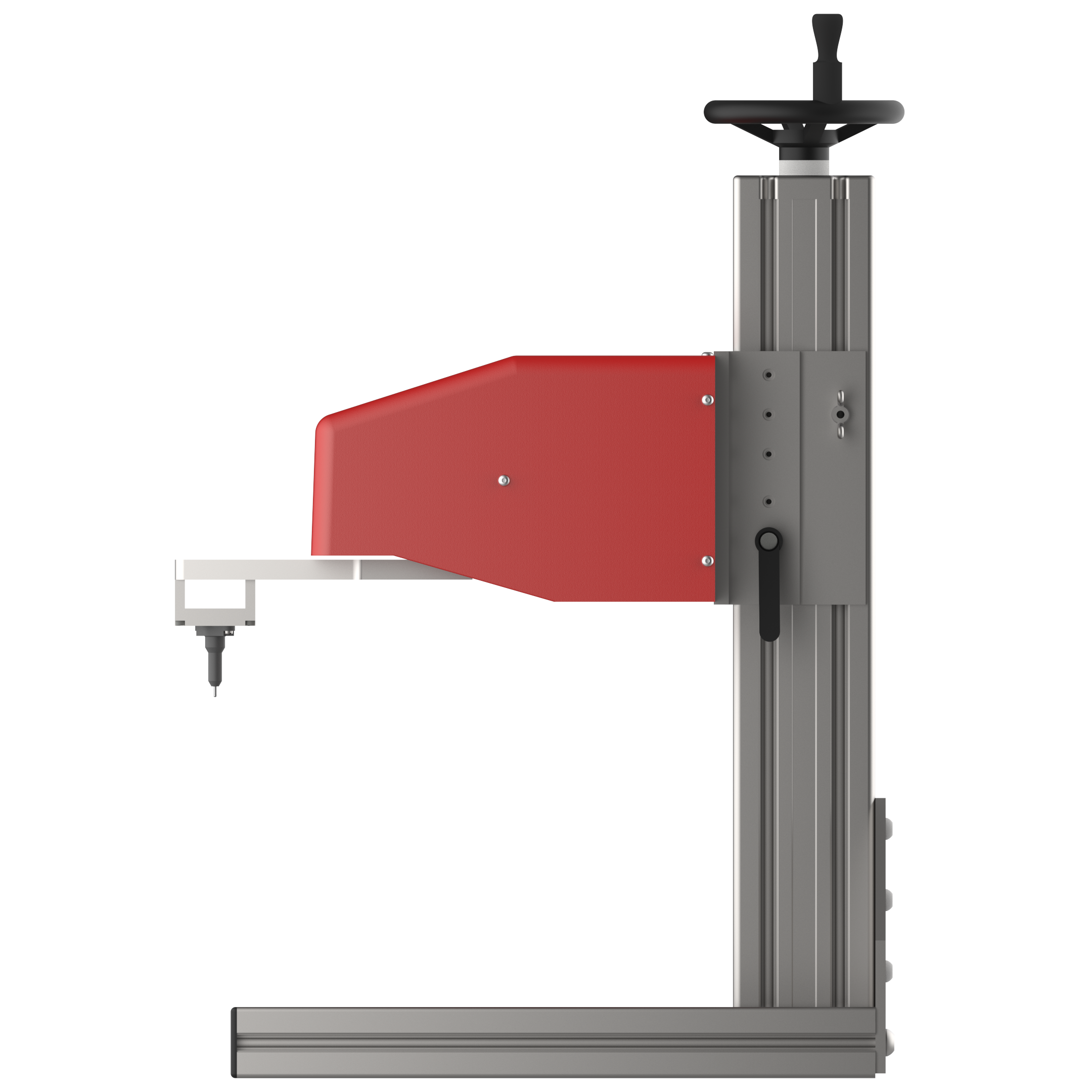

- Mounting Post
- Oil-Resistant Fabric Boot
- Push Button Station
- Rotary Fixture
- System Computer
- Touch Screen Controller
- Various Marking Pins
Applications
2D Letters & Numbers on Metal
2D QR Code on Metal
2D Serial Numbers on Metal
2D Letters and Numbers on PVC
Specs
Head Dimensions
8.41" H x 11.28" W x 13.32" D
213.7 mm x 286.5 mm x 338.3 mm
Marking Window
4.0 in x 6.0 in
101 mm x 152.4 mm
Material Compatibility
Soft plastics to hardened steel (up to RC60)
Marking Depth
0.001 – 0.018 in
0.03 – 0.34 mm
Connectivity
PLC, host computer interface
Controller(s)
BM470 (Fixed Button)
TMC520 (Touch Screen)
Merlin III w/ PC

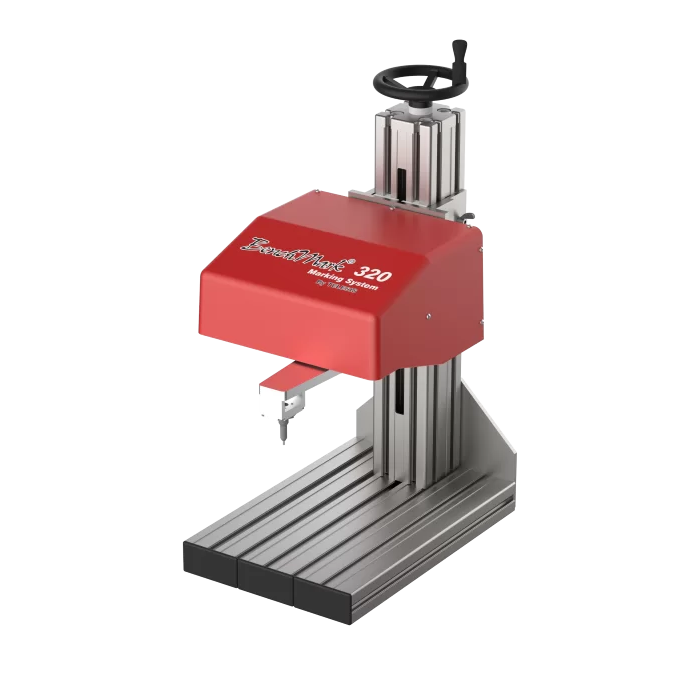

Benchtop Dot Peen Marking Machine
The BenchMark® 320 offers flexible control options with two controller choices: the reliable fixed-button BM470 or the intuitive touchscreen TMC520. These controllers provide a streamlined user experience, enabling operators to achieve precise, consistent results with minimal setup. Compatible with Telesis’ Merlin® software, it allows easy customization of marking layouts and settings, ensuring versatile operation across multiple applications and materials.
Engineered for durability, the BenchMark® 320 is built to withstand challenging environments, ensuring you get dependable, professional-grade marking with every use. For businesses seeking an accessible, high-performing marking solution, the BenchMark® 320 delivers exceptional value and reliability, helping you make your mark with confidence.
The BenchMark® 320 is an affordable yet powerful dot peen marking system, ideal for low-volume operations that still require high precision and reliability. Its plug-and-play setup ensures quick and effortless installation, while its compact and ergonomic design makes part loading and positioning easy. Built for durability and consistent performance, the BenchMark® 320 is perfect for businesses looking for a cost-effective entry into permanent marking.
With a 100 mm x 150 mm (4.0 in x 6.0 in) marking area, the BenchMark® 320 can engrave text, graphics, serial numbers, logos, 2D matrix codes, and QR codes
on a variety of materials, including metals and most plastics. It is available in both vision and non-vision models, allowing for precise marking placement and real-time quality verification. Whether used as a standalone unit or integrated into a production line, this marker adapts to diverse manufacturing needs with ease and efficiency.
Complete your System
Our BenchMark320® Dot Peen Laser pairs with the following Telesis enclosures, workstations, and accessories to provide you with a complete end-to-end marking system.
