The BenchMark® 200 delivers unmatched value. Ideal for low- to mid-volume applications, it offers permanent, tamper-proof marks for traceability and compliance. Compact, affordable, and built for durability, it’s the smart choice for industrial marking needs.
Affordable Dot Peen Solution
BenchMark200®

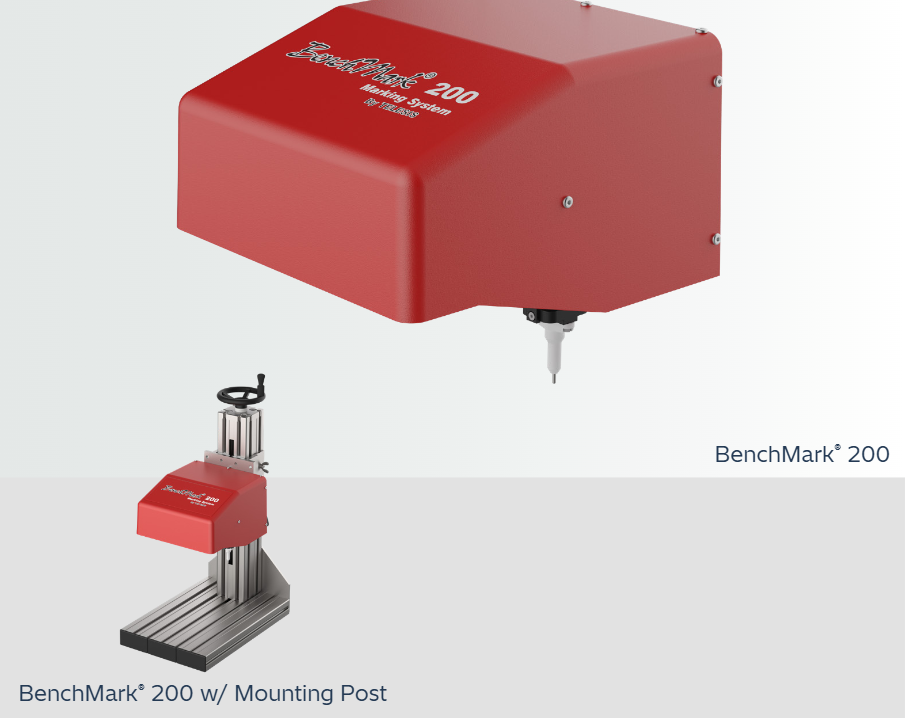

The Telesis BenchMark® 200 is a compact, entry-level dot peen marking system, perfect for small-volume, benchtop applications. With a 4.0 x 4.0 inch marking area, it’s ideal for data plates, complex geometry, and large parts. Fast and easy to use, with depths from 0.001 to 0.010 inches, offering flexible control with fixed button or touchscreen options. Affordable and reliable, the BenchMark® 200 is a great solution for businesses needing efficient, permanent marking.
Great for:
- Data Plate Marking
- Workshop Applications
- Small Volume Operations
- Rugged, Low-Maintenance X/Y Platform: Built to endure tough conditions with minimal upkeep.
- Compact, Contaminant-Resistant Head: Perfect for production lines where reliability is critical.
- Material Versatility: Marks a wide range of materials, including plastics and hardened steel up to RC60.
- Easy Integration: Seamlessly interface with PLCs and host computers to streamline operations.
- Interchangeable Marking Pin Sizes: Adjust marking depth between 0.001″ to 0.018″ (0.03 mm to 0.34 mm)
- Automated Marking Functions: Automatically generate serial numbers, time, date, and shift codes.
- Bar Code Scanner
- Foot Switch
- Marking Head Extension Cables
- Mounting Post
- Oil-Resistant Fabric Boot
- Push Button Station
- Rotary Fixture
- System Computer
- Touch Screen Controller
- Various Marking Pins
Applications
2D QR Code on Metal
2D Serial Numbers on Metal
2D Letters and Numbers on PVC
Specs

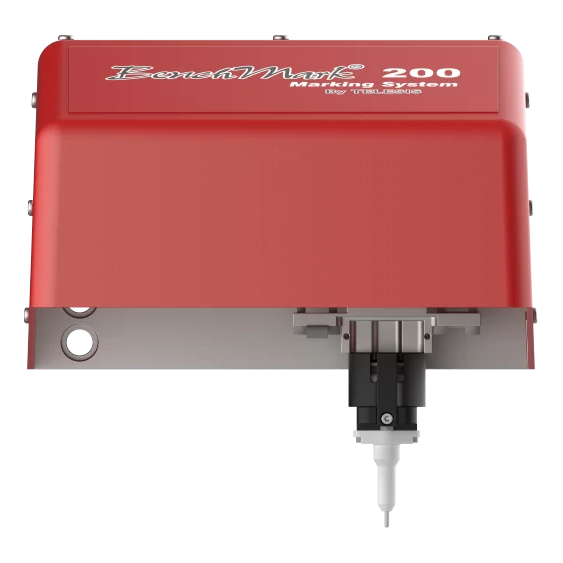

Head Dimensions
8.92" H x 9.45" W x 10.05" D
226.6 mm x 240.1 mm x 255.3 mm
Marking Area
4.0 in x 4.0 in
101 mm x 101 mm
Material Compatibility
Soft plastics to hardened steel (up to RC60)
Marking Depth
0.001 – 0.010 in
0.03 – 0.25 mm
Connectivity
PLC, host computer interface
Controller(s)
BM470 (Fixed Button)
TMC520 (Touch Screen)
Compact, Capable, and Cost-Effective

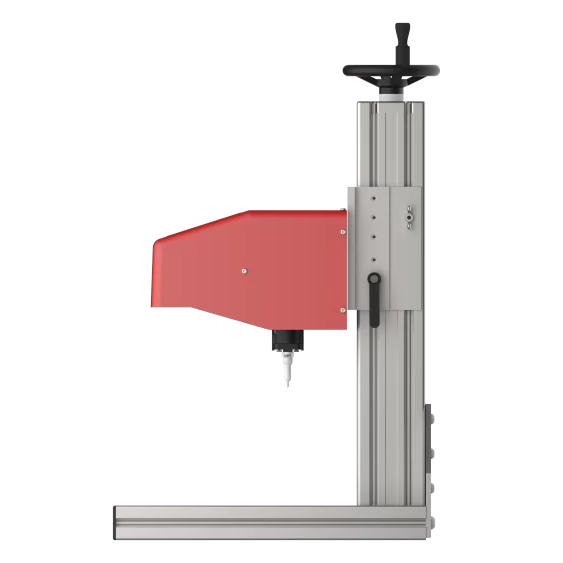

The Telesis BenchMark® 200 is an entry-level electric dot peen marking system designed to deliver durable, precise markings for small-volume and workshop applications. This compact, benchtop-friendly machine features a sturdy extruded aluminum mounting post and base, making it a robust choice for standalone marking needs. With a 4.0 x 4.0 inch (101 x 101 mm) marking window, the BenchMark® 200 efficiently marks data plates, large parts, and complex geometries with ease. Operating at depths ranging from 0.001 to 0.010 inches (0.03 to 0.25 mm), it ensures fast, clear identification for your parts.
The BenchMark® 200 offers versatile control options, with both a fixed button controller (BM470) and an intuitive touchscreen model (TMC520) available, making setup and operation simple. Compatible with Telesis’ Merlin® software, it provides enhanced control and customization options for marking text, logos, and 2D codes. This entry-level system is a reliable, budget-friendly solution for companies looking to integrate quality, permanent marking into their production lines without sacrificing efficiency or quality.
The BenchMark® 200 delivers durable, permanent marking in a compact system. Designed for easy integration, this dot peen marker ensures precise marking on metals and plastics. Its rugged build makes it ideal for manufacturers and workshops needing reliable, high-quality marks without taking up valuable space.
With an intuitive interface and durable marking head, the BenchMark® 200
is simple to operate and designed for longevity. It withstands demanding environments while requiring minimal maintenance. Whether marking serial numbers, part IDs, or logos, this system provides deep, precise, and legible results every time.
Complete your System
Our BenchMark200® Dot Peen Laser pairs with the following Telesis enclosures, workstations, and accessories to provide you with a complete end-to-end marking system.
Need Help Finding the Right Permanent Marking Solution?
Before you make your purchase, let our team of marking experts guide you to the best option suitable for your unique application. Send a sample of your material to the Telesis Applications Lab, and we will recommend the most efficient and cost-effective piece of equipment you’ll need to make a beautiful and successful permanent mark, FREE OF CHARGE!
